Ignition Switch: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE IGNITION SWITCH ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 2 screws, then remove the ignition switch.

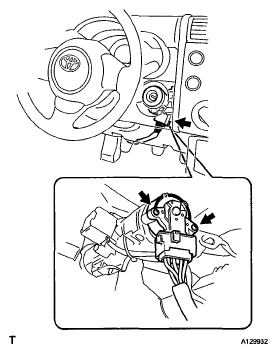

      Fig 1: Identifying Ignition Switch Screws
      G05109970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
