Oil Pump: Components

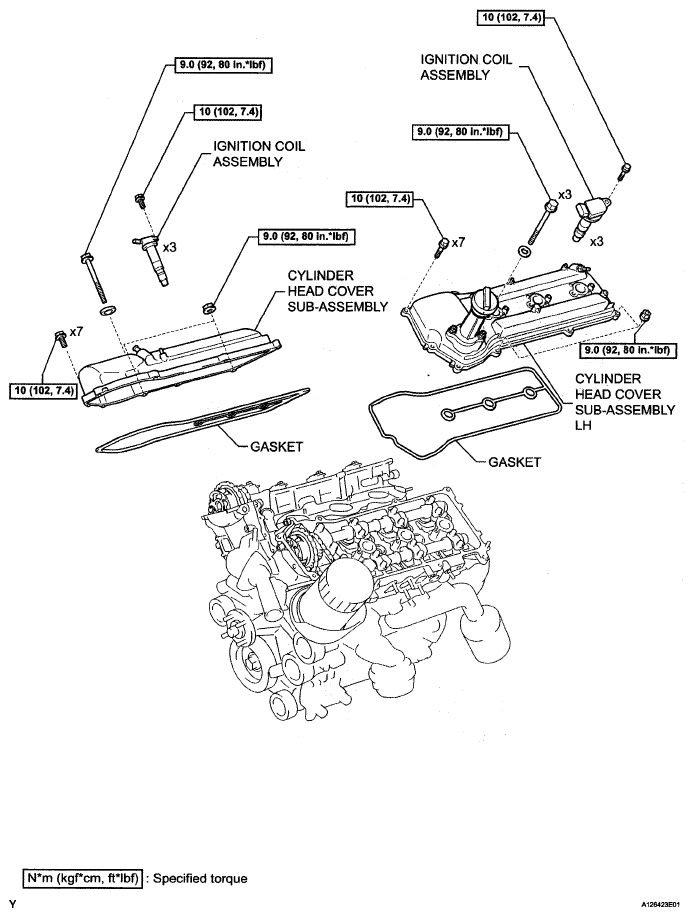

Fig 1: Timing Chain Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

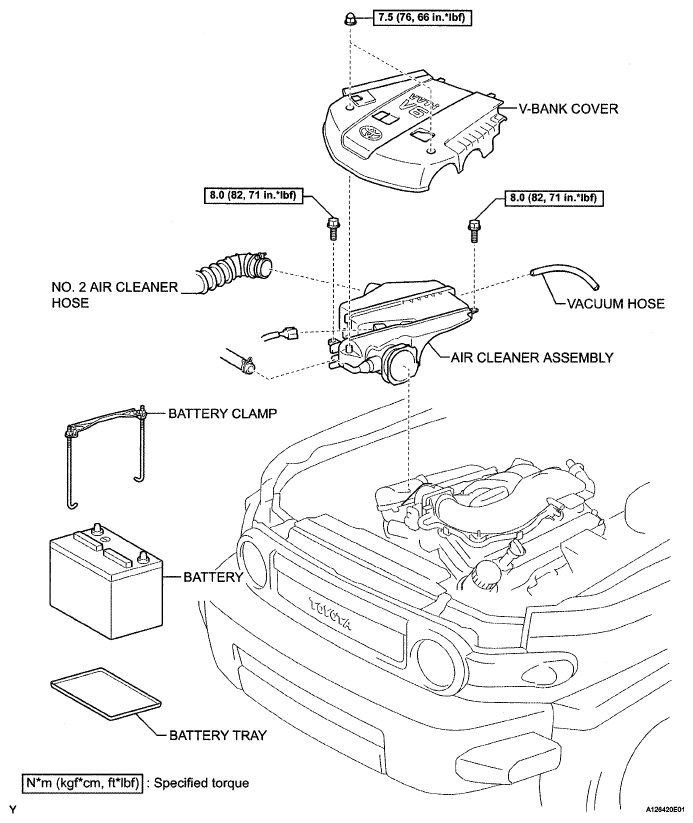

Fig 2: Identifying Oil Pump Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

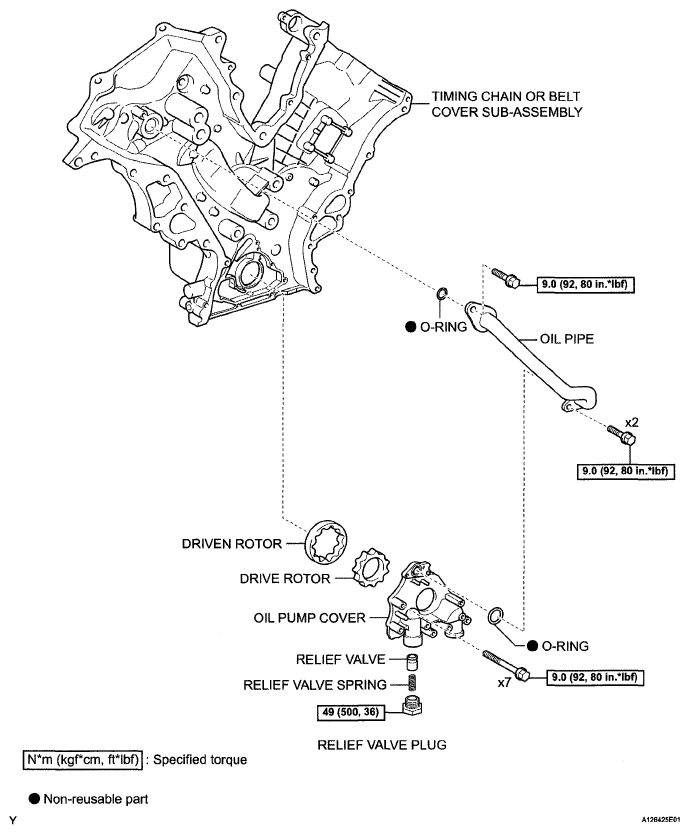

Fig 3: Timing Chain Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

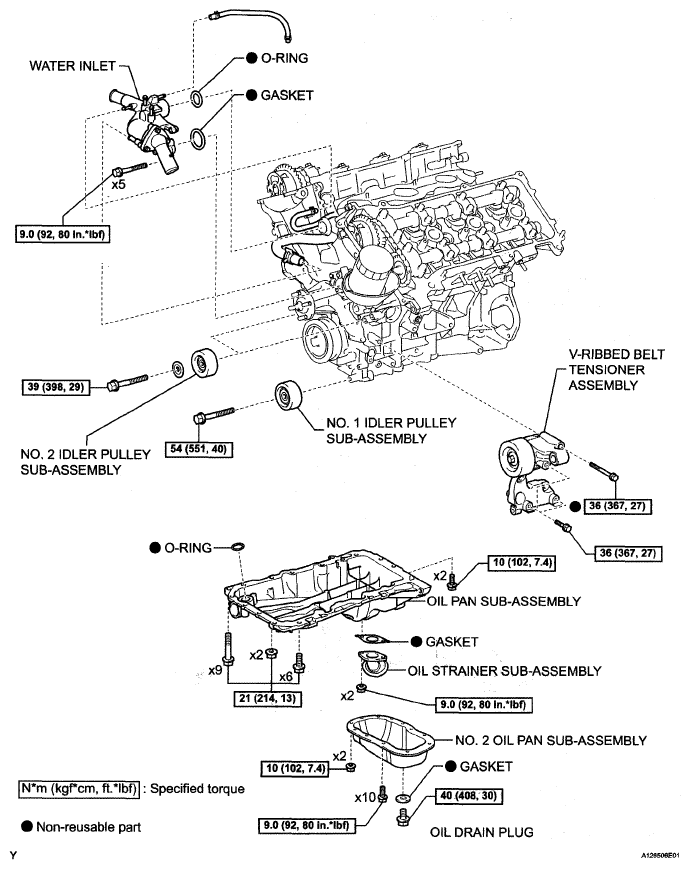

Fig 4: Identifying Oil Pump Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Timing Chain Replacement Components With Torque Specifications (4 Of 5)

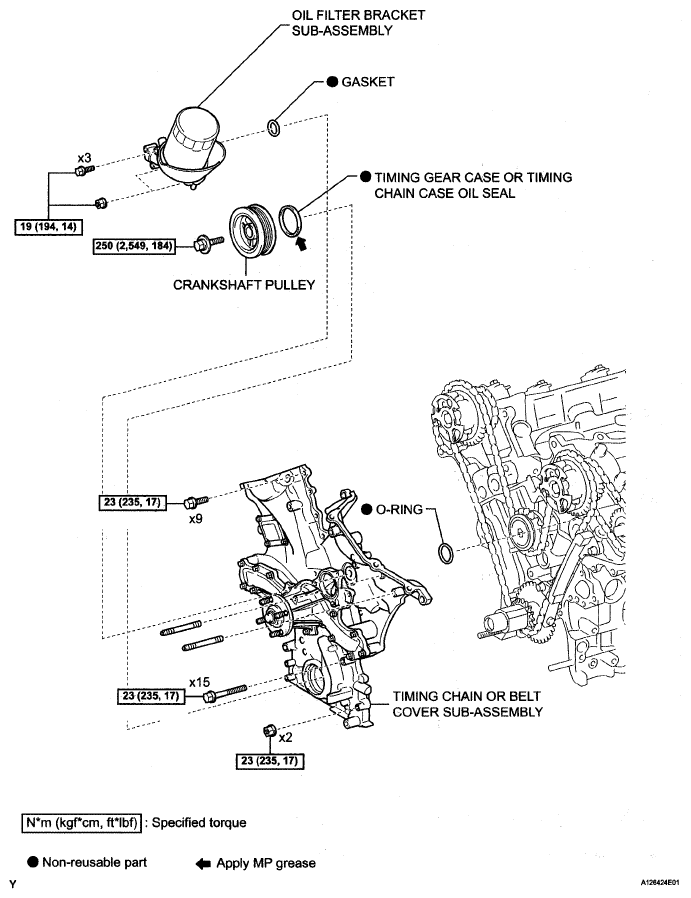

Fig 6: Identifying Oil Pump Replacement Components With Torque Specifications (6 Of 7)

Fig 7: Identifying Oil Pump Replacement Components With Torque Specifications (7 Of 7)
