System Diagram

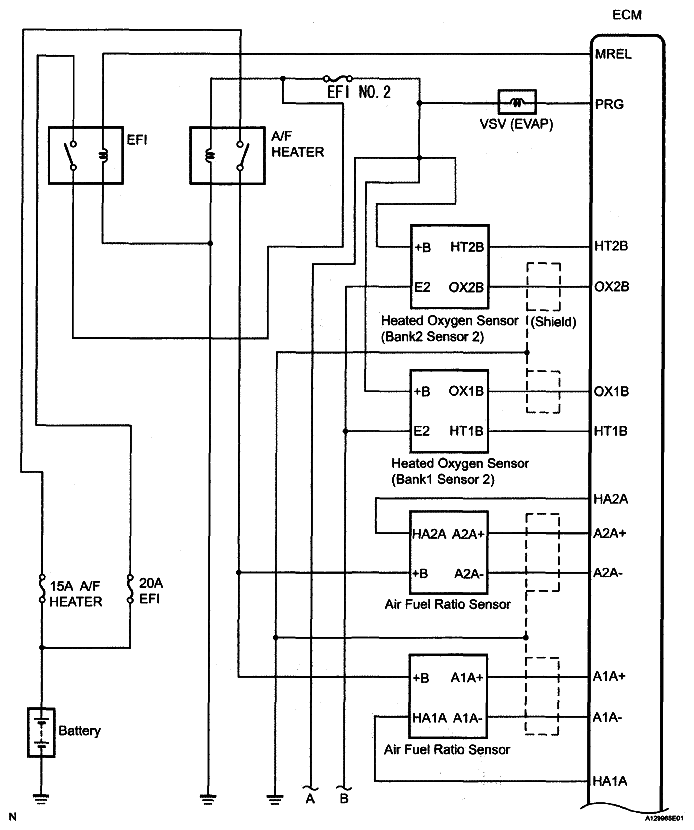

Fig 1: Identifying Emission Control System Diagram (1 Of 2)
G05109730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

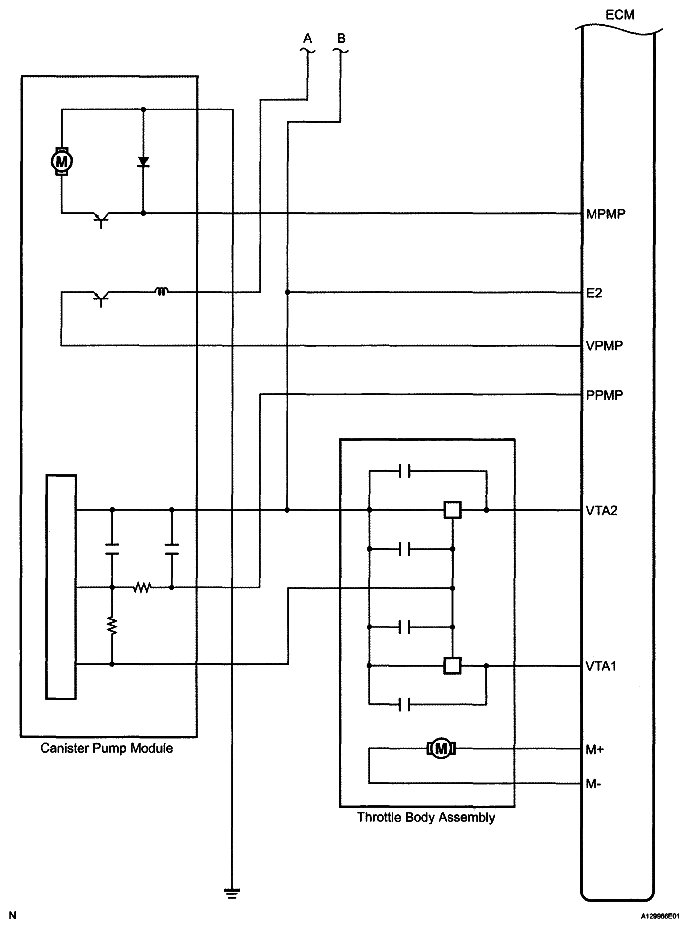

Fig 2: Identifying Emission Control System Diagram (2 Of 2)
G05109731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
