Combination Meter: Components

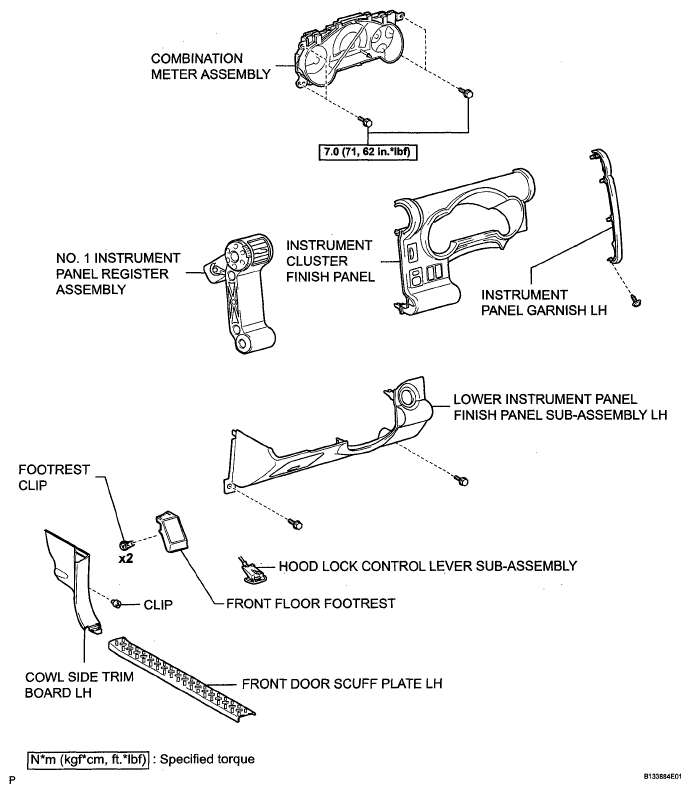

Fig 1: Combination Meter Replacement Components With Torque Specifications (1 Of 2)
G05580988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

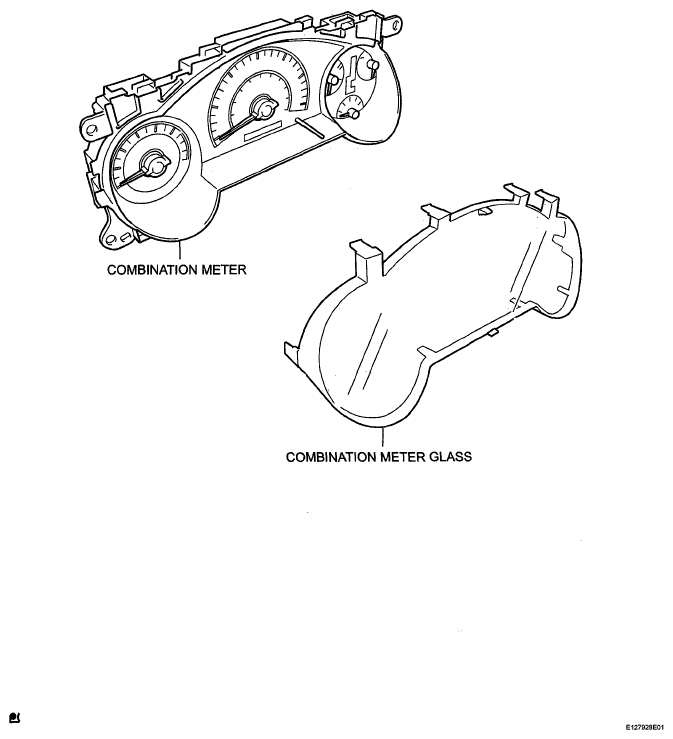

Fig 2: Identifying Combination Meter Components (2 Of 2)
G05580989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
