Rear Differential Lock: Notes

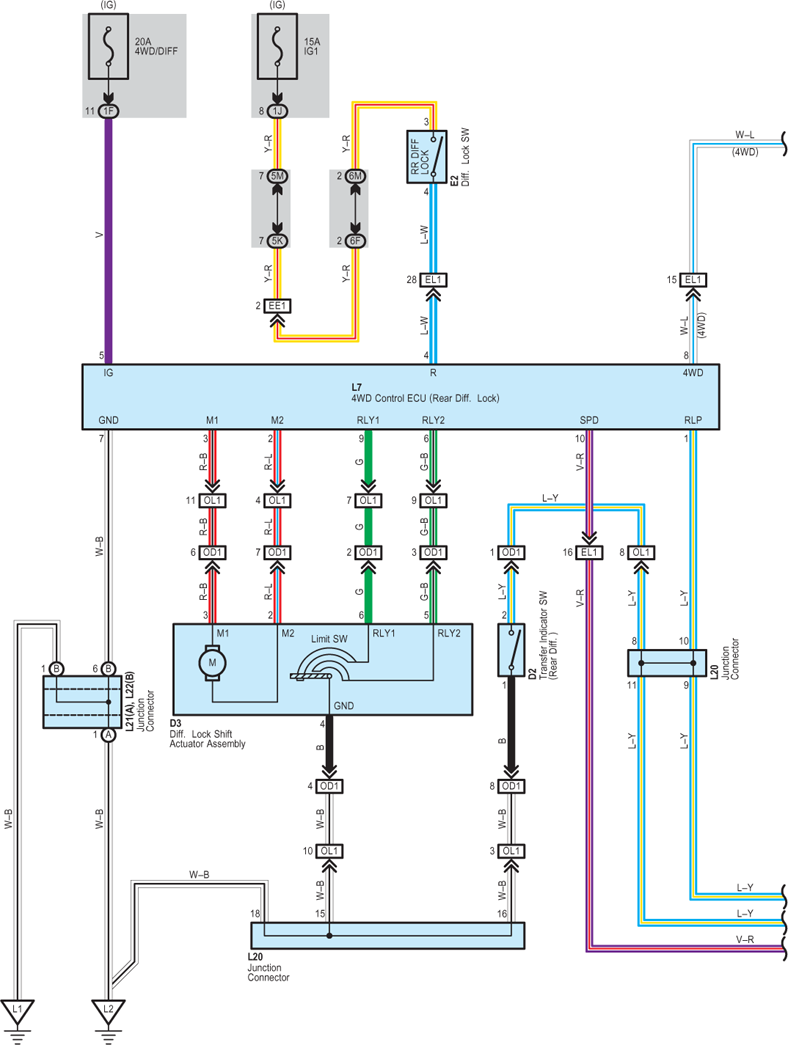

Fig 1: Rear Differential Lock - Circuit Diagram (1 Of 2)
G07606631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

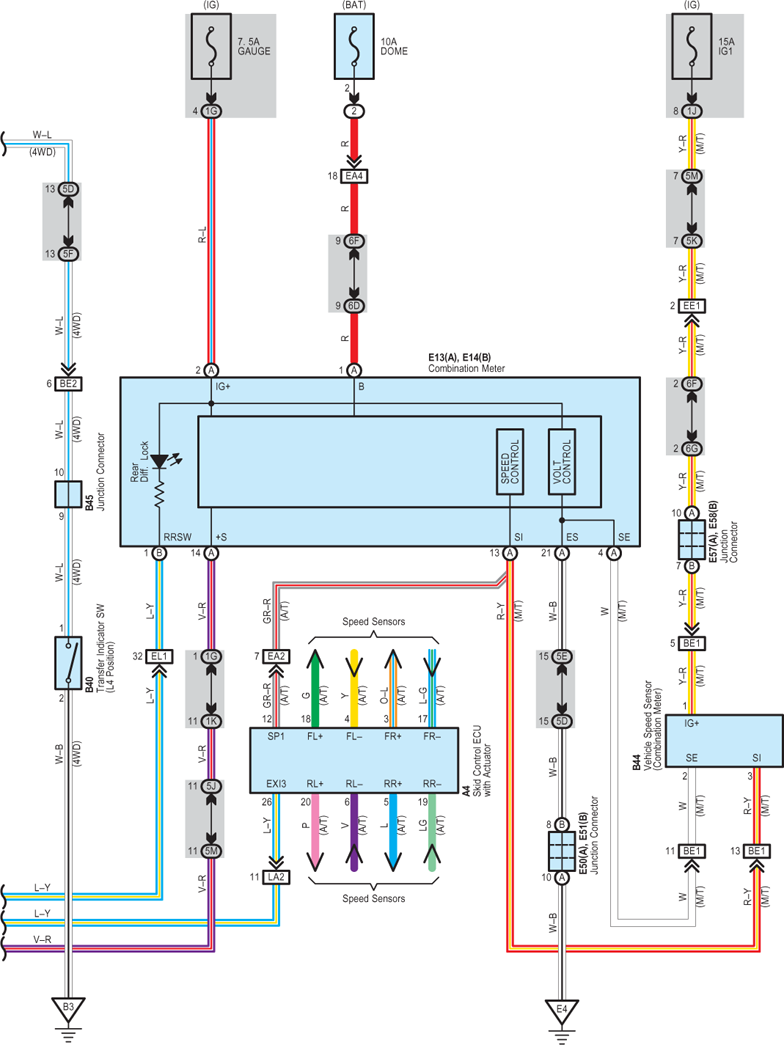

Fig 2: Rear Differential Lock - Circuit Diagram (2 Of 2)
G07606632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
