Multiplex Communication System (CAN): Notes

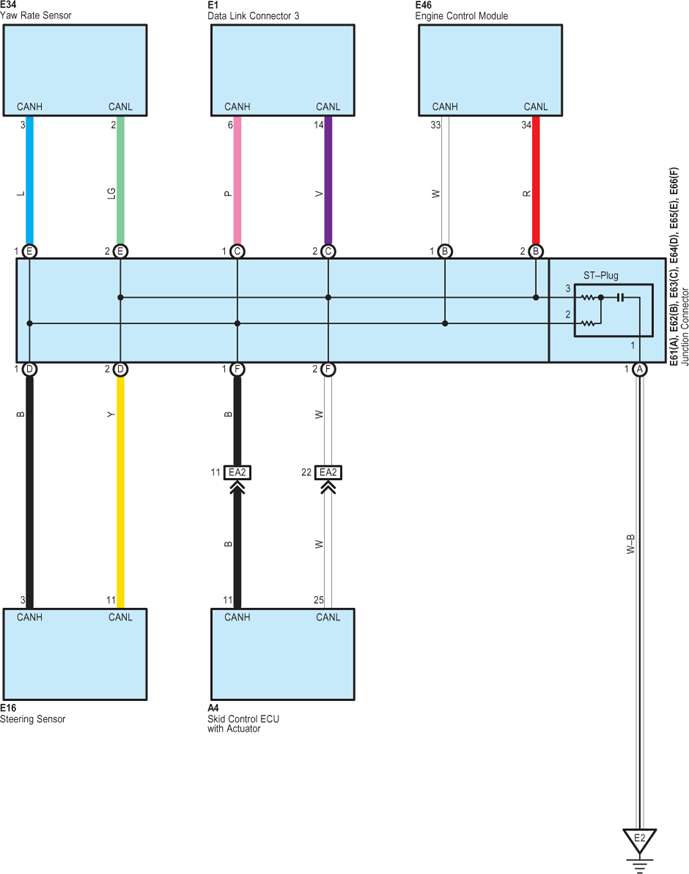

Fig 1: Multiplex Communication System (CAN) - Circuit Diagram

G07606557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
