Accessory Meter: Notes

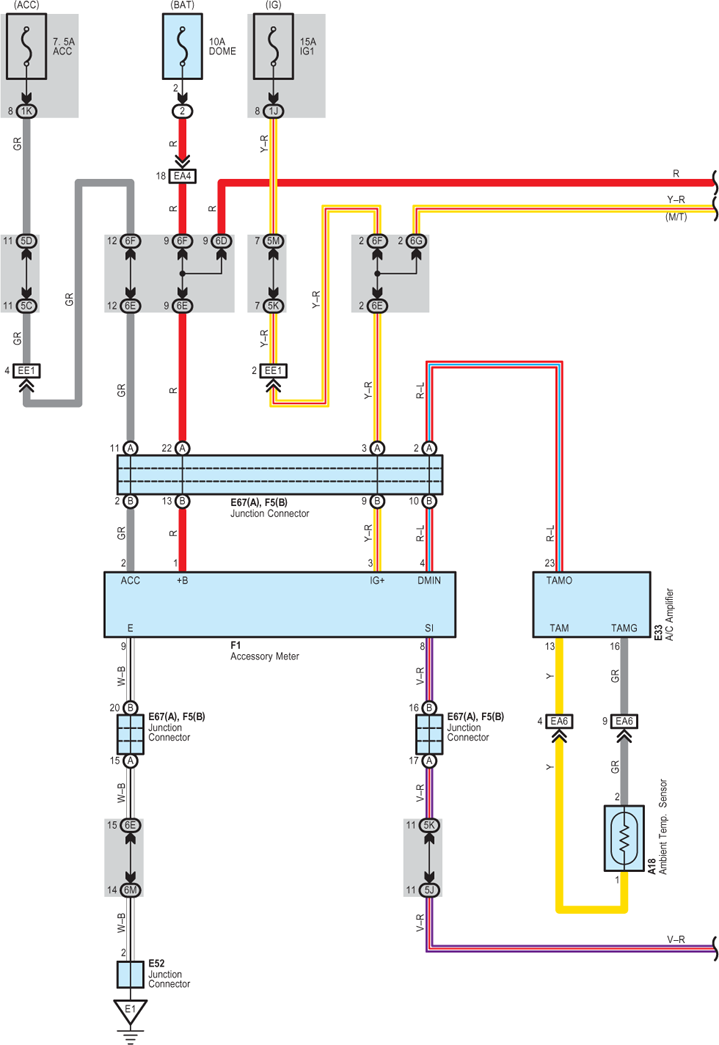

Fig 1: Accessory Meter - Circuit Diagram (1 Of 2)
G07606651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Accessory Meter - Circuit Diagram (2 Of 2)
G07606652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
