Back Door Glass: Components

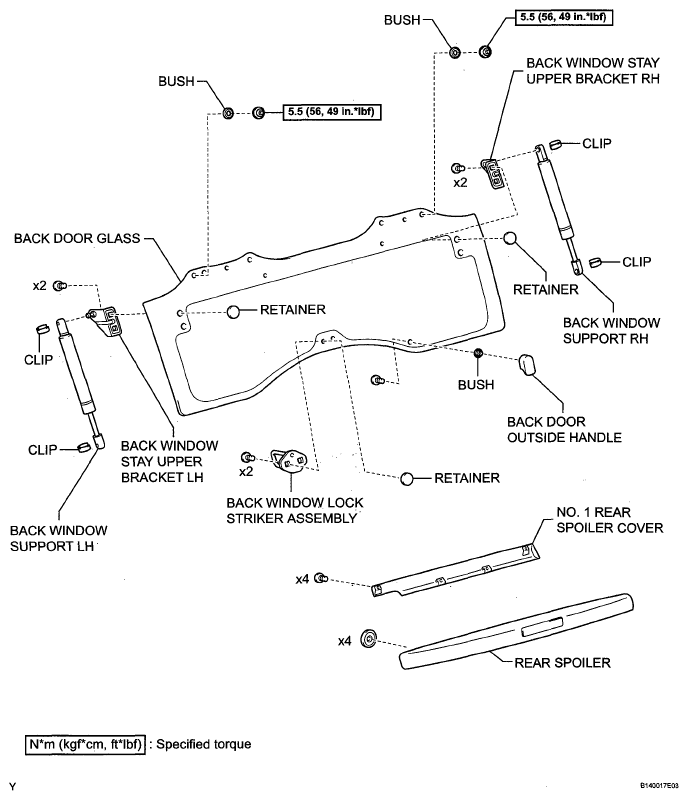

Fig 1: Identifying Back Door Glass Replacement Components With Torque Specifications

G05581234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
