Outer Mirror Switch: Inspection

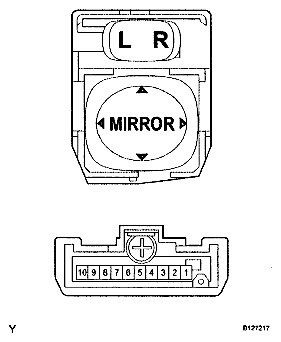

- INSPECT OUTER MIRROR SWITCH
- Check the resistance.
- Select L on the left/right adjustment switch.
- Using an ohmmeter, measure the' resistance and check the results in accordance with the value(s) in OUTER MIRROR SWITCH (L ON LEFT/RIGHT ADJUSTMENT SWITCH) .
Standard Resistance
OUTER MIRROR SWITCH (L ON LEFT/RIGHT ADJUSTMENT SWITCH)Tester Connection Condition Specified Condition 4 (VL) - 7 (E)
4 (VL) - 8 (B)
5 (HL) - 7 (E)
5 (HL) - 8 (B)
6 (M+) - 7 (E)
6 (M+) - 8 (B)OFF 10 kΩ or higher 4 (VL) - 8 (B)
6 (M+) - 7 (E)UP Below 1 Ω 4 (VL) - 7 (E)
6 (M+) - 8 (B)DOWN Below 1 Ω 5 (HL) - 8 (B)
6 (M+) - 7 (E)LEFT Below 1 Ω 5 (HL) - 7 (E)
6 (M+) - 8 (B)RIGHT Below 1 Ω If the result is not as specified, replace the outer mirror switch.
- Select R on the left/right adjustment switch.
- Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in OUTER MIRROR SWITCH (R ON LEFT/RIGHT ADJUSTMENT SWITCH) .
Standard Resistance
OUTER MIRROR SWITCH (R ON LEFT/RIGHT ADJUSTMENT SWITCH)Tester Connection Condition Specified Condition 2 (HR) - 7 (E)
4 (HR) - 8 (B)
3 (VR) - 7 (E)
3 (VR) - 8 (B)
6 (M+) - 7 (E)
6 (M+) - 8 (B)OFF 10 kΩ or higher 3 (VR) - 8 (B)
6 (M+) - 7 (E)UP Below 1 Ω 3 (VR) - 7 (E)
6 (M+) - 8 (B)DOWN Below 1 Ω 2 (HR) - 8 (B)
6 (M+) - 7 (E)LEFT Below 1 Ω 2 (HR) - 7 (E)
6 (M+) - 8 (B)RIGHT Below 1 Ω If the result is not as specified, replace the outer mirror switch.
- Check the resistance.
