Cruise Control Main Switch: Components

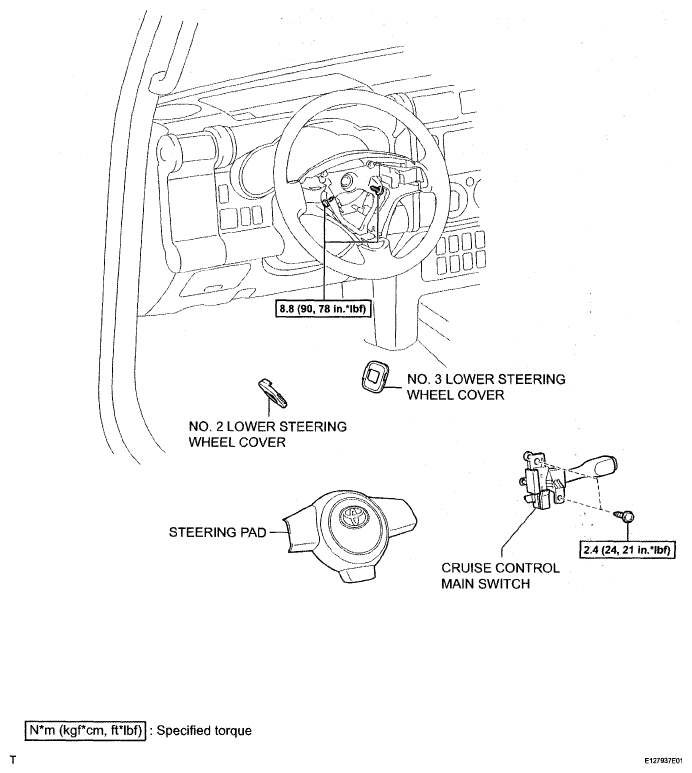

Fig 1: Cruise Control Main Switch Replacement Components With Torque Specifications

G05113489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
