Child Restraint Seat Tether Anchor: Components

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

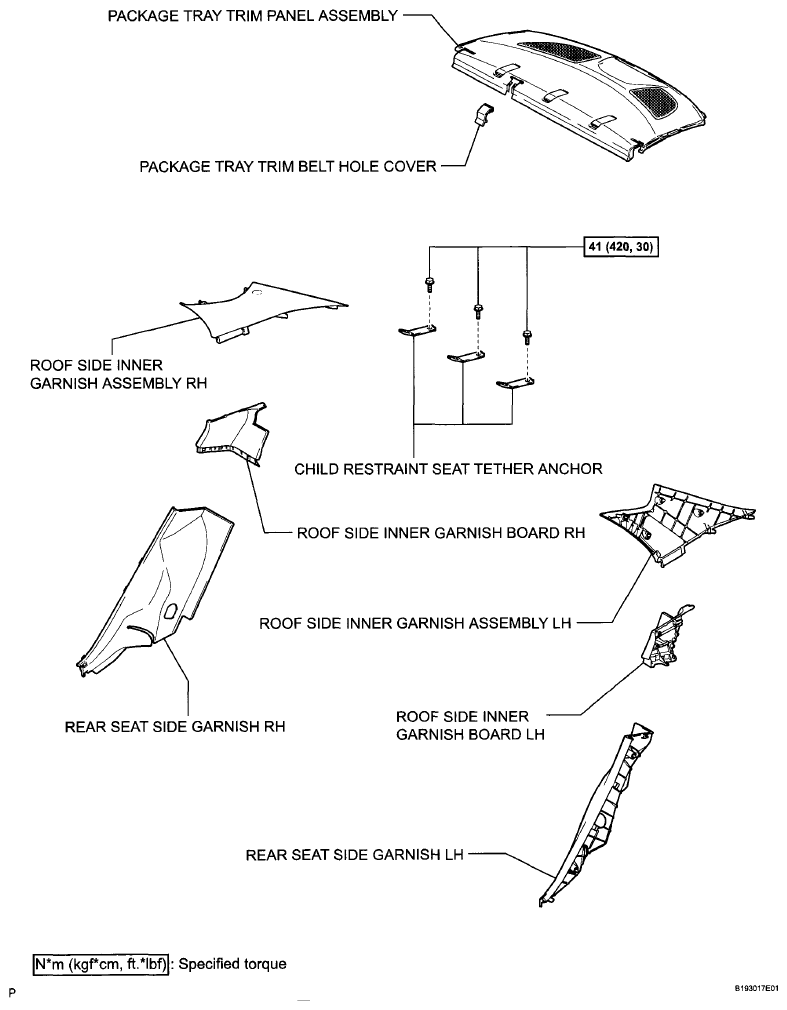

Fig 2: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
