Heating / Air Conditioning: Condenser: Removal

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM  (See REPLACEMENT )
  2. REMOVE RADIATOR GRILLE PROTECTOR  (See REMOVAL )
  3. REMOVE NO. 4 ENGINE UNDER COVER (for 2AZ-FE)  (See REMOVAL )
  4. REMOVE FRONT BUMPER ASSEMBLY  (See REMOVAL )
  5. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the bolt and disconnect the discharge hose sub-assembly from the condenser.
    2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

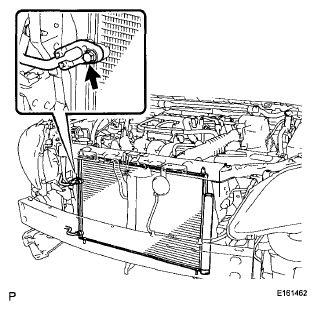

      Fig 1: Locating Discharge Hose Sub-Assembly And Bolt
      G06015539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT AIR CONDITIONING TUBE ASSEMBLY
    1. Remove the bolt and disconnect the air conditioning tube assembly from the condenser.
    2. Remove the O-ring from the air conditioning tube assembly.
      NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
  7. REMOVE UPPER RADIATOR SUPPORT (for 2ZR-FE)  (See REMOVAL )
  8. REMOVE UPPER RADIATOR SUPPORT (for 2AZ-FE)  (See REMOVAL )
  9. DISCONNECT HOOD LOCK ASSEMBLY  (See REMOVAL )

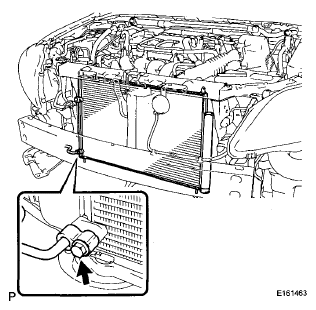

    Fig 2: Locating Air Conditioning Tube Assembly And Bolt
    G06015540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. SEPARATE WATER BY-PASS HOSE (for 2ZR-FE)  (See REMOVAL )
  11. SEPARATE WATER BY-PASS HOSE (for 2AZ-FE)  (See REMOVAL )
  12. REMOVE HOOD LOCK SUPPORT SUB-ASSEMBLY (for 2ZR-FE)  (See REMOVAL )
  13. REMOVE HOOD LOCK SUPPORT SUB-ASSEMBLY (for 2AZ-FE)  (See REMOVAL )
  14. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY (for 2ZR-FE)  (See REMOVAL )
  15. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY (for 2AZ-FE)  (See REMOVAL )
  16. REMOVE NO. 2 FAN SHROUD (for 2ZR-FE)  (See REMOVAL )
  17. REMOVE NO. 2 FAN SHROUD (for 2AZ-FE)  (See REMOVAL )
  18. REMOVE CONDENSER ASSEMBLY WITH RECEIVER
    1. Remove the condenser assembly with receiver as shown in the illustration.

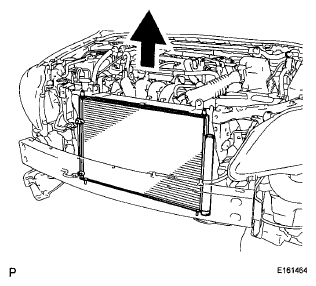

      Fig 3: Removing Condenser Assembly With Receiver
      G06015541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
