Blower Unit: Removal

  1. PRECAUTION

    (See LOWER INSTRUMENT PANEL )

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system (See AIRBAG SYSTEM ).

    HINT:

    Before disconnecting the cable, set the air conditioning control switch to DEF-MODE. (for Automatic Air Conditioning System)

  4. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM  (See REPLACEMENT )
  5. REMOVE FRONT WIPER ARM HEAD CAP  (See ON-VEHICLE INSPECTION )
  6. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH  (See ON-VEHICLE INSPECTION )
  7. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH  (See REMOVAL )
  8. REMOVE HOOD TO COWL TOP SEAL  (See REMOVAL )
  9. REMOVE CENTER NO. 1 COWL TOP VENTILATOR LOUVER  (See REMOVAL )
  10. REMOVE COWL TOP VENTILATOR LOUVER LH  (See REMOVAL )
  11. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY  (See REMOVAL )
  12. REMOVE OUTER COWL TOP PANEL (for TMC Made)  (See REMOVAL )
  13. REMOVE OUTER COWL TOP PANEL (except TMC Made)  (See REMOVAL )
  14. DISCONNECT SUCTION PIPE SUB-ASSEMBLY  (See REMOVAL )
  15. DISCONNECT AIR CONDITIONING TUBE ASSEMBLY  (See REMOVAL )
  16. DISCONNECT HEATER OUTLET WATER HOSE  (See REMOVAL )
  17. DISCONNECT HEATER INLET WATER HOSE  (See REMOVAL )
  18. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH  (See REMOVAL )
  19. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH  (See REMOVAL )
  20. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  (See REMOVAL )
  21. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  (See REMOVAL )
  22. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  23. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY  (See REMOVAL )
  24. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  25. REMOVE FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag)  (See REMOVAL )
  26. REMOVE FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag)  (See REMOVAL )
  27. REMOVE FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)  (See REMOVAL )
  28. REMOVE FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag)  (See REMOVAL )
  29. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  (See REMOVAL )
  30. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  31. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  32. REMOVE NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY  (See REMOVAL )
  33. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
  34. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See REMOVAL )
  35. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See REMOVAL )
  36. REMOVE POWER STEERING ECU ASSEMBLY (for 2ZR-FE)  (See REMOVAL )
  37. REMOVE POWER STEERING ECU ASSEMBLY (for 2AZ-FE)  (See REMOVAL )
  38. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  39. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL )
  40. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL )
  41. REMOVE STEERING PAD  (See REMOVAL )
  42. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  43. REMOVE LOWER STEERING COLUMN COVER  (See REMOVAL )
  44. REMOVE UPPER STEERING COLUMN COVER  (See REMOVAL )
  45. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See REMOVAL )
  46. REMOVE COLUMN HOLE COVER SILENCER SHEET  (See REMOVAL )
  47. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY  (See REMOVAL )
  48. REMOVE INSTRUMENT PANEL SUB REINFORCEMENT  (See REMOVAL )
  49. REMOVE NO. 3 AIR DUCT SUB-ASSEMBLY  (See REMOVAL )
  50. REMOVE TRANSPONDER KEY AMPLIFIER (w/ Smart Key System)  (See REMOVAL )
  51. REMOVE STOP LIGHT SWITCH ASSEMBLY  (See STOP LIGHT SWITCH )
  52. REMOVE STEERING POST ASSEMBLY (for 2ZR-FE)  (See REMOVAL )
  53. REMOVE STEERING POST ASSEMBLY (for 2AZ-FE)  (See REMOVAL )
  54. REMOVE RADIO RECEIVER WITH BRACKET (w/o Navigation System)  (See REMOVAL )
  55. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/ Navigation System)  (See REMOVAL )
  56. REMOVE NAVIGATION RECEIVER WITH BRACKET (w/ Navigation System)  (See REMOVAL )
  57. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  58. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  59. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  60. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  61. REMOVE INSTRUMENT PANEL BOX ASSEMBLY  (See REMOVAL )
  62. REMOVE INSTRUMENT PANEL HOLE COVER  (See REMOVAL )
  63. REMOVE AIR CONDITIONING PANEL ASSEMBLY (for Manual Air Conditioning System)  (See REMOVAL )
  64. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)  (See INSTALLATION )
  65. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  66. REMOVE COWL SIDE TRIM BOARD LH  (See REMOVAL )
  67. REMOVE FRONT NO. 1 CONSOLE BOX INSERT  (See REMOVAL )
  68. REMOVE NO. 1 SWITCH HOLE BASE (w/o Smart Key System)  (See REMOVAL )
  69. REMOVE NO. 1 SWITCH HOLE BASE (w/ Smart Key System)  (See REMOVAL )
  70. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  71. REMOVE COWL SIDE TRIM BOARD RH  (See REMOVAL )
  72. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover)  (See REMOVAL )
  73. REMOVE FRONT NO. 2 CONSOLE BOX INSERT  (See REMOVAL )
  74. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  (See REMOVAL )
  75. REMOVE CONSOLE BOX CARPET  (See REMOVAL )
  76. REMOVE CONSOLE BOX ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  77. REMOVE CONSOLE BOX ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  78. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY  (See REMOVAL )
  79. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY  (See REMOVAL )
  80. REMOVE SMART KEY ECU ASSEMBLY (w/ Smart Key System)  (See CERTIFICATION ECU )
  81. REMOVE NO. 1 AIR DUCT SUB-ASSEMBLY  (See REMOVAL )
  82. REMOVE LOWER DEFROSTER NOZZLE ASSEMBLY  (See REMOVAL )
  83. REMOVE CENTER INSTRUMENT PANEL TO COWL BRACE  (See REMOVAL )
  84. REMOVE REAR NO. 2 AIR DUCT (w/ Rear Air Duct)  (See REMOVAL )
  85. REMOVE REAR NO. 3 AIR DUCT (w/ Rear Air Duct)  (See REMOVAL )
  86. REMOVE NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY (for Manual Air Conditioning System)  (See REMOVAL )
  87. REMOVE NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY (for Automatic Air Conditioning System)  (See REMOVAL )
  88. REMOVE NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY  (See REMOVAL )
  89. REMOVE REAR NO. 1 AIR DUCT (w/ Rear Air Duct)  (See REMOVAL )
  90. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY (for Manual Air Conditioning System)  (See REMOVAL )
  91. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY (for Automatic Air Conditioning System)  (See REMOVAL )
  92. REMOVE AIR CONDITIONING UNIT  (See REMOVAL )
  93. REMOVE NO. 2 AIR DUCT SUB-ASSEMBLY  (See REMOVAL )
  94. REMOVE BLOWER ASSEMBLY (w/o PTC Heater)
    1. for Automatic Air Conditioning System:
      1. Disconnect the connector.
    2. Remove the 3 screws and the blower assembly.

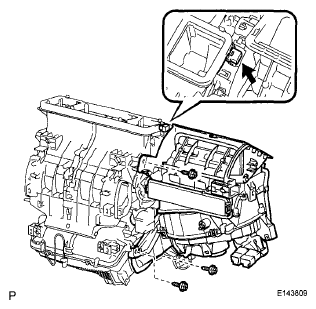

      Fig 1: Locating Blower Assembly And Screws
      G06015358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  95. REMOVE BLOWER ASSEMBLY (w/ PTC Heater)
    1. Disengage each clamp.

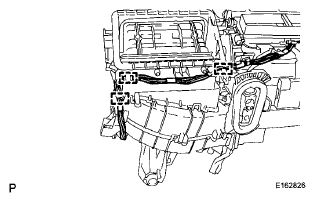

      Fig 2: Identifying Blower Assembly And Clamp
      G06015359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw and disengage the quick heater connector.
    3. for Automatic Air Conditioning System:
      1. Disconnect the connector.
    4. Remove the 3 screws and the blower assembly.
      Fig 3: Locating Blower Assembly And Screws
      G06015360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
