Fuel Sender Gauge Assembly: Components

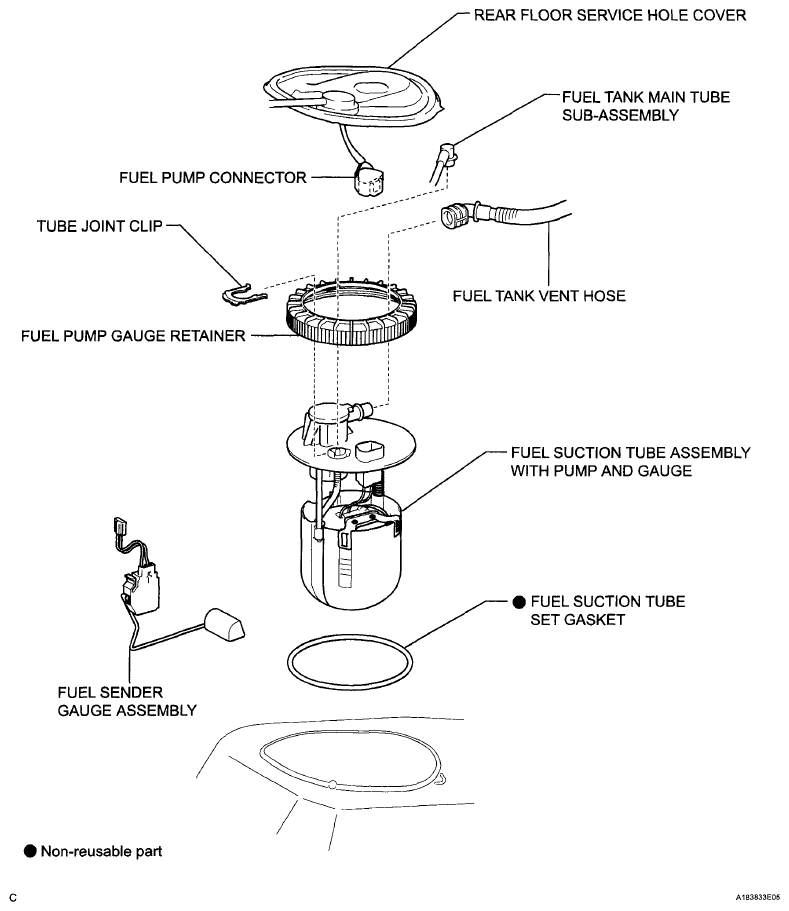

Fig 1: Identifying Fuel Sender Gauge Assembly Components

G06009822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
