Power Outlet Socket: Removal

  1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH  (See REMOVAL )
  2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH  (See REMOVAL )
  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  4. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  6. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  7. REMOVE INSTRUMENT PANEL BOX ASSEMBLY  (See REMOVAL )
  8. REMOVE POWER OUTLET SOCKET ASSEMBLY
    1. Using a screwdriver, disengage the claw and remove the power outlet socket assembly.

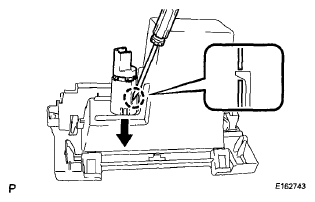

    Fig 1: Removing Power Outlet Socket Assembly Claws
    G06016578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE POWER OUTLET SOCKET COVER
    1. Disengage the 2 claws and remove the power outlet socket cover.

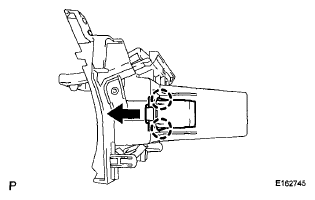

    Fig 2: Removing Power Outlet Socket Cover And Claws
    G06016579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
