Cigarette Lighter: Removal

  1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH  (See REMOVAL )
  2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH  (See REMOVAL )
  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  4. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  6. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  7. REMOVE INSTRUMENT PANEL BOX ASSEMBLY  (See REMOVAL )
  8. REMOVE CIGARETTE LIGHTER ASSEMBLY
    1. Disconnect the connector.
    2. Disengage the clamp and disconnect the connector.
      Fig 1: Identifying Cigarette Lighter Assembly Clamp And Connector
      G06016568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the cigarette lighter nut to remove it.

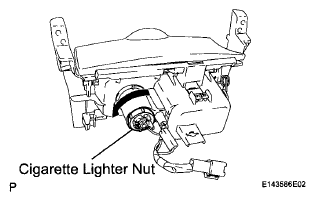

      Fig 2: Removing Cigarette Lighter Nut
      G06016569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the cigarette lighter retainer.
      Fig 3: Identifying Cigarette Lighter Retainer
      G06016570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the cigarette lighter socket.

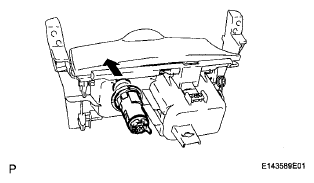

    Fig 4: Identifying Cigarette Lighter Socket
    G06016571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
