Center Power Outlet Socket: Removal

  1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH  (See REMOVAL )
  2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH  (See REMOVAL )
  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  4. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  6. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  7. REMOVE INSTRUMENT PANEL BOX ASSEMBLY  (See REMOVAL )
  8. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  (See REMOVAL )
  9. REMOVE CENTER POWER OUTLET SOCKET ASSEMBLY
    1. Disconnect the connector.
      Fig 1: Locating Center Power Outlet Socket Connector
      G06016583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Separate part of the No. 1 console box silencer pad to allow the wire harness to be removed.

      HINT:

      The separated part of the No. 1 console box silencer pad will be reattached during installation.

      Fig 2: Identifying No. 1 Console Box Silencer Pad
      G06016584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, disengage the claw and remove the center power outlet socket assembly.

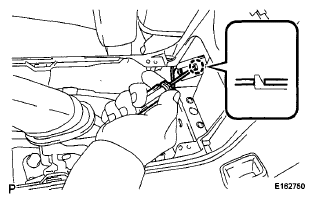

    Fig 3: Identifying Center Power Outlet Socket Assembly Claw
    G06016585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CENTER POWER OUTLET SOCKET COVER
    1. Disengage the 2 claws and remove the center power outlet socket cover.

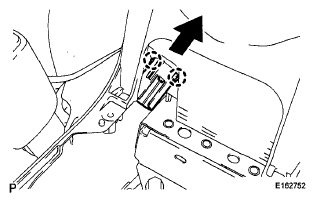

    Fig 4: Removing Center Power Outlet Socket Cover Claws
    G06016586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
