Starting without Smart Key System (TMC Made): Notes

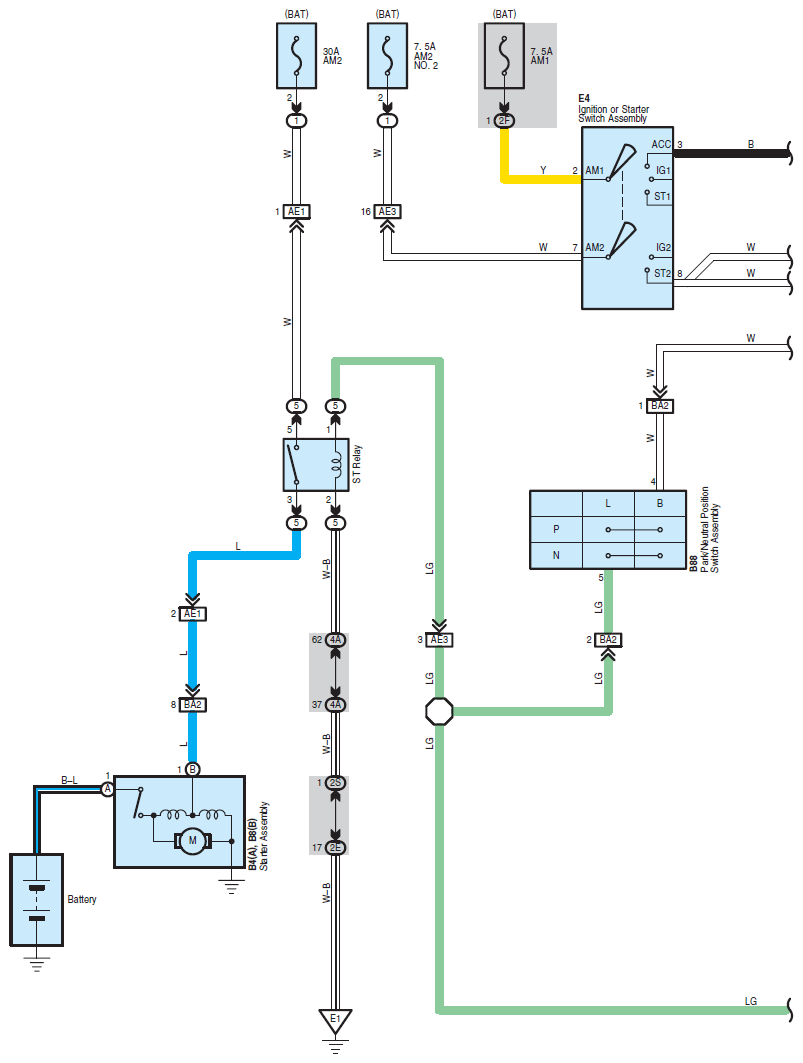

Fig 1: Starting Without Smart Key System (TMC Made) - Circuit Diagram (1 Of 2)
G07604756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

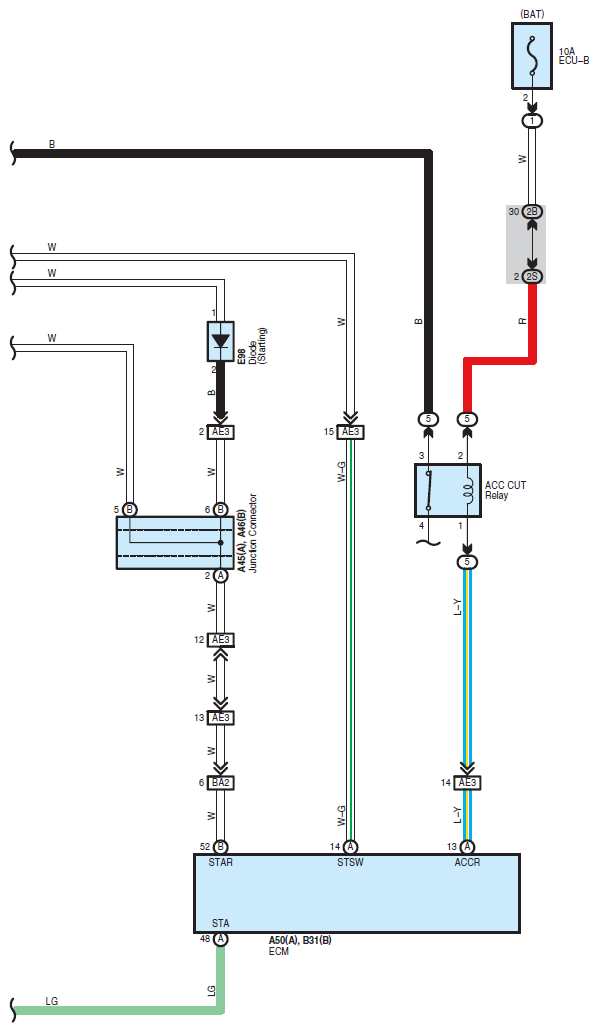

Fig 2: Starting Without Smart Key System (TMC Made) - Circuit Diagram (2 Of 2)
G07604757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
