Smart Key System (TMC Made): Notes

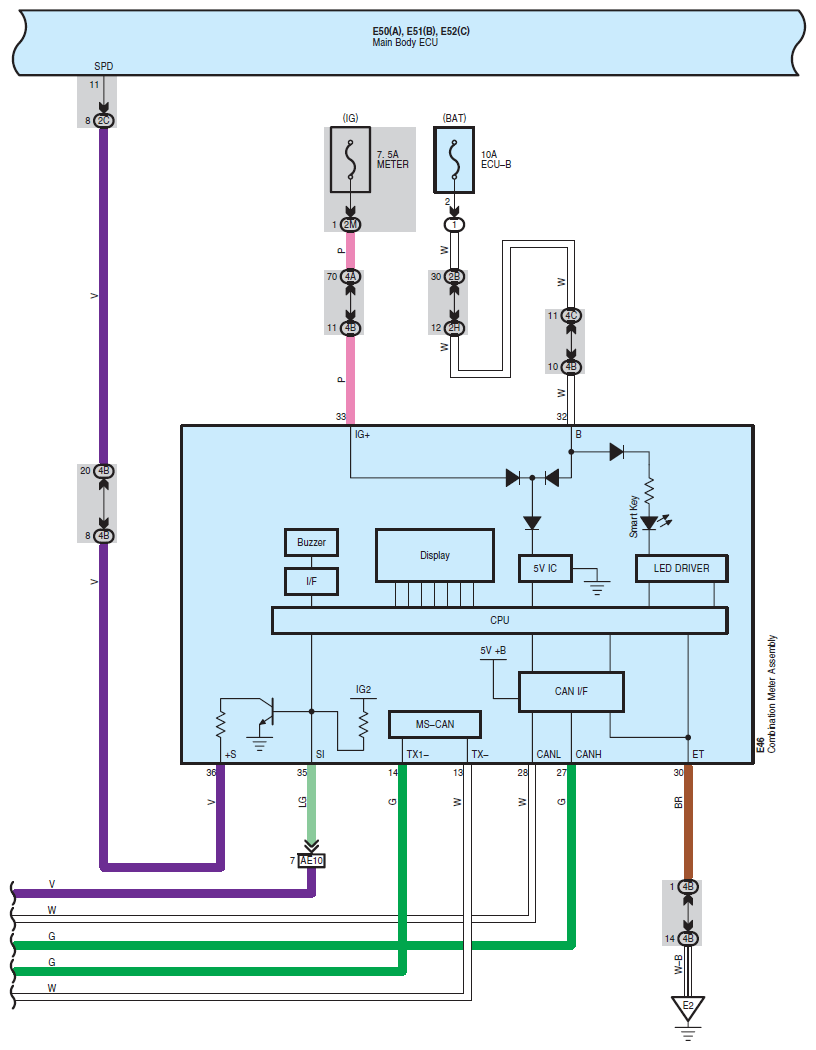

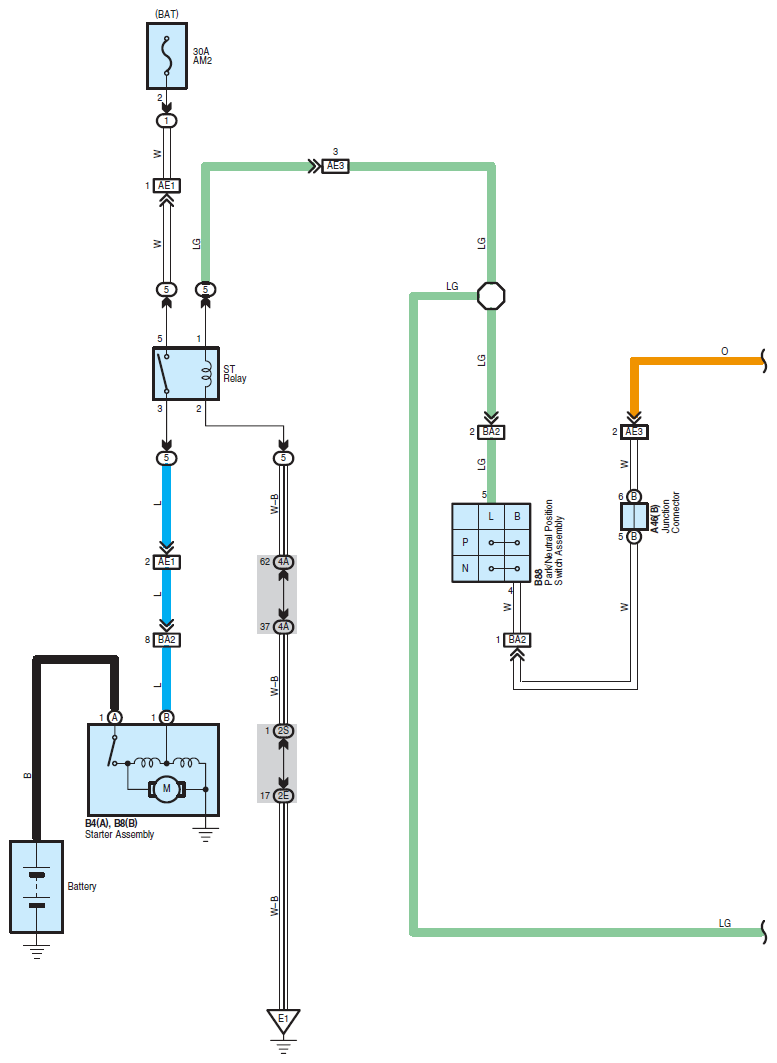

Fig 1: Smart Key System (TMC Made) - Circuit Diagram (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

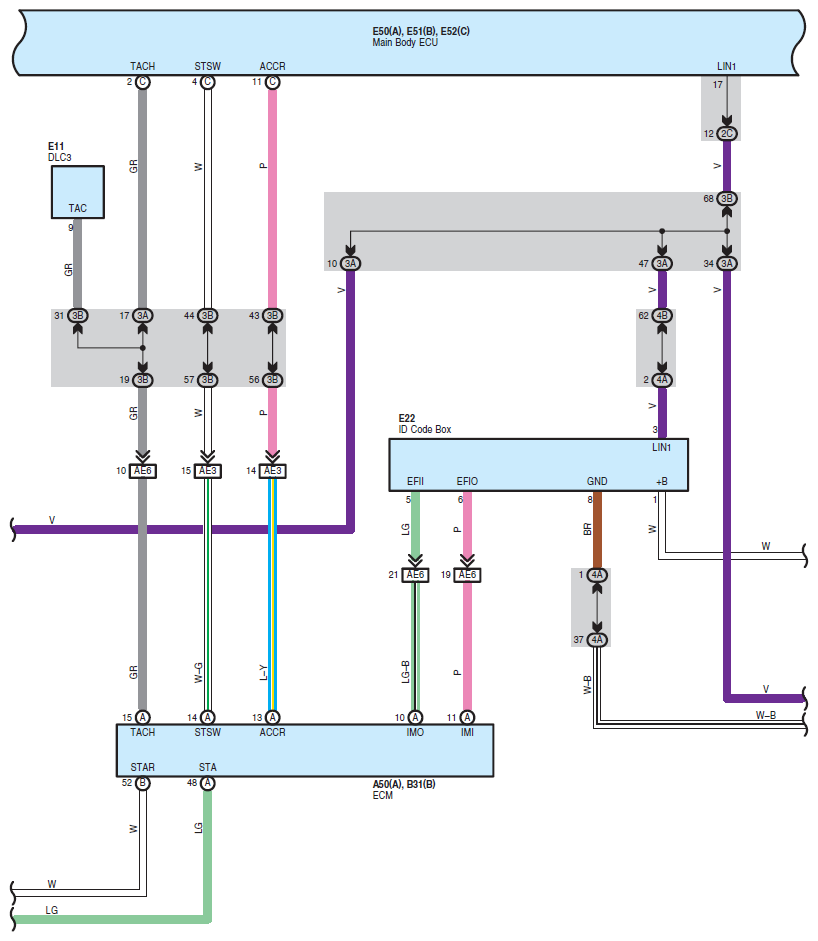

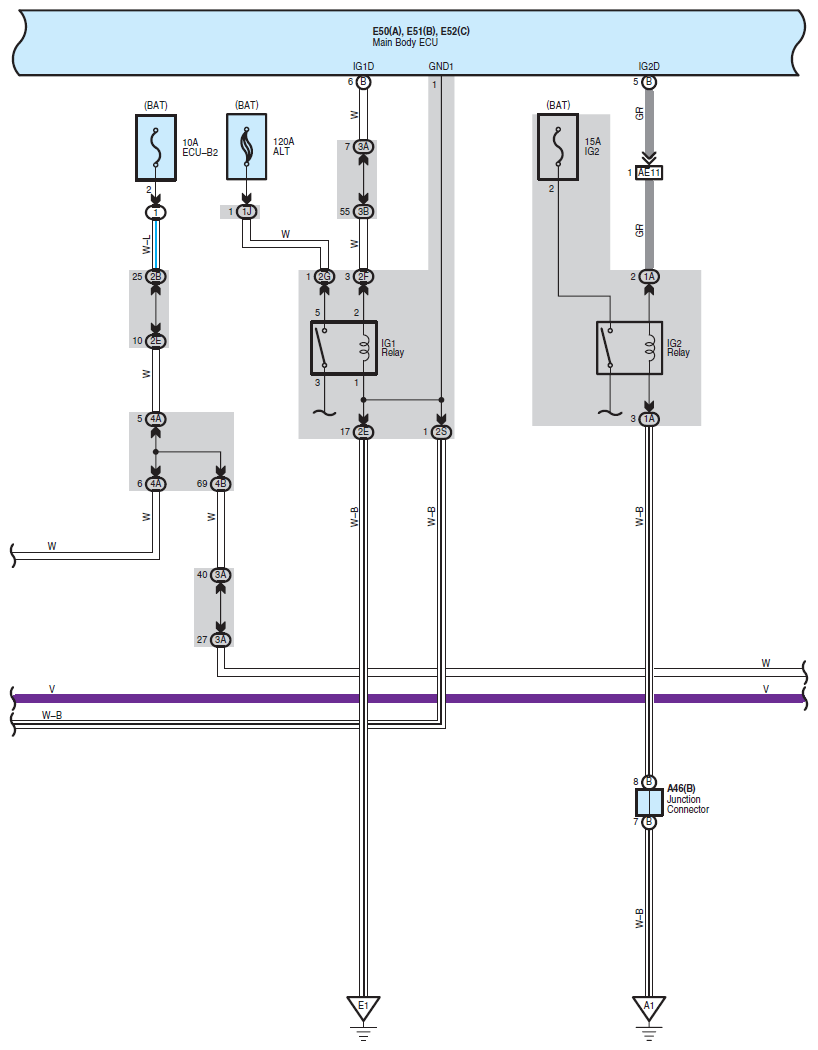

Fig 2: Smart Key System (TMC Made) - Circuit Diagram (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

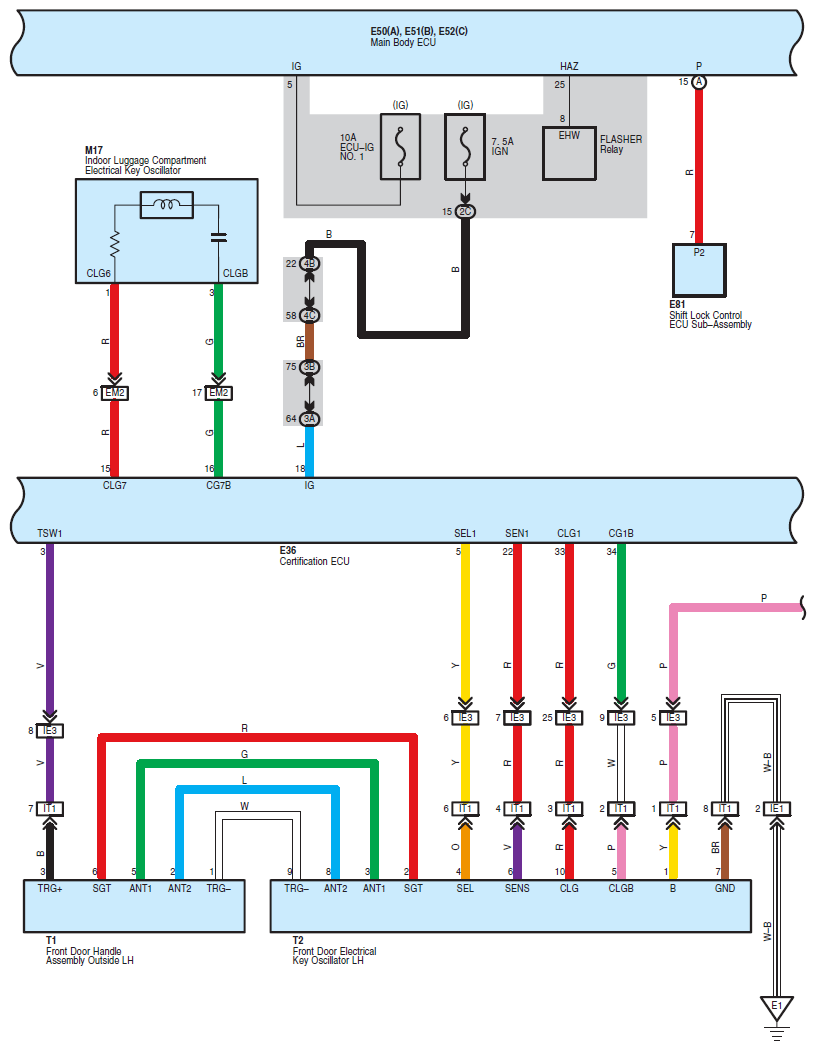

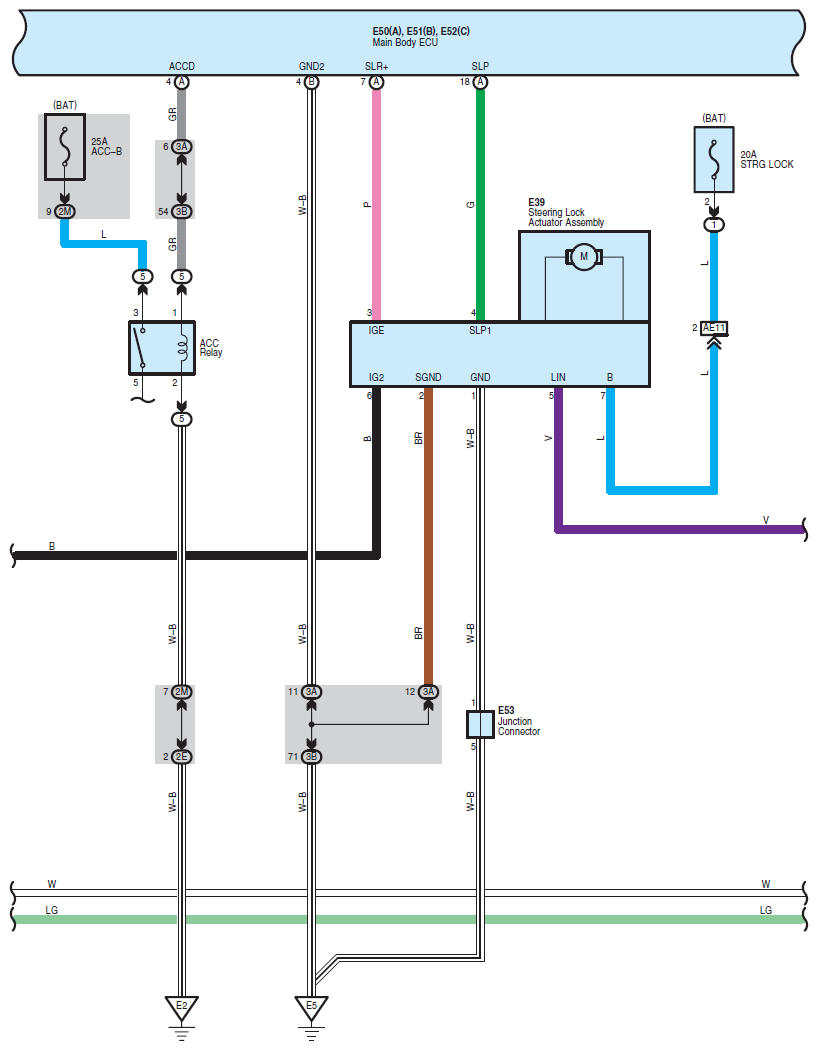

Fig 3: Smart Key System (TMC Made) - Circuit Diagram (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

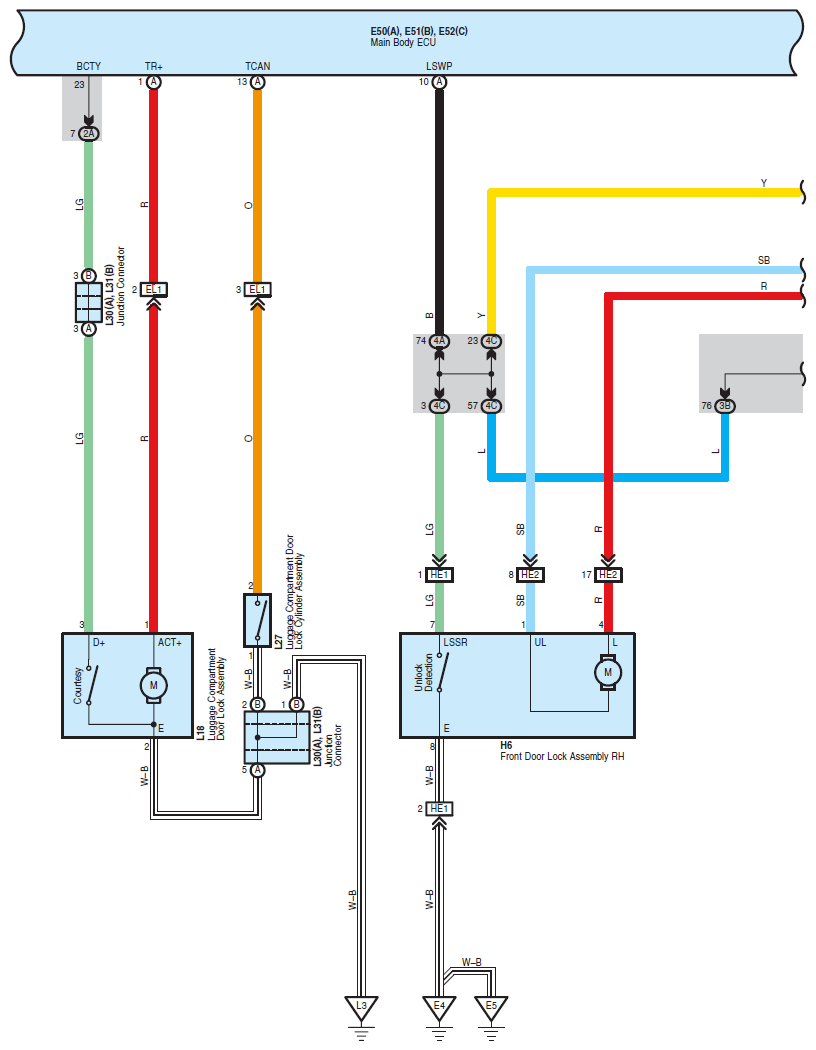

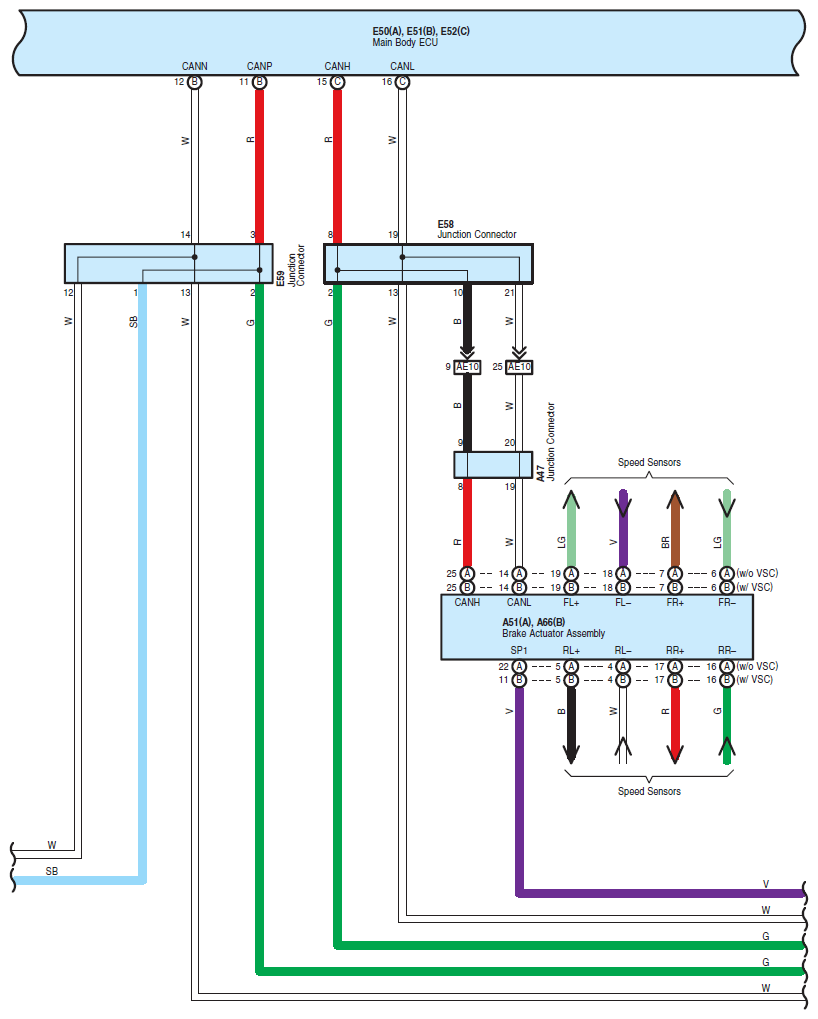

Fig 4: Smart Key System (TMC Made) - Circuit Diagram (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

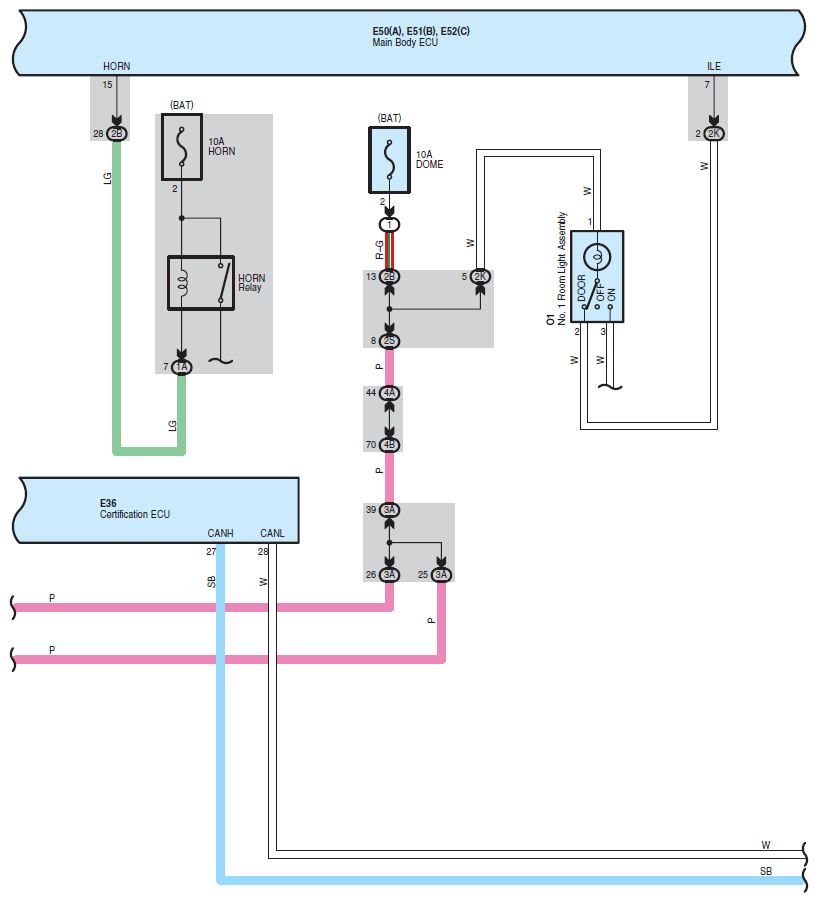

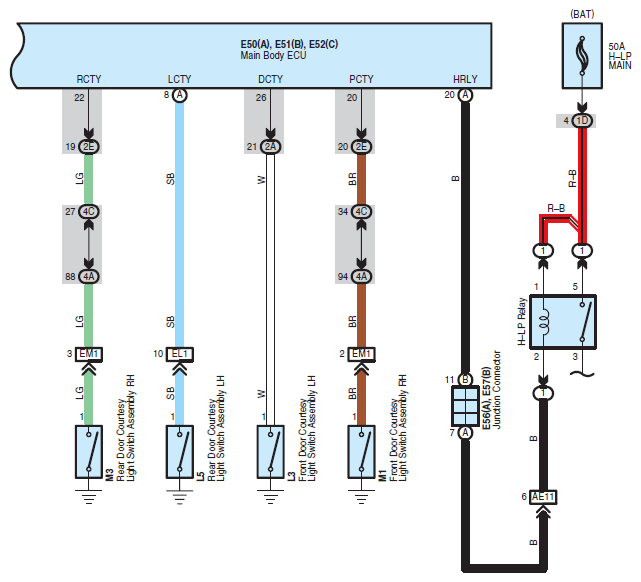

Fig 5: Smart Key System (TMC Made) - Circuit Diagram (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

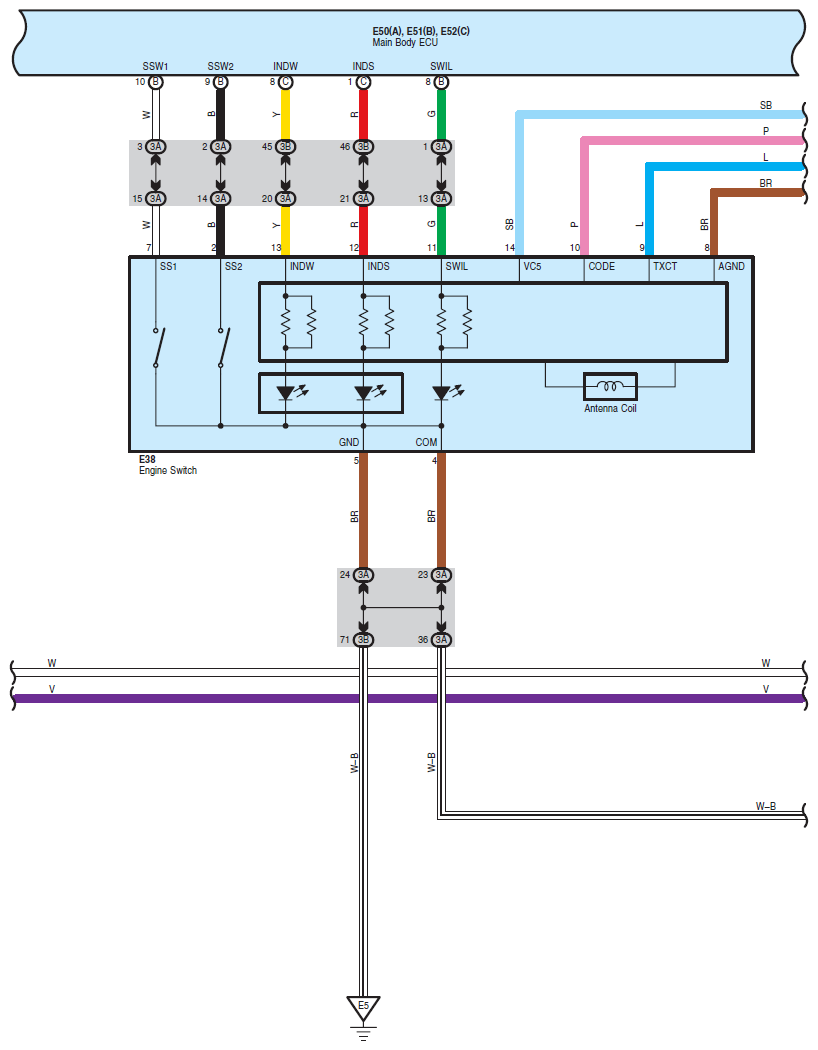

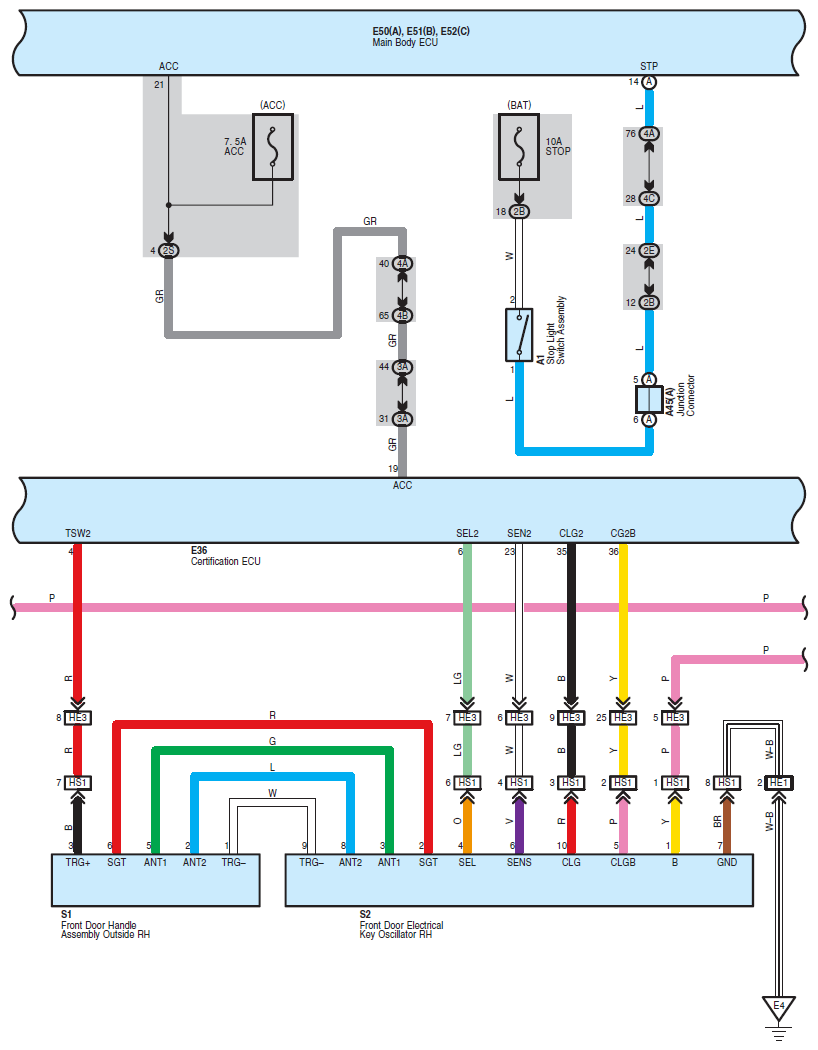

Fig 6: Smart Key System (TMC Made) - Circuit Diagram (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

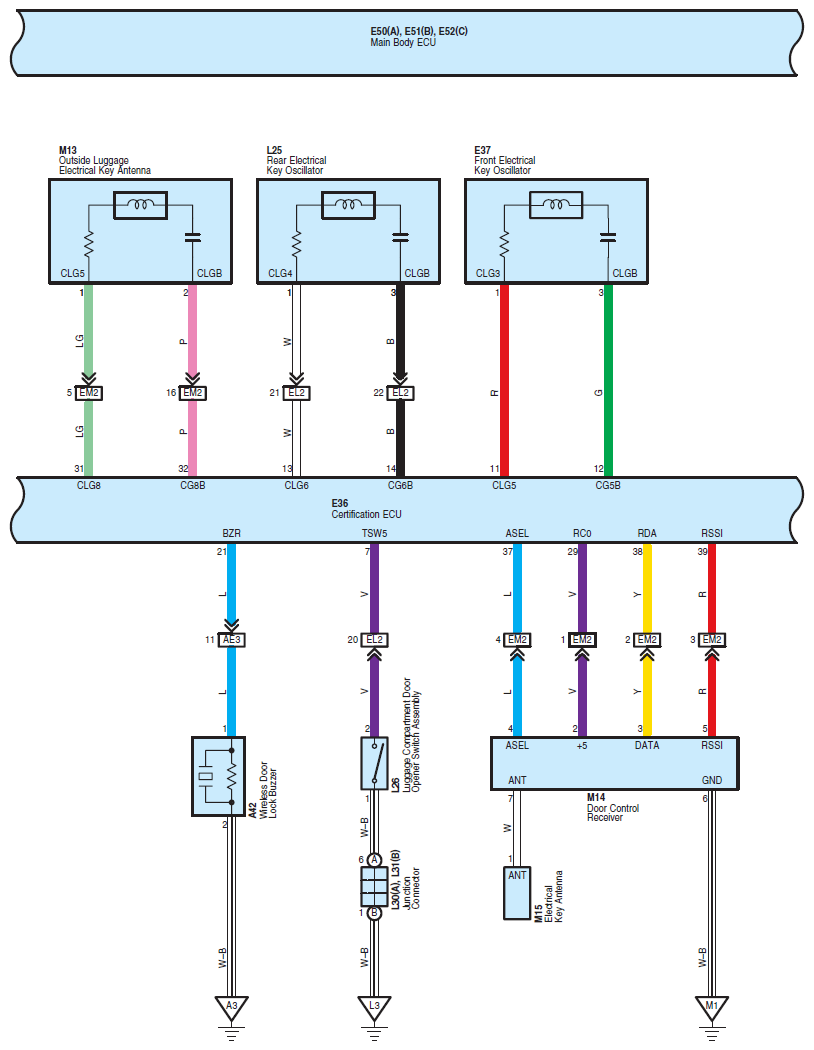

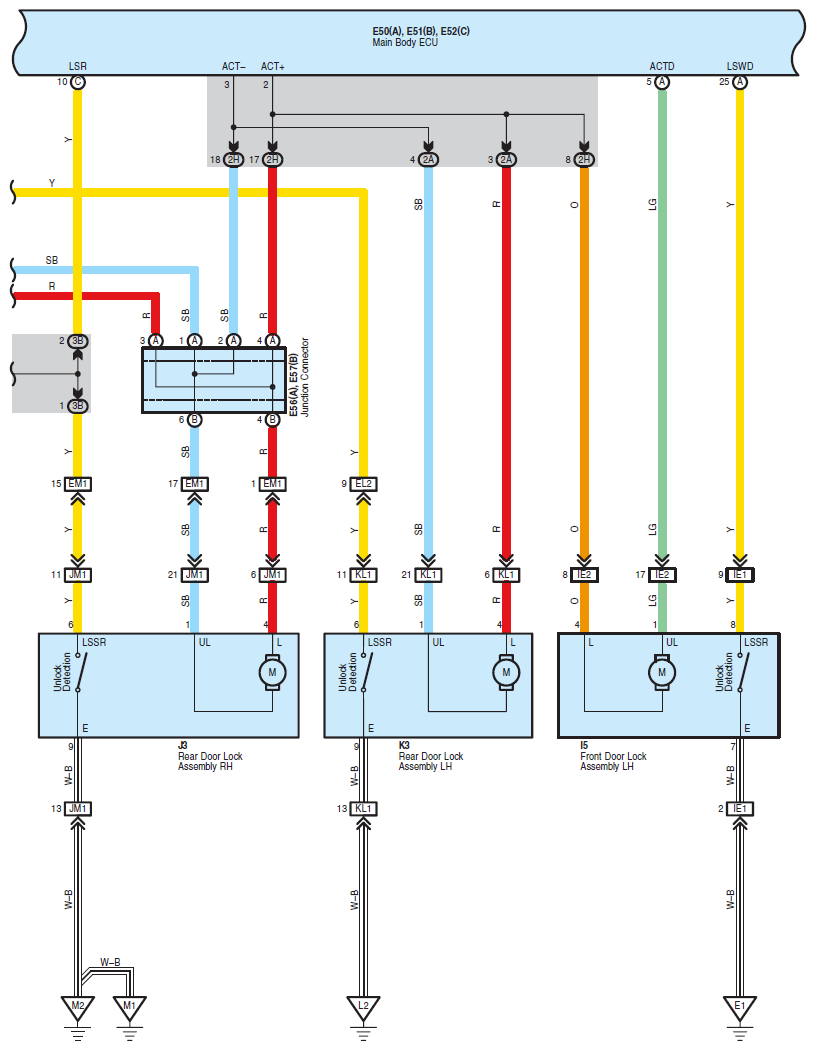

Fig 7: Smart Key System (TMC Made) - Circuit Diagram (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

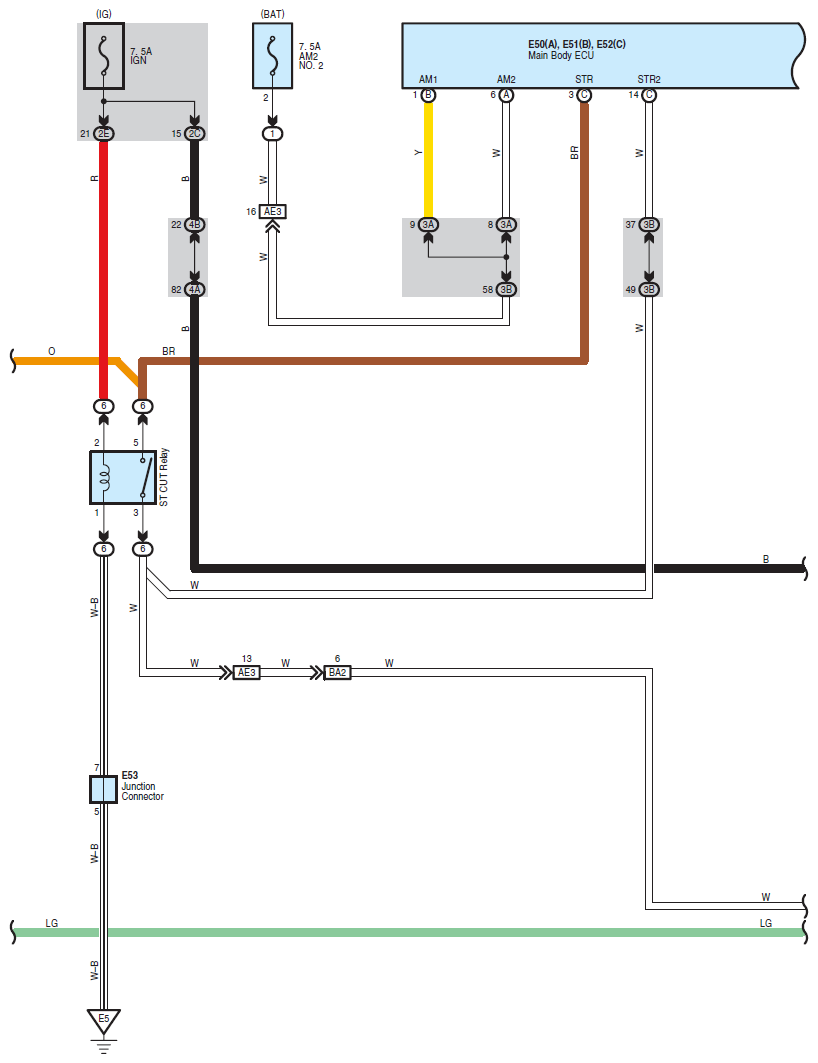

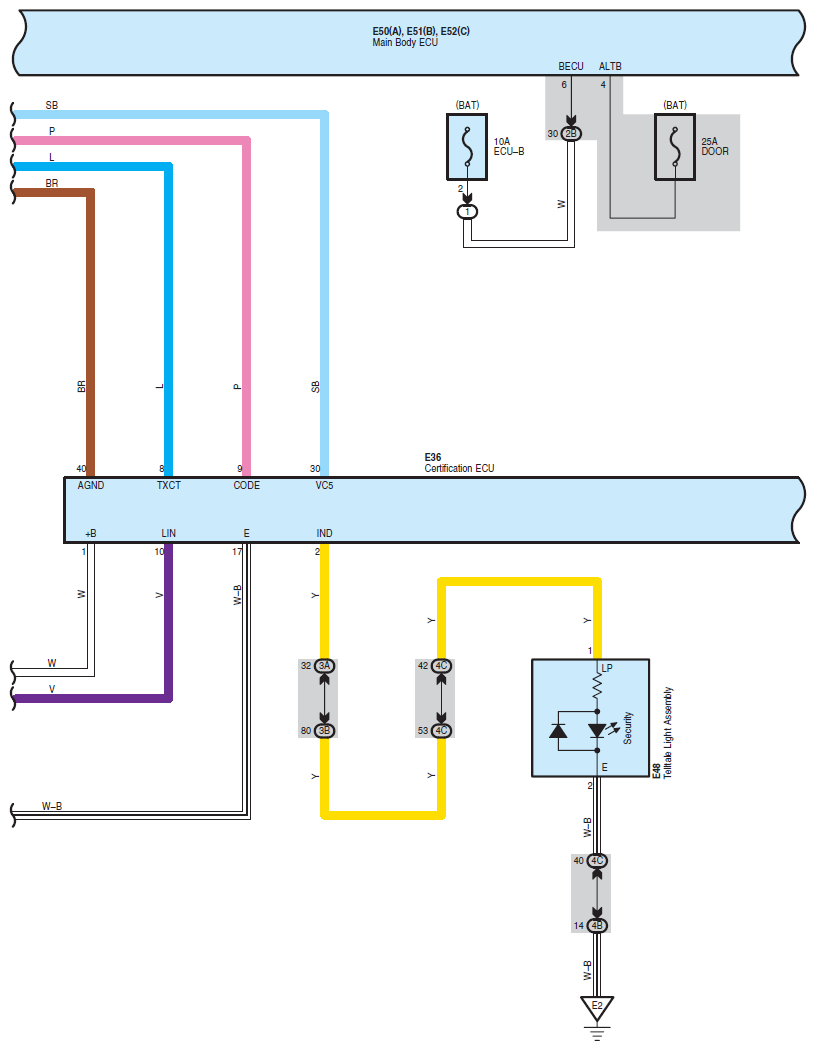

Fig 8: Smart Key System (TMC Made) - Circuit Diagram (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Smart Key System (TMC Made) - Circuit Diagram (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Smart Key System (TMC Made) - Circuit Diagram (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Smart Key System (TMC Made) - Circuit Diagram (11 Of 16)

Fig 12: Smart Key System (TMC Made) - Circuit Diagram (12 Of 16)

Fig 13: Smart Key System (TMC Made) - Circuit Diagram (13 Of 16)

Fig 14: Smart Key System (TMC Made) - Circuit Diagram (14 Of 16)

Fig 15: Smart Key System (TMC Made) - Circuit Diagram (15 Of 16)

Fig 16: Smart Key System (TMC Made) - Circuit Diagram (16 Of 16)
