Remote Control Mirror (TMC Made): Notes

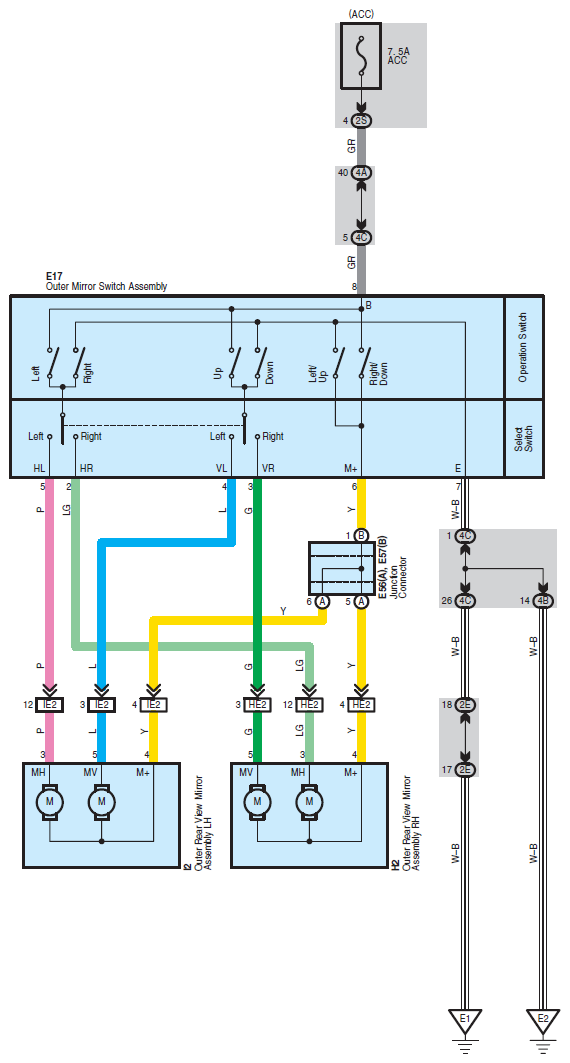

Fig 1: Remote Control Mirror (TMC Made) - Circuit Diagram

G07604850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
