Remote Control Mirror (Except TMC Made): Notes

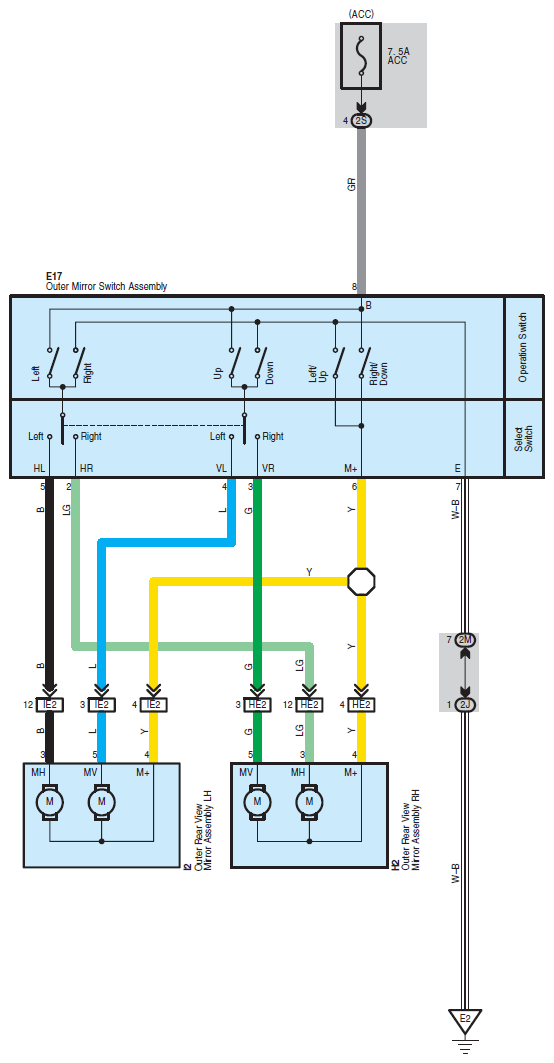

Fig 1: Remote Control Mirror (Except TMC Made) - Circuit Diagram

G07605020

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
