Key Reminder without Smart Key System (Except TMC Made): Notes

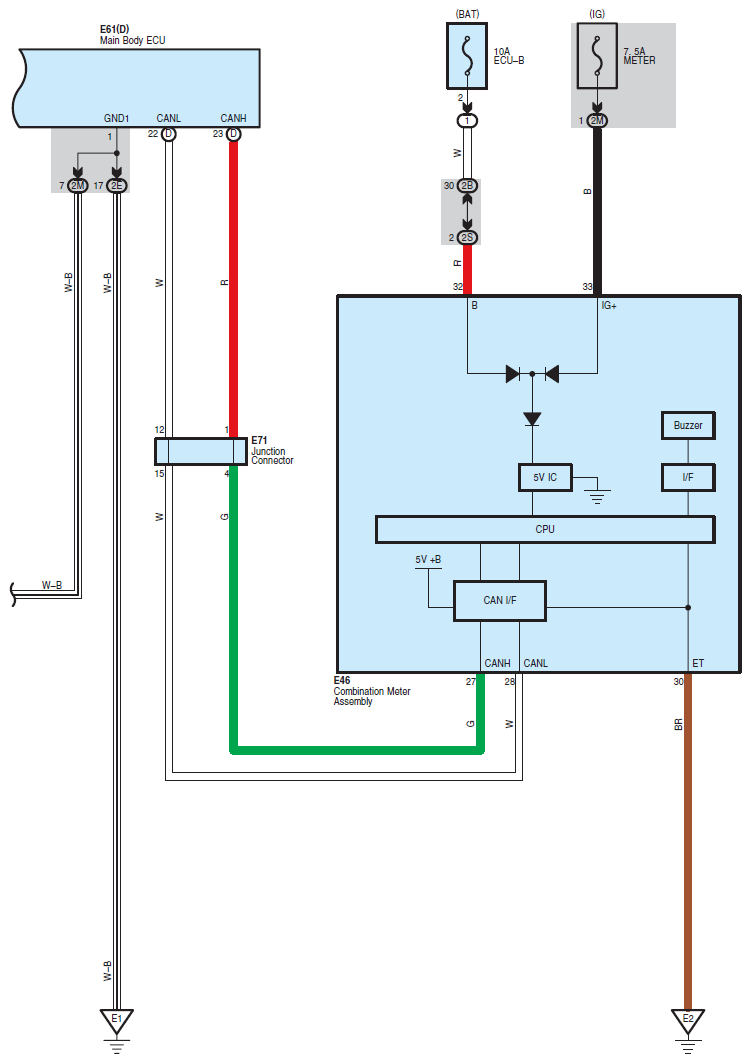

Fig 1: Key Reminder Without Smart Key System (Except TMC Made) - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

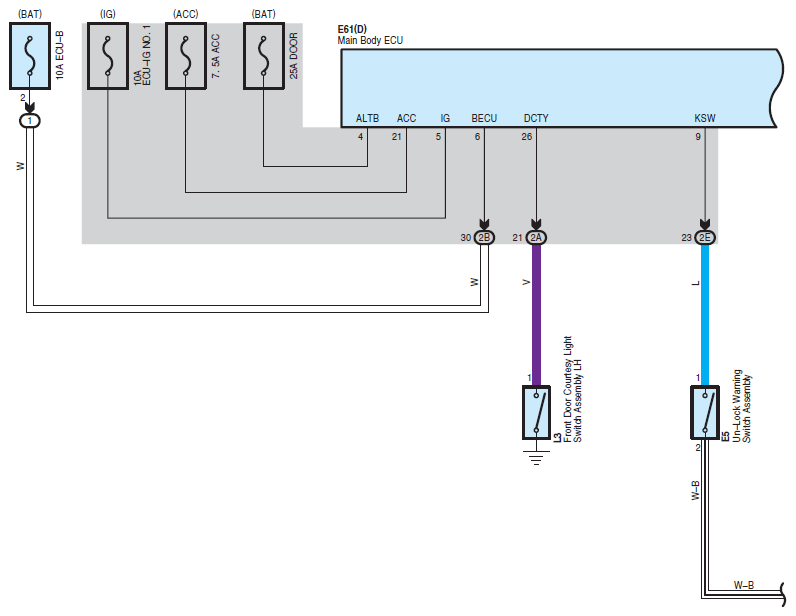

Fig 2: Key Reminder Without Smart Key System (Except TMC Made) - Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
