VSC OFF Indicator Light Remains ON: Wiring Diagram

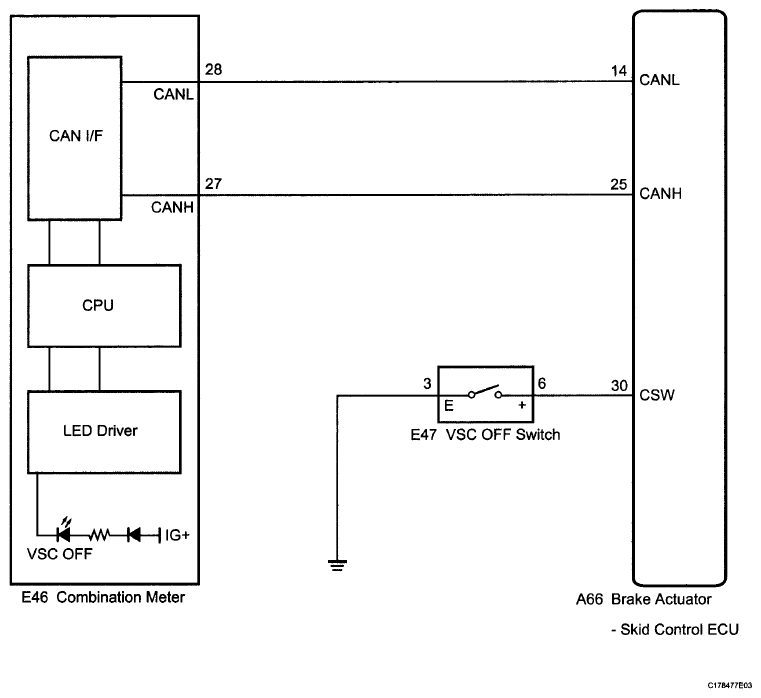

Fig 1: VSC OFF Indicator Light Remains On - Wiring Diagram

G06013985

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
