BRAKE ACTUATOR (w/o VSC): Components

Fig 1: Identifying Brake Actuator (W/O VSC) Components (1 Of 5)
G06015535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Brake Actuator (W/O VSC) Replacement Components With Torque Specifications (2 Of 5)
G06014001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Brake Actuator (W/O VSC) Replacement Components With Torque Specifications (3 Of 5)
G06014002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

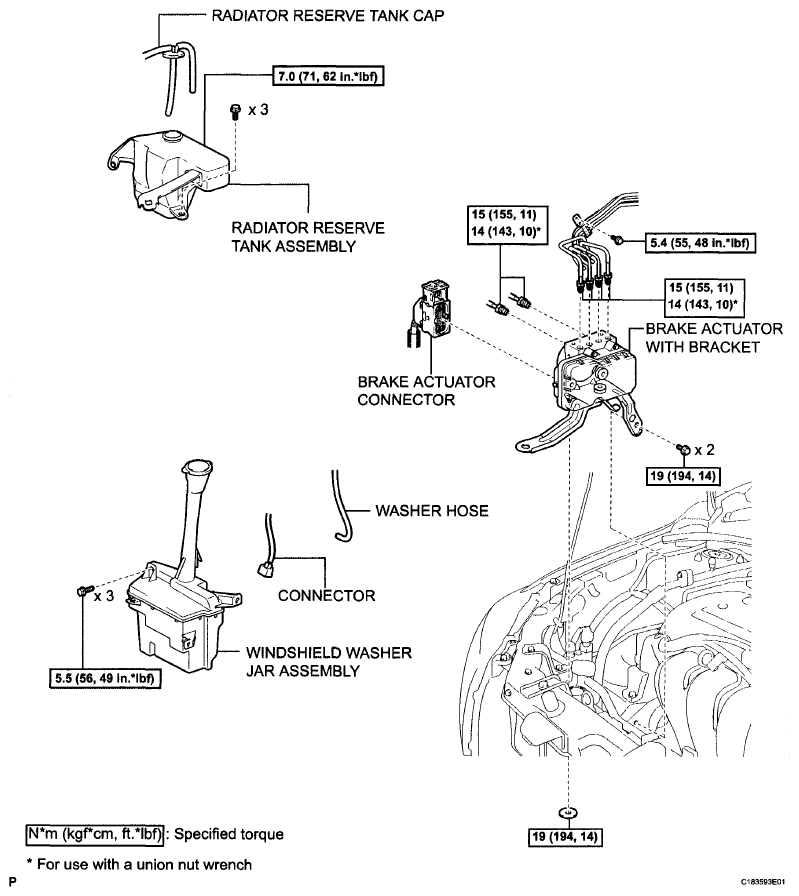

Fig 4: Brake Actuator (W/O VSC) Replacement Components With Torque Specifications (4 Of 5)
G06014026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Brake Actuator (W/O VSC) Replacement Components With Torque Specifications (5 Of 5)
G06014027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
