Windshield Glass: Installation

1. Using a brush or sponge, coat the application area of the 2 No. 2 windshield glass stoppers with Primer G.
   NOTE:

   • Do not apply too much primer.
   • Allow the primer coating to dry for 3 minutes or more.
   • Throw away any leftover Primer G.

   HINT:

   If an area other than that specified is coated by accident, apply a non-reusable part solvent to a clean cloth and wipe off the primer.

2. Install 2 new No. 2 windshield glass stoppers onto the windshield glass as shown in the illustration.

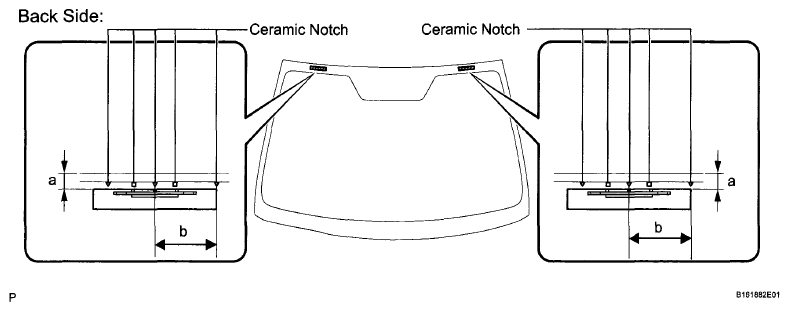

   Fig 1: Identifying Windshield Glass Stoppers Installation Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Only 2-piece type No. 2 windshield glass stoppers are supplied. Use the 2-piece type stoppers even if a 1-piece type was used.

   Standard Dimension

   AREA DIMENSION CHART



   Area	Dimension
   a	13.6 mm (0.535 in.)
   b	40.0 mm (1.57 in.)

1. Install 2 new No. 1 windshield glass stoppers to the vehicle body as shown in the illustration.

   HINT:

   Only 2-piece type No. 1 windshield glass stoppers are supplied. Use the 2-piece type stoppers even if a 1-piece type was used.

   Fig 2: Identifying Windshield Glass Stoppers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a brush or sponge, coat the application area of the windshield outside moulding with Primer G.
   Fig 3: Identifying Windshield Outside Moulding Application Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Do not apply too much primer.
   • Allow the primer coating to dry for 3 minutes or more.
   • Throw away any leftover Primer G.

   HINT:

   If an area other than that specified is coated by accident, apply a non-residue solvent to a clean cloth and wipe off the excess primer.

2. Install a new windshield outside moulding onto the windshield glass as shown in the illustration.

1. Using a brush or sponge, coat the application area of the windshield glass adhesive dam with Primer G.
   NOTE:

   • Do not apply too much primer.
   • Allow the primer coating to dry for 3 minutes or more.
   • Throw away any leftover Primer G.

   HINT:

   If the primer is applied to an area that specified is coated by accident, apply a non-residue solvent to a clean cloth and wipe off the excess primer.

2. Install a new windshield glass adhesive dam onto the windshield glass as shown in the illustration.

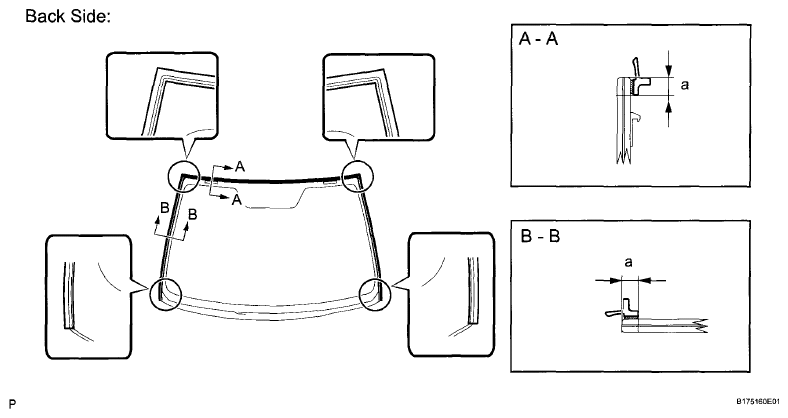

   Fig 4: Identifying Windshield Glass Adhesive Dam

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Install the a adhesive dam along the dam reference line.

1. Position the windshield glass assembly.
   1. Using suction cups, place the windshield glass assembly in the correct position.
   2. Check that the entire contact surface of the windshield glass rim is perfectly even.
   3. Place matchmarks on the windshield glass and vehicle body on the locations indicated in the illustration.
      Fig 5: Identifying Matchmarks On Windshield Glass And Vehicle Body

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Placing matchmarks is necessary only when installing a new glass. If it is the reused glass, matchmarks should already be present.
      • When reusing the glass, check and correct the matchmark positions.
      NOTE: Check that the stoppers are attached to the vehicle body correctly.
   4. Using suction cups, remove the windshield glass assembly.
2. Using a brush, coat the installation surface on the vehicle body with Primer M.
   NOTE:

   • Do not coat the adhesive with Primer M.
   • Allow the primer to dry for 3 minutes or more.
   • Throw away any leftover Primer G.

   HINT:

   If an area other than that specified is coated by accident, apply a non-residue solvent to a clean cloth and wipe off the excess primer.

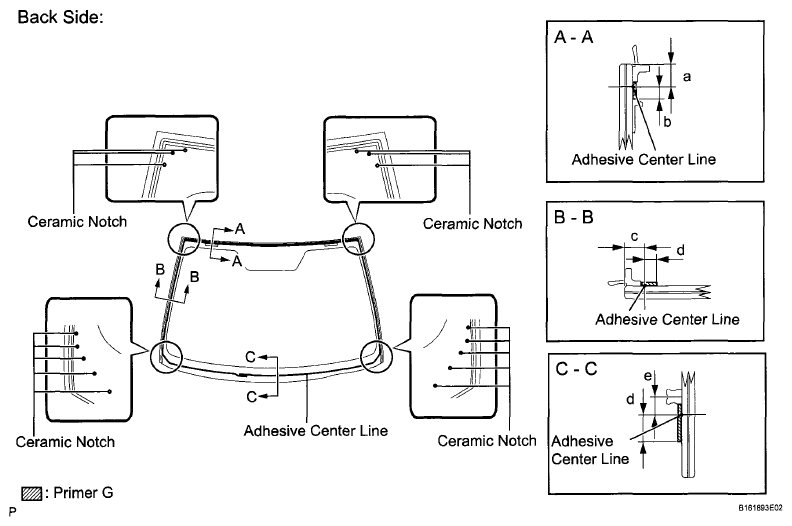

3. Using a brush or sponge, coat the application area of adhesive with Primer G.

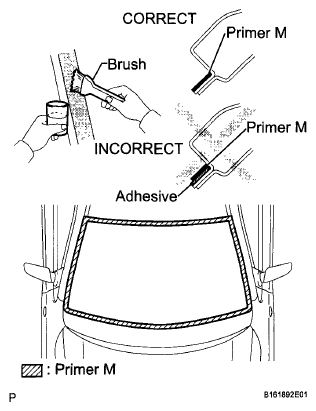

   Fig 6: Applying Primer M

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 7: Identifying Primer M Application Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Dimension

   AREA DIMENSION CHART



   Area	Dimension
   a	9.5 mm (0.374 in.)
   b	4.6 mm (0.181 in.)
   c	9.5 mm (0.374 in.)
   d	7.0 mm (0.276 in.)
   e	7.5 mm (0.295 in.)

   NOTE:

   • Do not apply too much primer.
   • Allow the primer to dry for 3 minutes or more.
   • Throw away any leftover Primer G.

   HINT:

   If an area other than that specified is coated by accident, apply a non-residue solvent to a clean cloth and wipe off the excess primer.

   1. Apply adhesive to the glass.

      Adhesive:

      Toyota Genuine Windshield Glass Adhesive or equivalent

   2. Cut off the tip of the cartridge nozzle, as shown in the illustration.

      HINT:

      After cutting off the tip, use all adhesive within the time described in the table below.

      Tack-Free Time

      TACK-FREE TIME REFERENCE



      Temperature	Tack-Free Time
      35°C (95°F)	15 minutes
      20°C (68°F)	1 hour and 40 minutes
      5°C (41°F)	8 hours

   3. Load the sealer gun with the cartridge.
   4. Apply adhesive to the windshield glass as shown in the illustration.

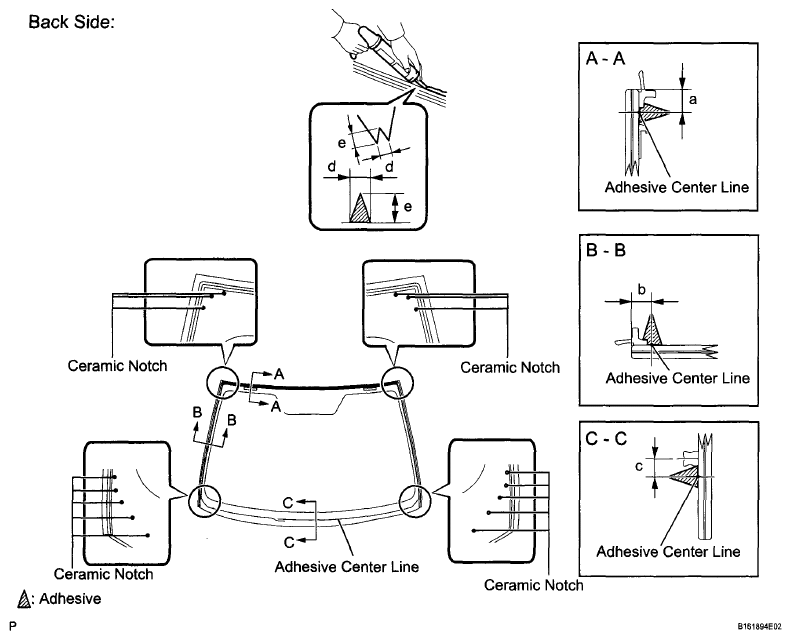

      Fig 8: Identifying Windshield Glass Adhesive Application Area

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Dimension

      AREA DIMENSION CHART



      Area	Dimension
      a	9.5 mm (0.374 in.)
      b	9.5 mm (0.374 in.)
      c	7.5 mm (0.295 in.)
      d	8.0 mm (0.315 in.)
      e	12.0 mm (0.472 in.)

      HINT:

      Apply adhesive onto the ceramic notches.

4. Install the windshield glass assembly.
   1. Using suction cups, position the glass so that the matchmarks are aligned and press it in gently along the rim.
   2. Lightly press the outer surface of the windshield glass to ensure that it is securely attached to the vehicle body.
      NOTE:

      • Check that the windshield glass stoppers are attached to the vehicle body correctly.
      • Check the clearance between the vehicle body and windshield glass.
      Fig 9: Installing Windshield Glass Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Press the glass with force of 98 N (10 kgf, 22 lbf) or more.

   3. If necessary, use a scraper to correct the level or position of adhesive that has been applied.
      NOTE: Apply adhesive onto the windshield glass rim.
   4. Hold the windshield glass using protective tape until applied adhesive becomes hard.
      NOTE: Do not drive the vehicle for the amount of time described in the table below.
      Fig 10: Applying Adhesive Onto Windshield Glass Rim

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Minimum Time

   MINIMUM TIME PRIOR REFERENCE



   Temperature	Minimum Time Prior to Driving Vehicle
   35°C (95°F)	1 hour and 30 minutes
   20°C (68°F)	5 hours
   5°C (41°F)	24 hours

1. After the adhesive has hardened, apply water from the outside of the vehicle. Check that no water leaks into the cabin.
2. If water leaks into the cabin, allow the water to dry and add adhesive.
3. Remove the protective tape.

Return the front section of the roof headlining assembly to the original position.

for TMC Made: (See INSTALLATION )

for TMMC, NUMMI Made: (See INSTALLATION )
