Rear Power Window Switch: Inspection

  1. INSPECT REAR POWER WINDOW SWITCH ASSEMBLY
    1. for Rear LH Side:
      1. Measure the resistance when the switch is operated according to the value(s) in the table below.

        Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      1 (D) - 2 (SD)
      3 (B) - 4 (U)      		 UP Below 1 Ω
      1 (D) - 2 (SD)
      4 (U) - 5 (SU)      		 OFF Below 1 Ω
      2 (SD) - 3 (B)
      4 (U) - 5 (SU)      		 DOWN Below 1 Ω

      If the result is not specified, replace the rear power window switch assembly.

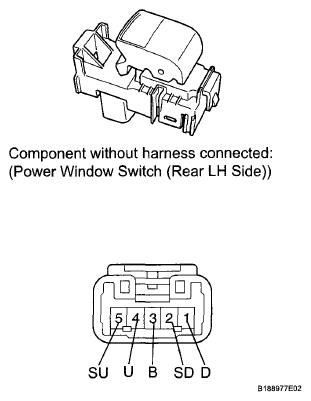

      Fig 1: Identifying Rear LH Power Window Switch Assembly Connector Terminals
      G06015897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Rear RH Side:
      1. Measure the resistance when the switch is operated according to the value(s) in the table below.

        Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      1 (D) - 2 (SD)
      3 (B) - 4 (U)      		 UP Below 1 Ω
      1 (D) - 2 (SD)
      4 (U) - 5 (SU)      		 OFF Below 1 Ω
      2 (SD) - 3 (B)
      4 (U) - 5 (SU)      		 DOWN Below 1 Ω

      If the result is not specified, replace the rear power window switch assembly.
