Rear Seat Assembly: Reassembly

  1. INSTALL BENCH TYPE REAR SEAT CUSHION COVER
    1. Using hog ring pliers, install the rear seat cushion cover sub-assembly with 12 new hog rings.

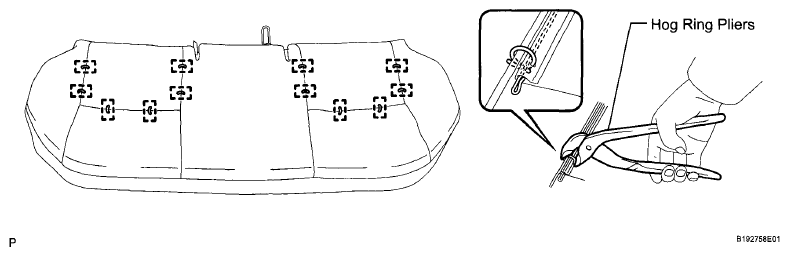

      Fig 1: Identifying Rear Seat Cushion Cover Sub-Assembly With 12 Hog Rings
      G06015165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
    2. Using hog ring pliers, install the rear seat cushion cover sub-assembly with 27 new hog rings.

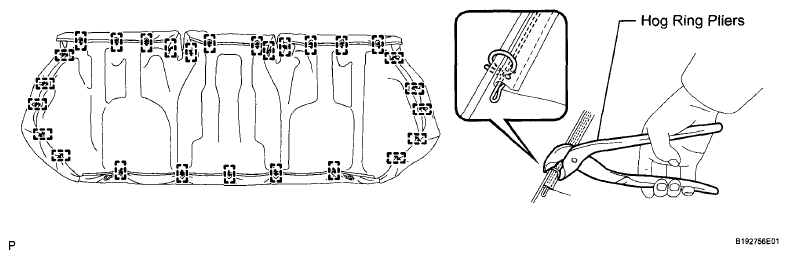

    Fig 2: Identifying Rear Seat Cushion Cover Sub-Assembly With Hog Rings
    G06015166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.
  2. INSTALL REAR SEAT BELT HOOK RH
    1. Install the rear seat belt hook RH with the clip.

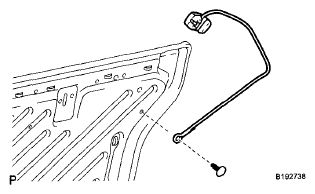

    Fig 3: Identifying Clip And Rear Seat Belt Hook RH
    G06015162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SEPARATE TYPE REAR SEATBACK COVER RH
    1. Using hog ring pliers, install the separate type rear seatback cover RH to the separate type rear seatback pad RH with 2 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.

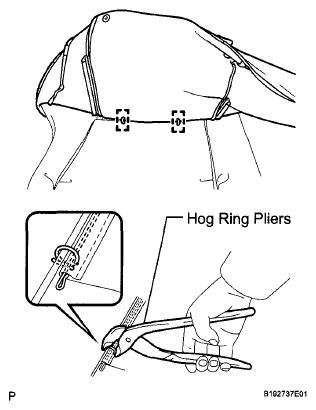

      Fig 4: Installing Separate Type Rear Seatback Cover
      G06015168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rod to the separate type rear seatback cover RH.
    3. Insert the rod to the separate type rear seatback pad RH as shown in the illustration.

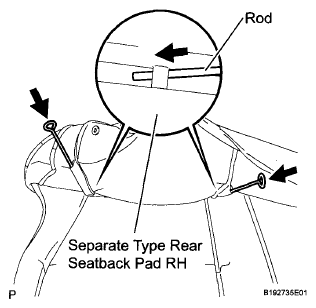

      Fig 5: Installing Rod
      G06015169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using hog ring pliers, install the separate type rear seatback cover RH to the separate type rear seatback pad RH with 4 new hog rings.
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.

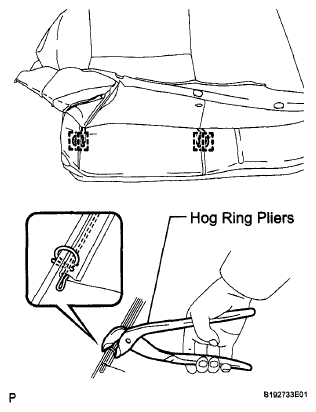

    Fig 6: Installing Separate Type Rear Seatback Cover
    G06015170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR SEATBACK COVER WITH PAD RH
    1. Temporarily install the rear seatback cover with pad RH to the rear seatback frame sub-assembly RH.
    2. Engage the 4 claws and install the 2 rear seat center headrest supports.

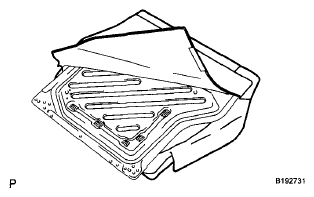

      Fig 7: Installing Rear Seatback Cover
      G06015158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

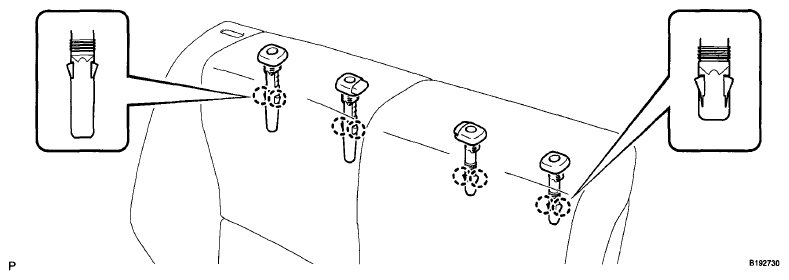

      Fig 8: Identifying Rear Seat Headrest Supports Claws
      G06015157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 4 claws and install the 2 rear seat headrest supports.
    4. Engage the 2 claws.
    5. Install the rear seat shoulder belt guide RH with the screw.

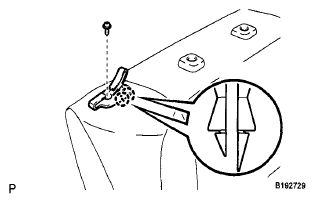

      Fig 9: Identifying Rear Seat Headrest Supports Claws
      G06015156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using hog ring pliers, install 2 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.

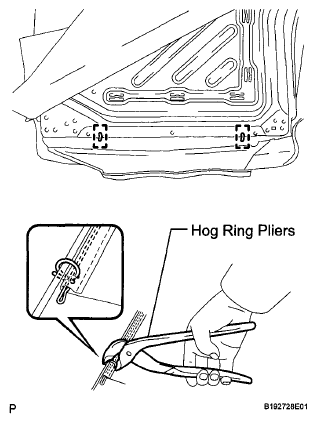

      Fig 10: Installing Hog Rings
      G06015174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Engage the 5 hooks.

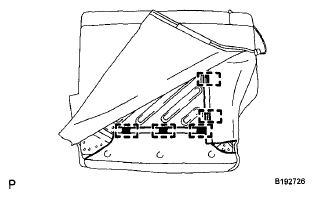

      Fig 11: Identifying Hooks
      G06015154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Fasten the rear seatback cover with pad RH.

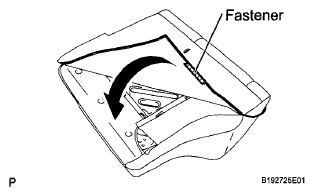

      Fig 12: Installing Rear Seatback Cover With Pad RH
      G06015176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Install the 3 clips.

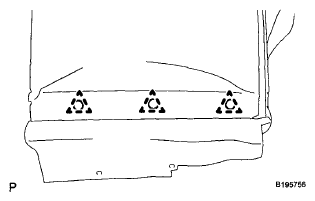

    Fig 13: Identifying Rear Seatback Cover With Pad RH Clips
    G06015152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY (w/ Center Armrest)
    1. Install the bush.

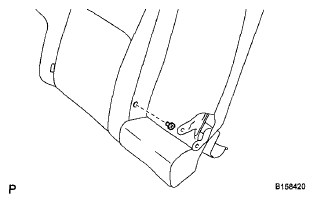

      Fig 14: Identifying Center Armrest Assembly Bush
      G06015151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the pin into the rear seatback.

      3. Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

    3. Install the rear seat center armrest assembly with the bolt and bush.

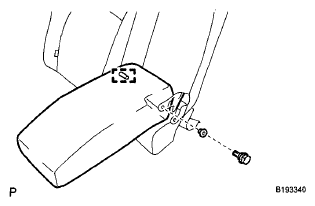

    Fig 15: Identifying Center Armrest Assembly Bolt And Bush
    G06015150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL CENTER ARMREST HINGE COVER (w/ Center Armrest)
    1. Engage the claw and install the center armrest hinge cover as shown in the illustration.

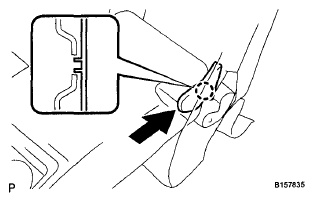

    Fig 16: Installing Center Armrest Hinge Cover
    G06015180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR SEAT BELT HOOK LH
    1. Install the rear seat belt hook LH with the clip.

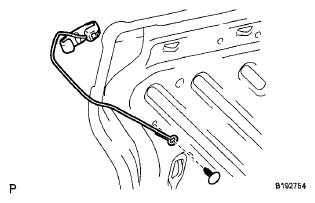

    Fig 17: Identifying Clip And Rear Seat Belt Hook LH
    G06015148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SEPARATE TYPE REAR SEATBACK COVER LH
    1. Using hog ring pliers, install the separate type rear seatback cover LH to the separate type rear seatback pad LH with 2 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
    2. Install the rod to the separate type rear seatback cover LH.

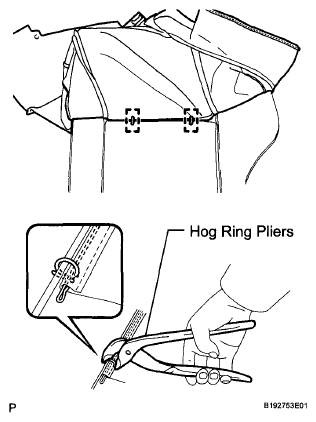

      Fig 18: Installing Separate Type Rear Seatback Cover LH
      G06015182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Insert the rod to the separate type rear seatback pad LH as shown in the illustration.

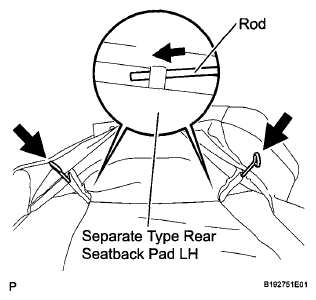

      Fig 19: Installing Rod
      G06015183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using hog ring pliers, install the separate type rear seatback cover LH to the separate type rear seatback pad LH with 4 new hog rings.
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.

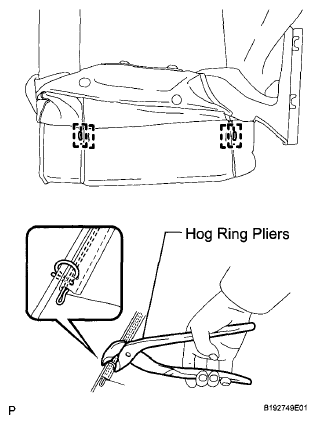

    Fig 20: Installing Separate Type Rear Seatback Cover LH
    G06015184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR SEATBACK COVER WITH PAD LH
    1. Temporarily install the rear seatback cover with pad LH to the rear seatback frame sub-assembly LH.

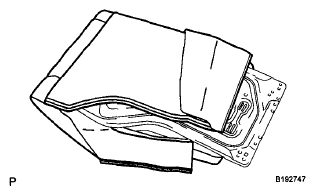

      Fig 21: Identifying Rear Seatback Cover
      G06015144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 claws and install the 2 rear seat headrest supports.

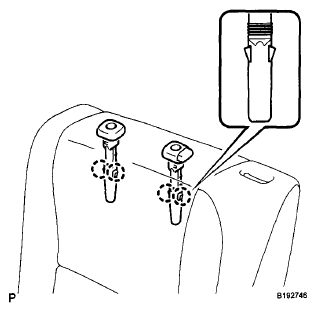

      Fig 22: Identifying Rear Seat Headrest Supports And Claws
      G06015143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 claws.
    4. Install the rear seat shoulder belt guide LH with the screw.

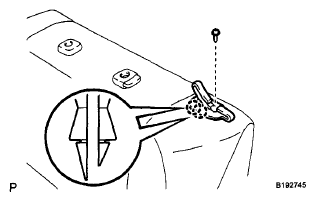

      Fig 23: Identifying Rear Seat Shoulder Belt Guide LH Claw And Screw
      G06015142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using hog ring pliers, install 2 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.

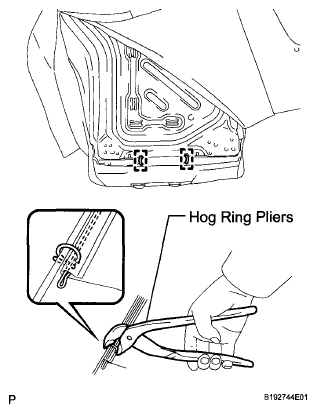

      Fig 24: Installing Hog Rings
      G06015188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Engage the 4 hooks.

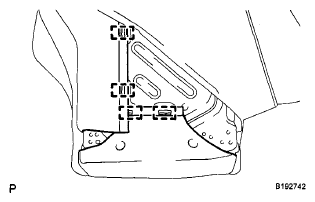

      Fig 25: Identifying Hooks
      G06015140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Fasten the rear seatback cover with pad LH.

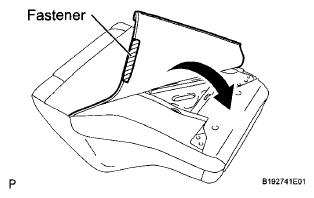

      Fig 26: Installing Rear Seatback Cover With Pad LH
      G06015190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Install the 2 clips.
