Rear Seat Assembly: Disassembly

  1. REMOVE REAR SEATBACK COVER WITH PAD LH
    1. Using a clip remover, remove the 2 clips.
      Fig 1: Identifying Clips
      G06015138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

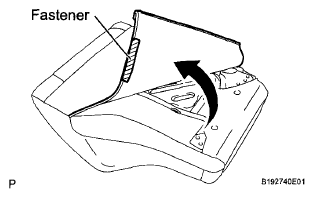

    2. Unfasten and flip back the rear seatback cover with pad LH as shown in the illustration.
      Fig 2: Removing And Flip Back Rear Seatback Cover
      G06015139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 hooks.
      Fig 3: Identifying Hooks
      G06015140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

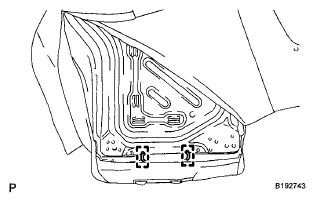

    4. Remove the 2 hog rings.
      Fig 4: Identifying Hog Rings
      G06015141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the screw.
    6. Disengage the 2 claws and remove the rear seat shoulder belt guide LH.
      Fig 5: Identifying Rear Seat Shoulder Belt Guide LH Claw And Screw
      G06015142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the 4 claws and remove the 2 rear seat headrest supports.
      Fig 6: Identifying Rear Seat Headrest Supports And Claws
      G06015143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the rear seatback cover with pad LH from the rear seatback frame sub-assembly LH.
    Fig 7: Identifying Rear Seatback Cover
    G06015144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SEPARATE TYPE REAR SEATBACK COVER LH
    1. Remove the 4 hog rings.

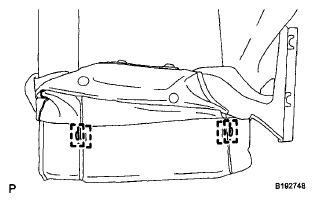

      Fig 8: Identifying Hog Rings
      G06015145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

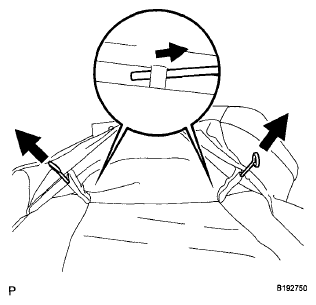

    2. Remove the rod from the separate type rear seatback cover LH as shown in the illustration.
      Fig 9: Removing Rod
      G06015146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

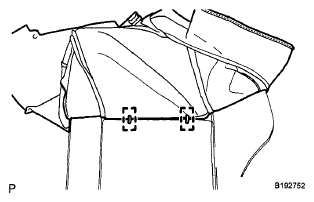

    3. Remove the 2 hog rings and the separate type rear seatback cover LH.
    Fig 10: Identifying Hog Rings
    G06015147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT BELT HOOK LH
    1. Remove the clip and the rear seat belt hook LH.
    Fig 11: Identifying Clip And Rear Seat Belt Hook LH
    G06015148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CENTER ARMREST HINGE COVER (w/ Center Armrest)
    1. Using a screwdriver with the tip taped, disengage the claw and remove the center armrest hinge cover as shown in the illustration.

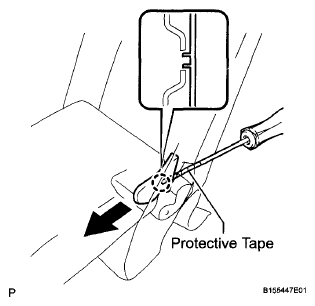

    Fig 12: Removing Center Armrest Hinge Cover
    G06015149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (w/ Center Armrest)
    1. Remove the bolt and bush.
    2. Separate the pin and remove the center armrest assembly.
      Fig 13: Identifying Center Armrest Assembly Bolt And Bush
      G06015150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bush.
    Fig 14: Identifying Center Armrest Assembly Bush
    G06015151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SEATBACK COVER WITH PAD RH
    1. Using a clip remover, remove the 3 clips.
      Fig 15: Identifying Rear Seatback Cover With Pad RH Clips
      G06015152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

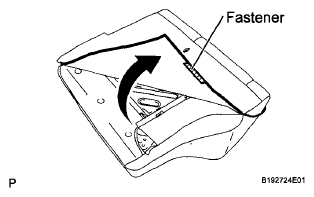

    2. Unfasten and flip back the rear seatback cover with pad LH as shown in the illustration.
      Fig 16: Removing And Flip Back Rear Seatback Cover
      G06015153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 5 hooks.
      Fig 17: Identifying Hooks
      G06015154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 hog rings.

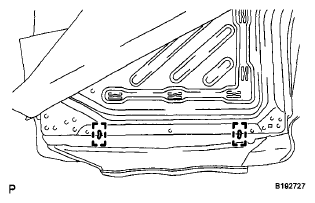

      Fig 18: Identifying Hog Rings
      G06015155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the screw.
    6. Disengage the 2 claws and remove the rear seat shoulder belt guide RH.
    7. Disengage the 4 claws and remove the 2 rear seat headrest supports.
      Fig 19: Identifying Rear Seat Headrest Supports Claws
      G06015156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 20: Identifying Rear Seat Headrest Supports Claws
      G06015157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Disengage the 4 claws and remove the 2 rear seat center headrest supports.
    9. Remove the rear seatback cover with pad RH from the rear seatback frame sub-assembly RH.
    Fig 21: Removing Rear Seatback Cover With Pad
    G06015158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH

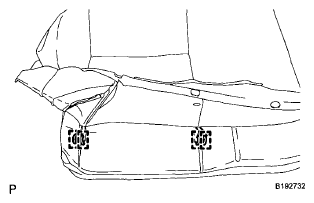

    1. Remove the 4 hog rings.
      Fig 22: Identifying Separate Type Rear Seatback Cover Hog Rings
      G06015159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

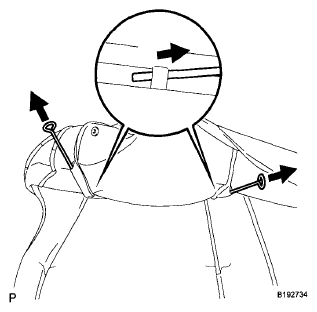

    2. Remove the rod from the separate type rear seatback cover RH as shown in the illustration.
      Fig 23: Removing Rod
      G06015160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 hog rings and the separate type rear seatback cover RH.

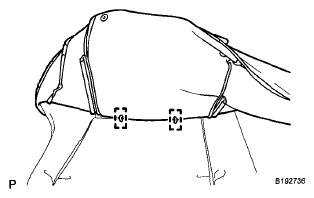

    Fig 24: Identifying Separate Type Rear Seatback Cover RH Hog Rings
    G06015161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR SEAT BELT HOOK RH
    1. Remove the clip and the rear seat belt hook RH.
    Fig 25: Identifying Clip And Rear Seat Belt Hook RH
    G06015162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE BENCH TYPE REAR SEAT CUSHION COVER

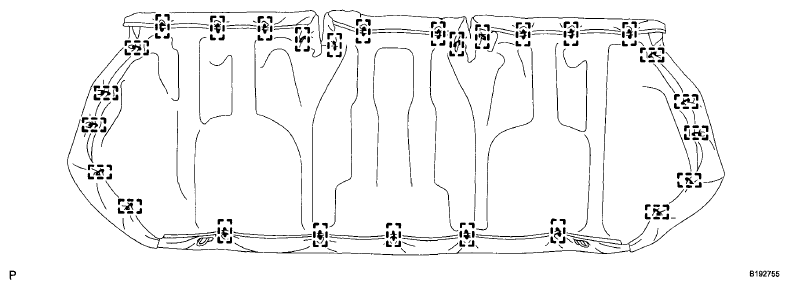

    1. Remove the 27 hog rings.
      Fig 26: Identifying Bench Type Rear Seat Cushion Cover Hog Rings
      G06015163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 12 hog rings and the rear seat cushion cover sub-assembly.

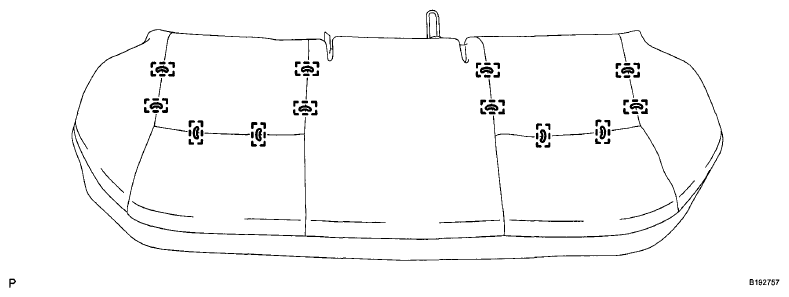

    Fig 27: Identifying Rear Seat Cushion Cover Sub-Assembly Hog Rings
    G06015164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
