Power Seat Switch: Removal

  1. REMOVE FRONT SEAT HEADREST ASSEMBLY
  2. REMOVE OUTER SEAT TRACK COVER  (See REMOVAL )
  3. REMOVE INNER SEAT TRACK COVER  (See REMOVAL )
  4. REMOVE FRONT SEAT ASSEMBLY  (See REMOVAL )
  5. REMOVE RECLINING POWER SEAT SWITCH KNOB  (See DISASSEMBLY )
  6. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB  (See DISASSEMBLY )
  7. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY  (See DISASSEMBLY )
  8. REMOVE POWER SEAT SWITCH
    1. Remove the 3 screws.
    2. Disconnect the connector and remove the power seat switch.

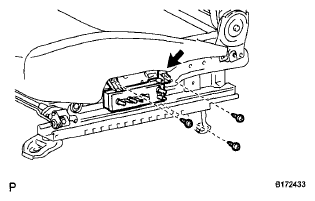

    Fig 1: Identifying Power Seat Switch Screws
    G06015066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
