Stop Light (Except TMC Made): Notes

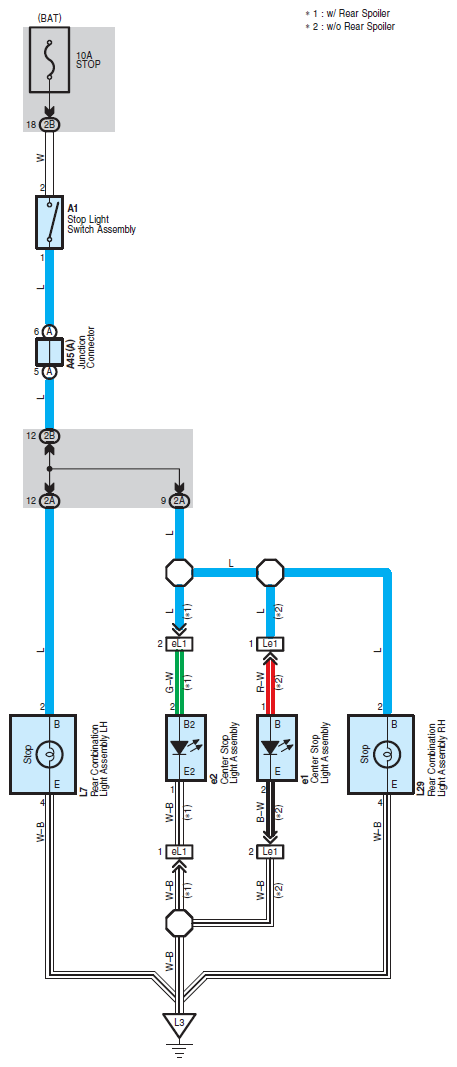

Fig 1: Stop Light (Except TMC Made) - Circuit Diagram

G07604932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
