EPS (Except TMC Made): Notes

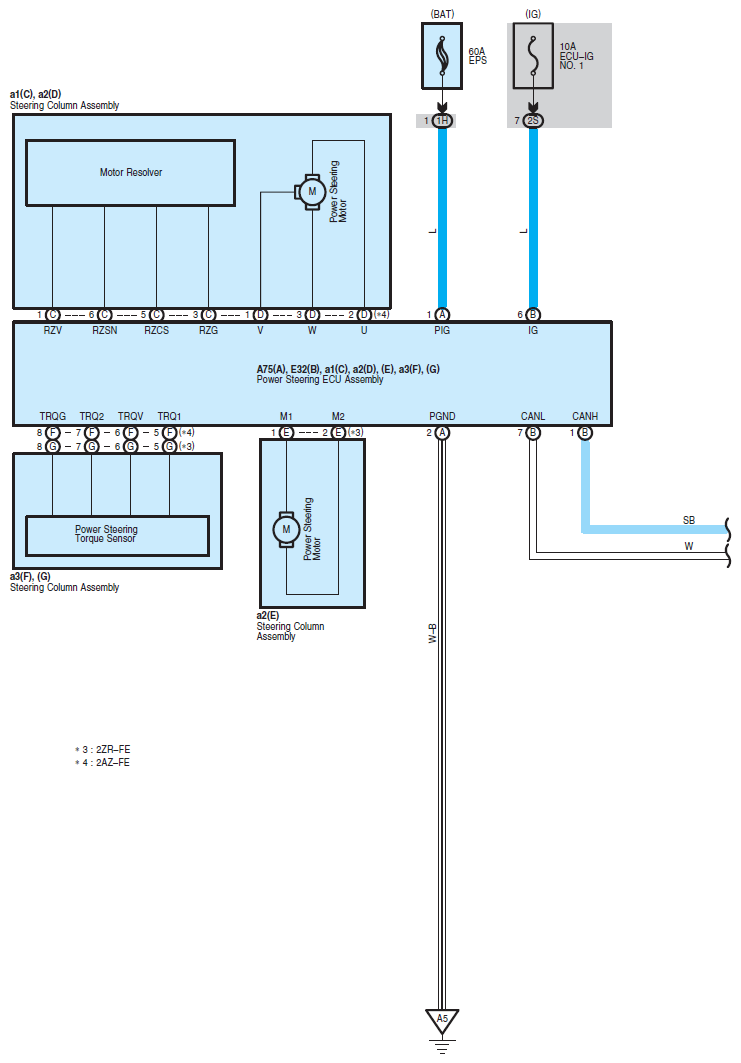

Fig 1: EPS (Except TMC Made) - Circuit Diagram (1 Of 4)
G07605016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

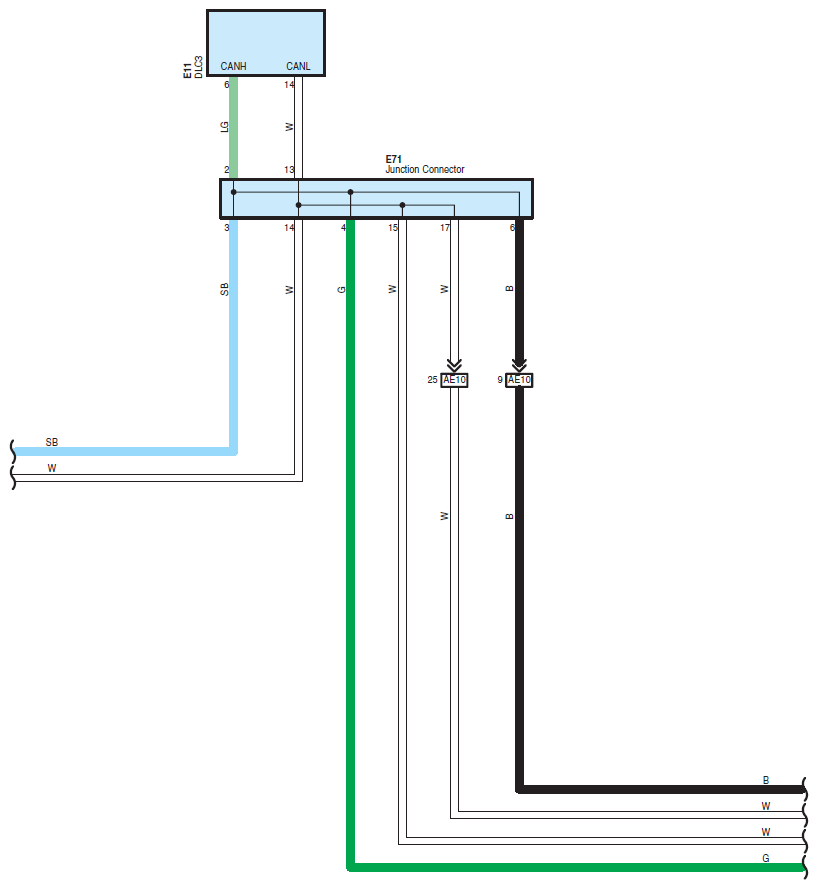

Fig 2: EPS (Except TMC Made) - Circuit Diagram (2 Of 4)
G07605017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

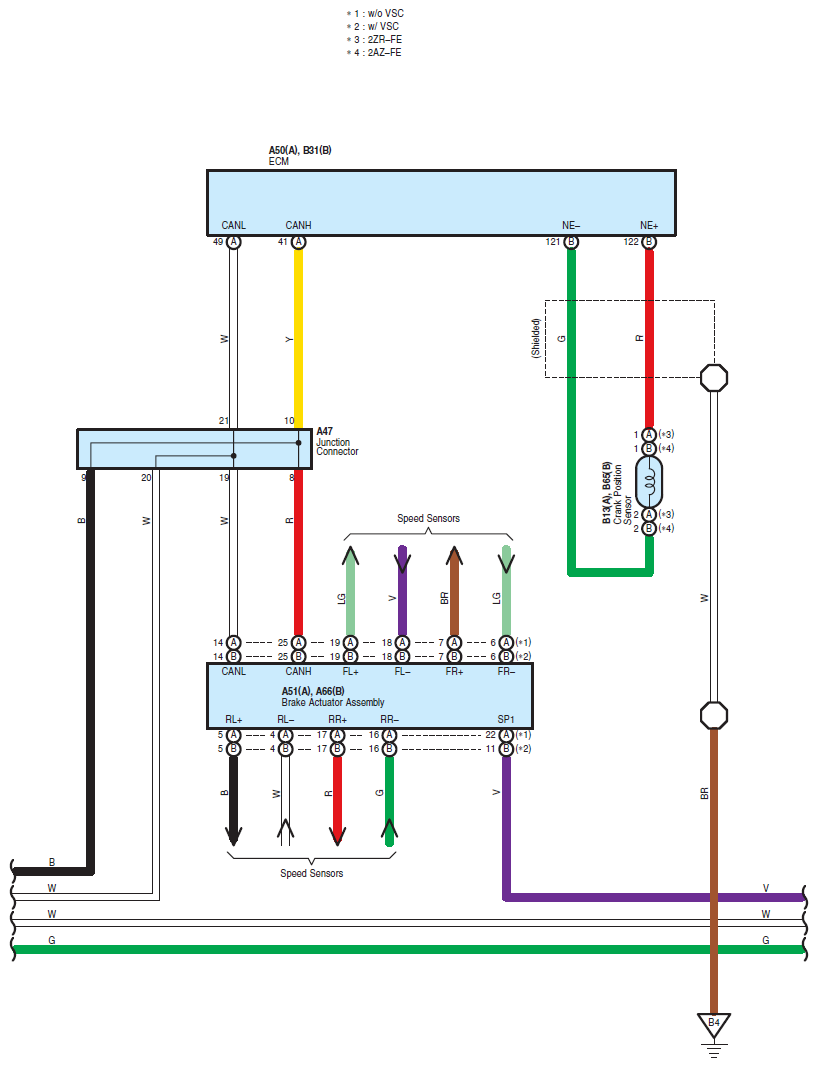

Fig 3: EPS (Except TMC Made) - Circuit Diagram (3 Of 4)
G07605018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

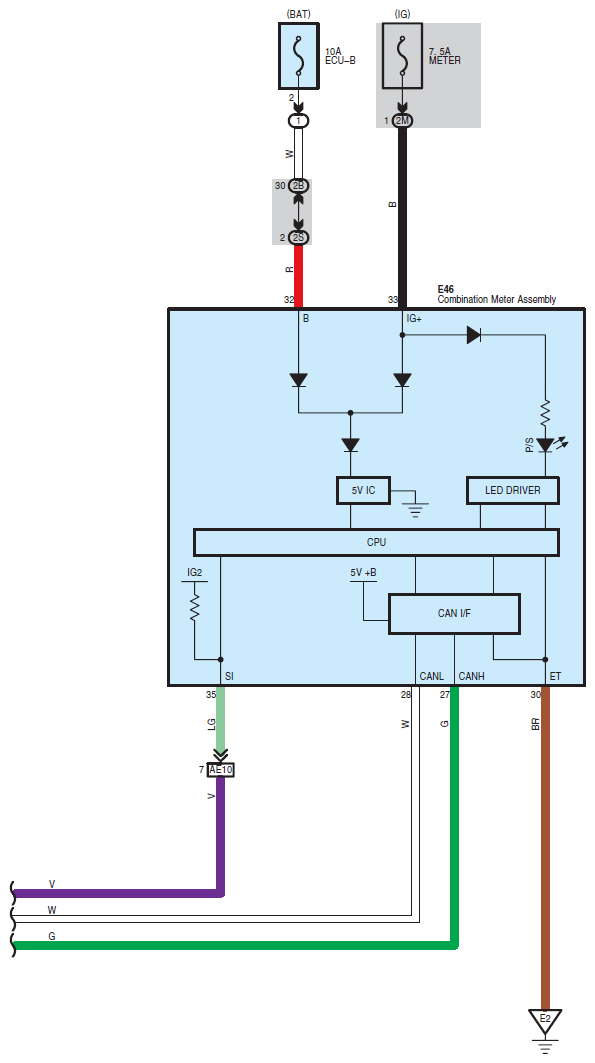

Fig 4: EPS (Except TMC Made) - Circuit Diagram (4 Of 4)
G07605019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
