Fuel Injector: Components

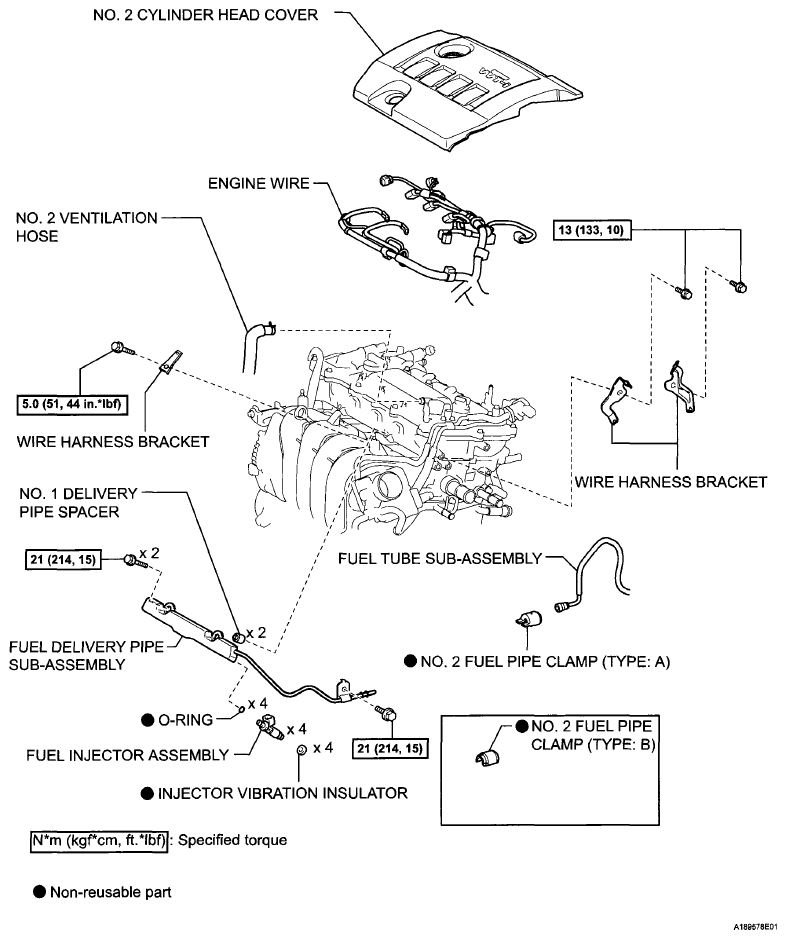

Fig 1: Fuel Injector Replacement Components With Torque Specifications

G06009855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
