Center Power Outlet Socket: Installation

  1. INSTALL CENTER POWER OUTLET SOCKET COVER
    1. Engage the 2 claws and install the center power outlet socket cover.
    Fig 1: Installing Center Power Outlet Socket Cover And Claws
    G06016587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CENTER POWER OUTLET SOCKET ASSEMBLY
    1. Engage the claw and install the center power outlet socket assembly.
      Fig 2: Identifying Center Power Outlet Socket Assembly Claws
      G06016588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the No. 1 console box silencer pad to secure the wire harness.
      Fig 3: Identifying No. 1 Console Box Silencer Pad
      G06016584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector.
  3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION )
  4. INSTALL INSTRUMENT PANEL BOX ASSEMBLY  (See INSTALLATION )
  5. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )

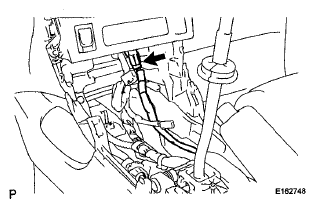

    Fig 4: Locating Center Power Outlet Socket Connector
    G06016583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  7. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  9. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH  (See INSTALLATION )
  10. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH  (See INSTALLATION )
