Stop Light (TMC Made): Notes

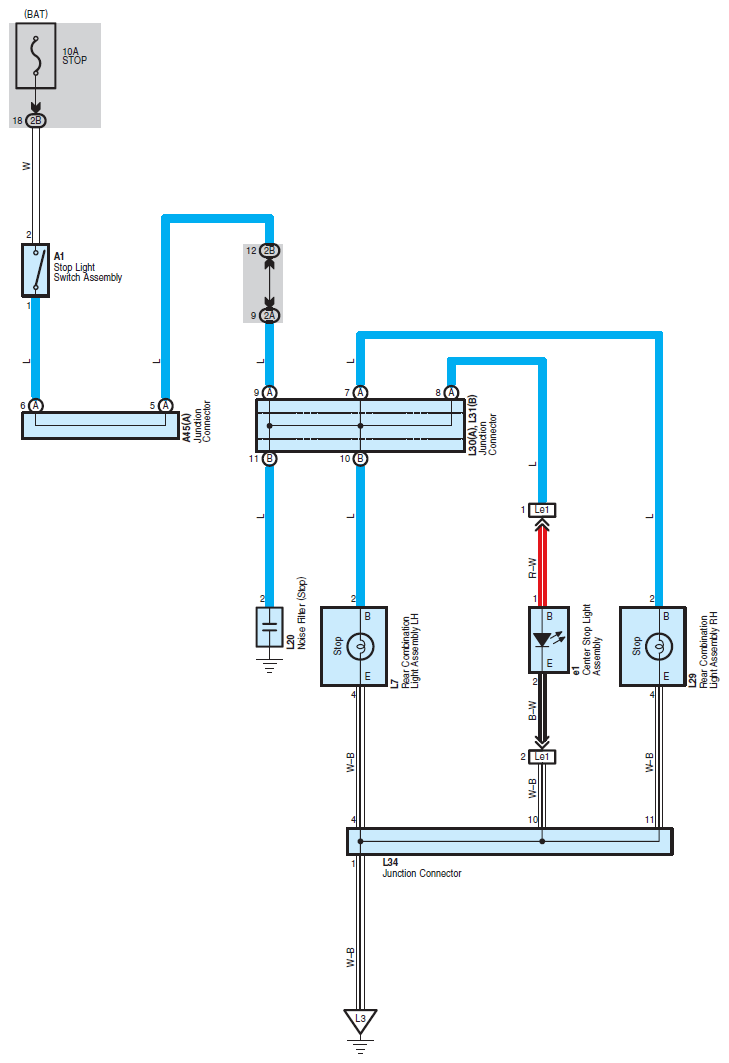

Fig 1: Stop Light (TMC Made) - Circuit Diagram

G07604783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
