Shift Lock (TMC Made): Notes

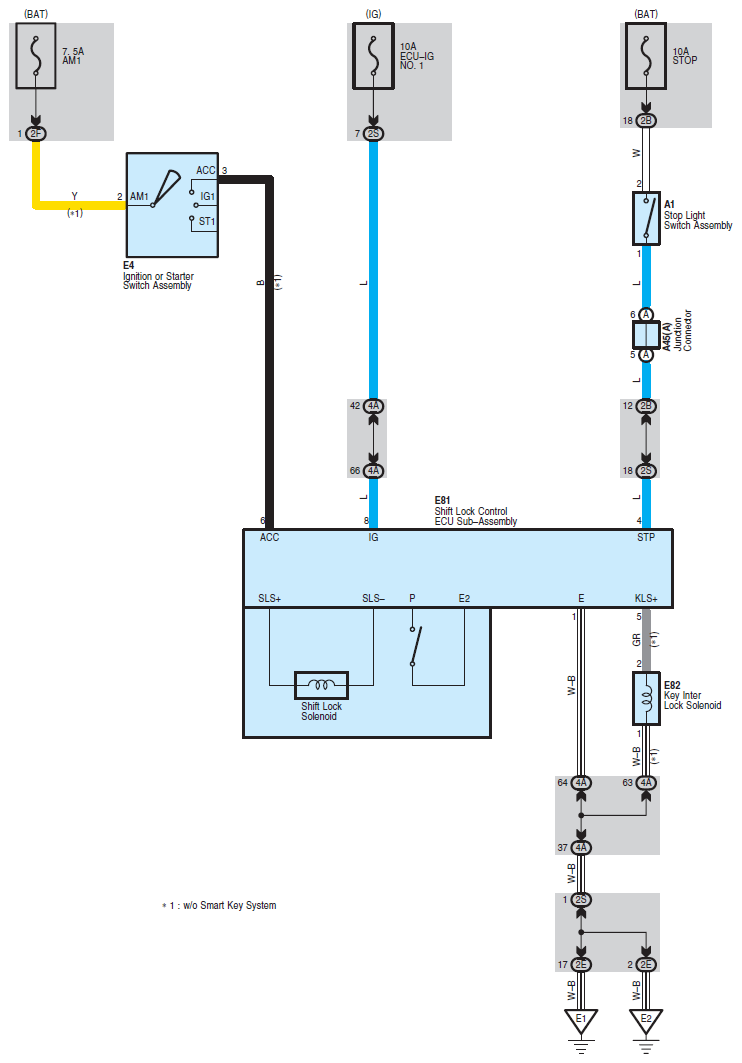

Fig 1: Shift Lock (TMC Made) - Circuit Diagram

G07604824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
