Power Seat (Except TMC Model): Notes

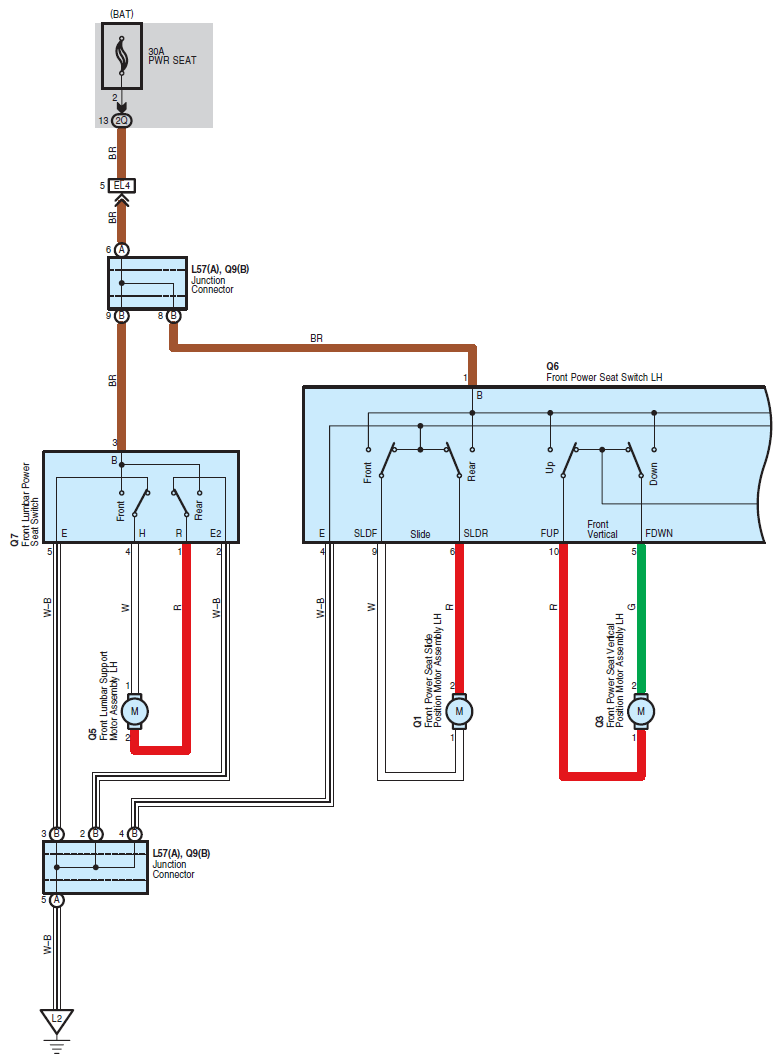

Fig 1: Power Seat (Except Tmc Model) - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

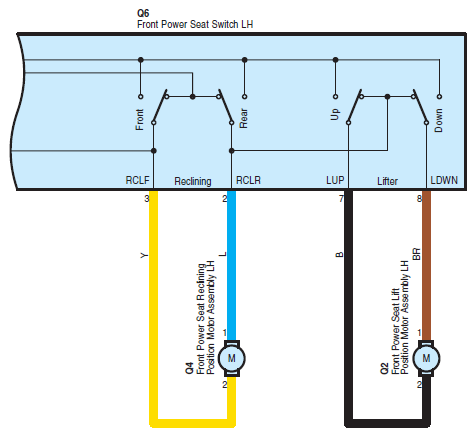

Fig 2: Power Seat (Except Tmc Model) - Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
