Ignition (TMC Made): Notes

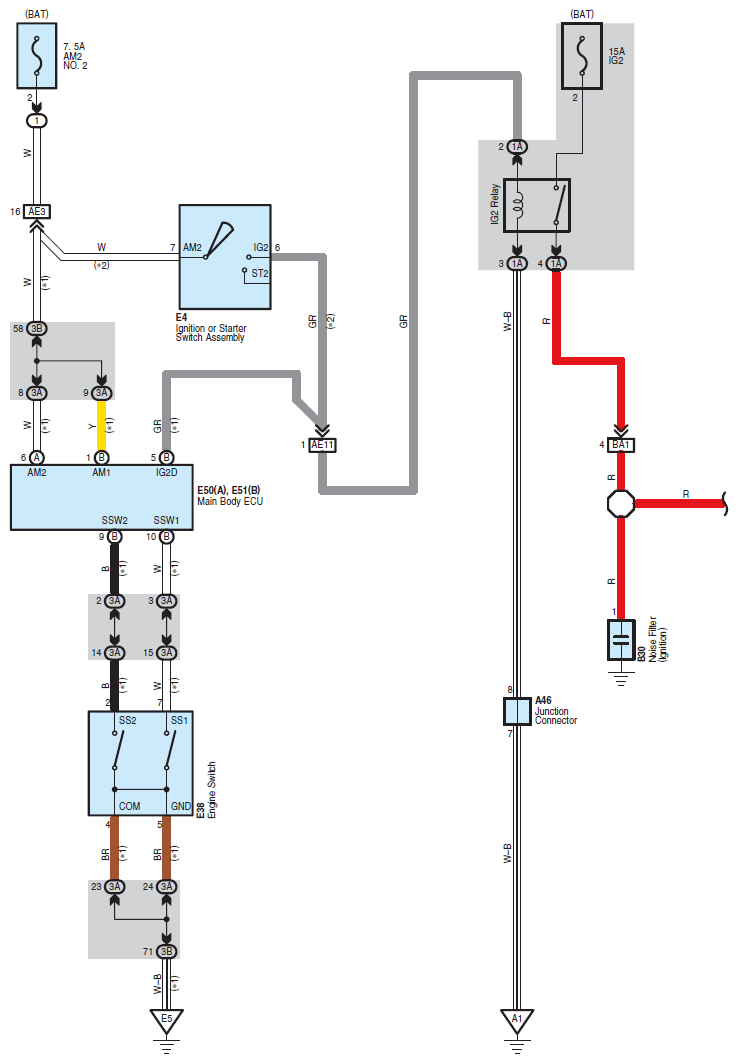

Fig 1: Ignition (TMC Made) - Circuit Diagram (1 Of 2)
G07604760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

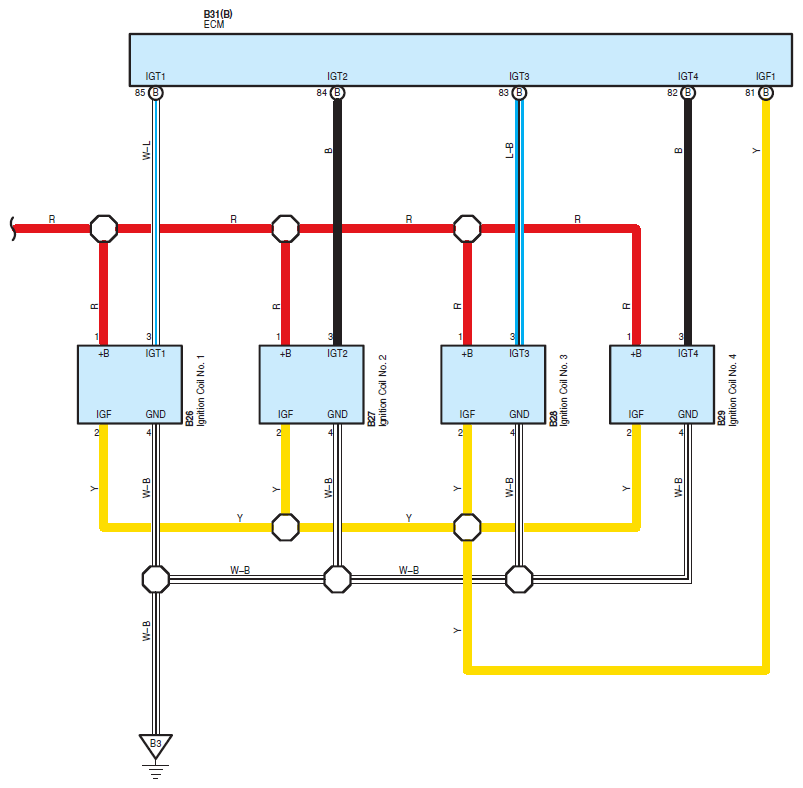

Fig 2: Ignition (TMC Made) - Circuit Diagram (2 Of 2)
G07604761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
