Ignition (Except TMC Made): Notes

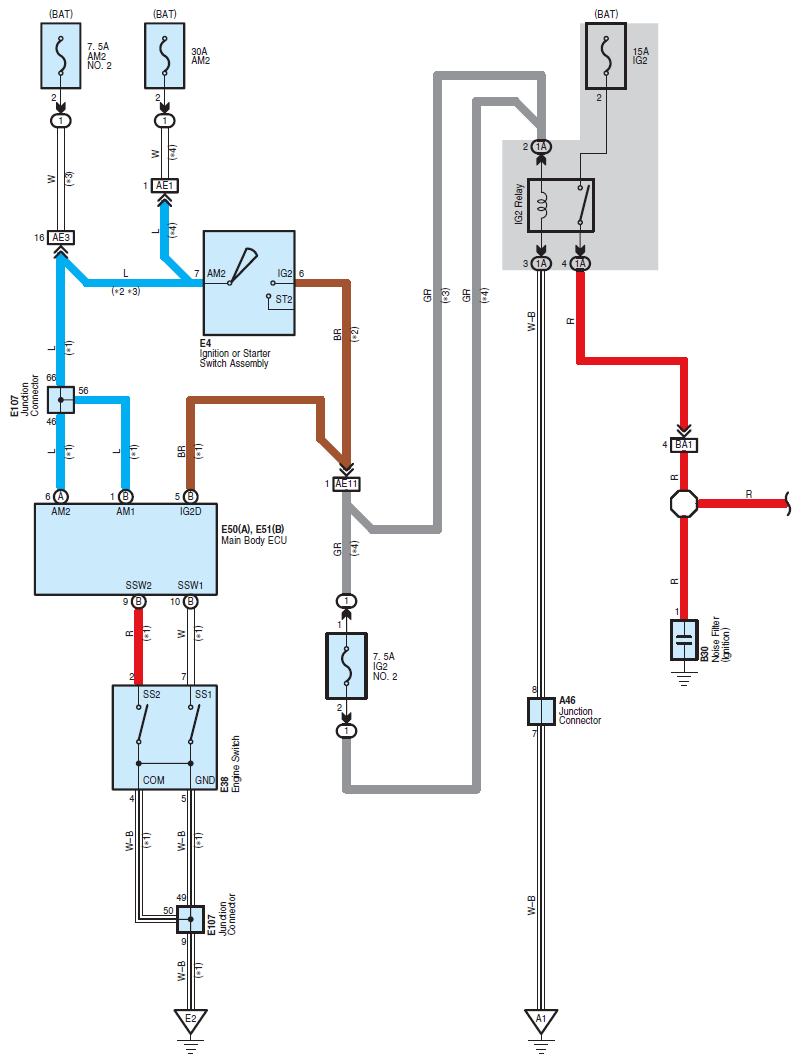

Fig 1: Ignition (Except TMC Made) - Circuit Diagram (1 Of 2)
G07604900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

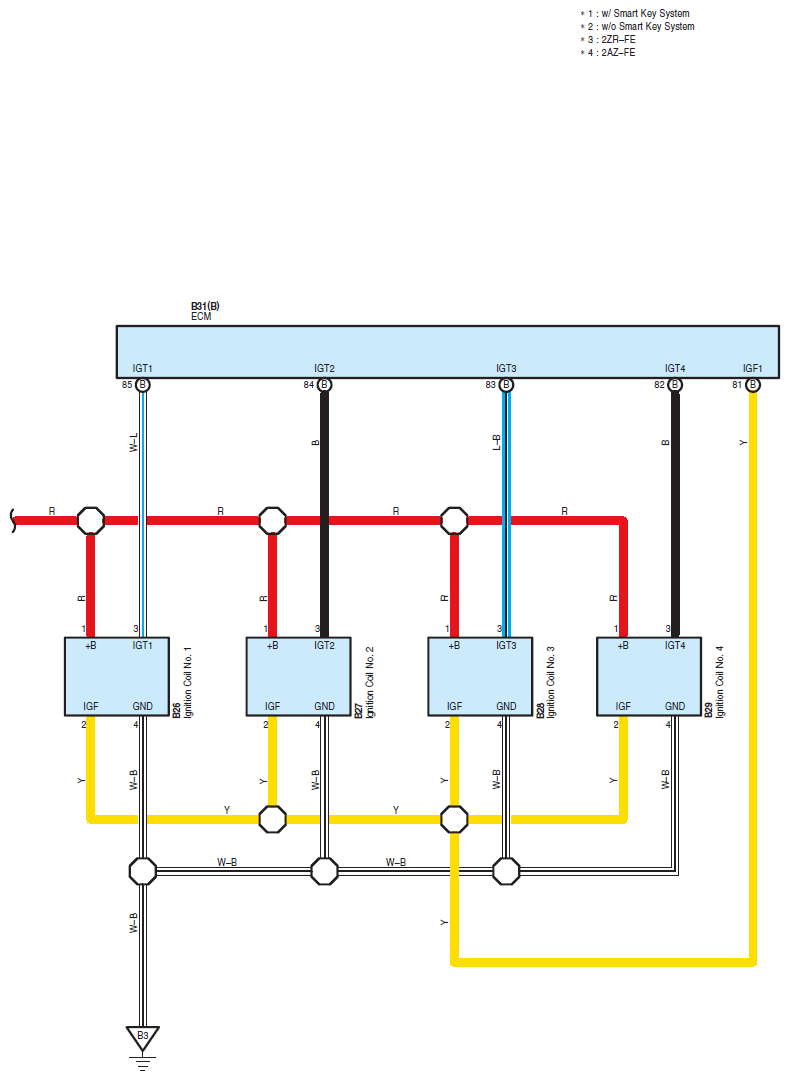

Fig 2: Ignition (Except TMC Made) - Circuit Diagram (2 Of 2)
G07604901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
