Headlight (TMC Made): Notes

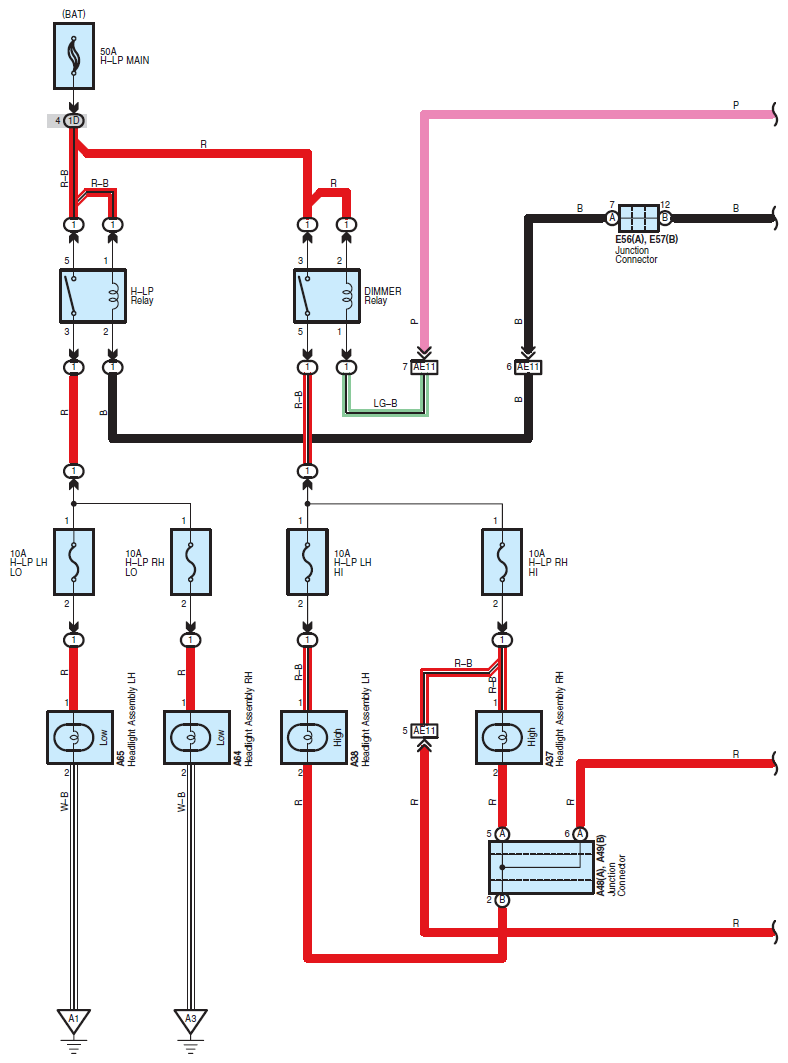

Fig 1: Headlight (TMC Made) - Circuit Diagram (1 Of 3)
G07604778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

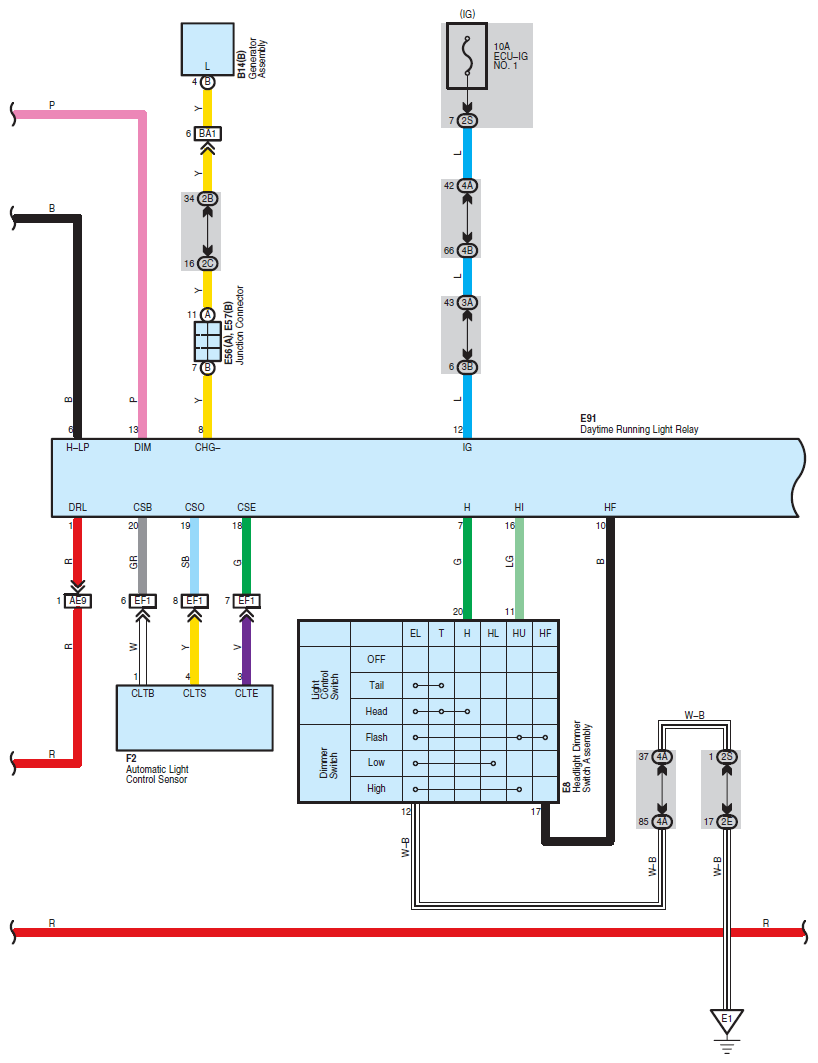

Fig 2: Headlight (TMC Made) - Circuit Diagram (2 Of 3)
G07604779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

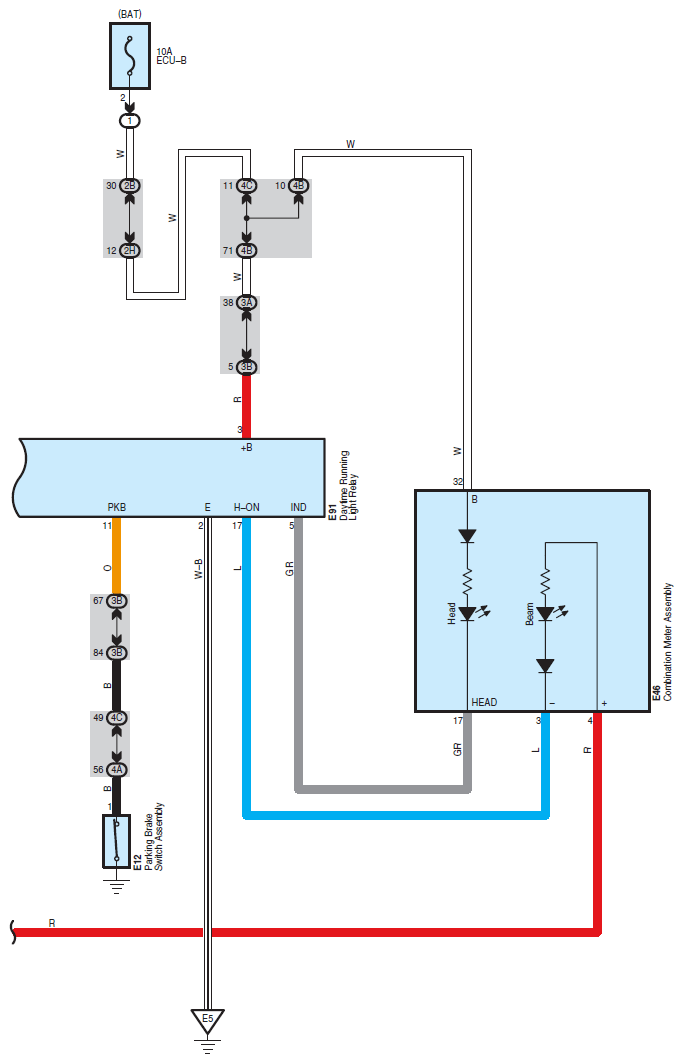

Fig 3: Headlight (TMC Made) - Circuit Diagram (3 Of 3)
G07604780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
