EPS (TMC Made): Notes

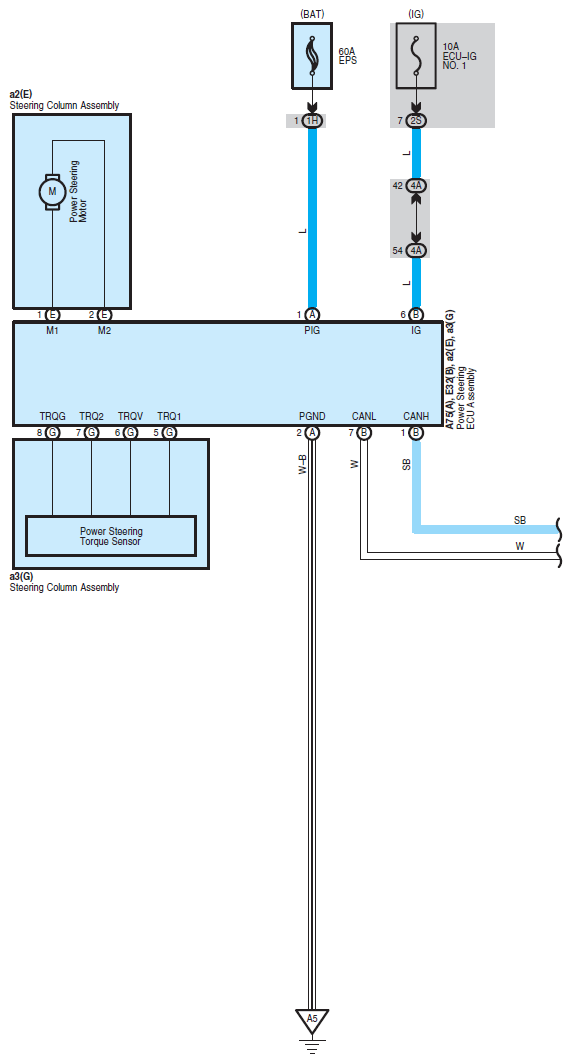

Fig 1: EPS (TMC Made) - Circuit Diagram (1 Of 4)
G07604846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

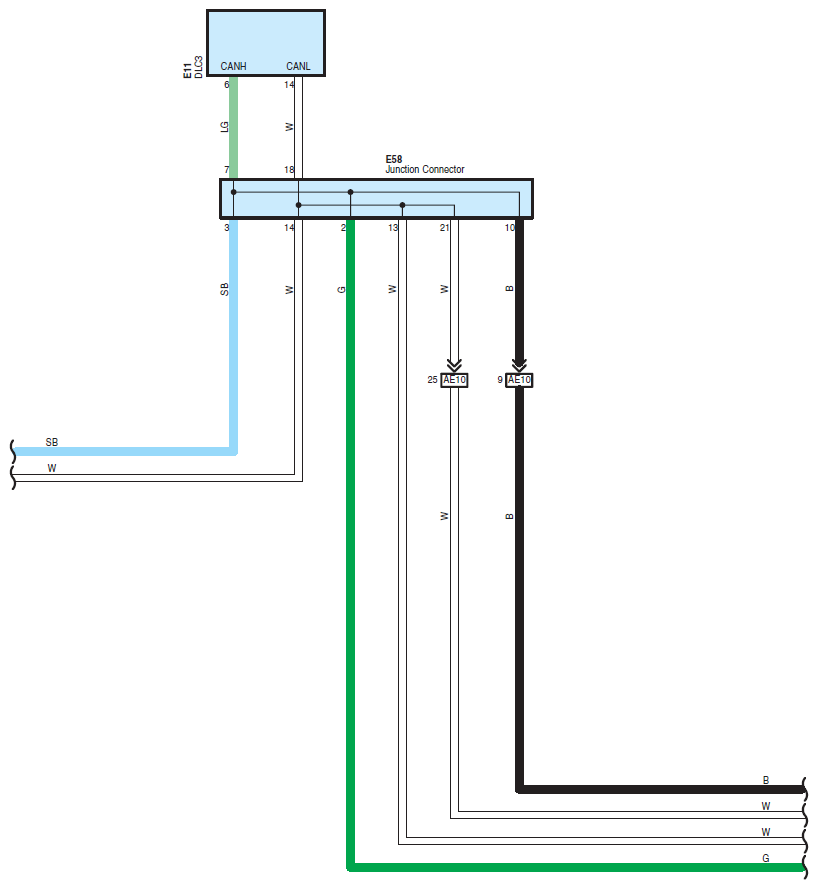

Fig 2: EPS (TMC Made) - Circuit Diagram (2 Of 4)
G07604847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

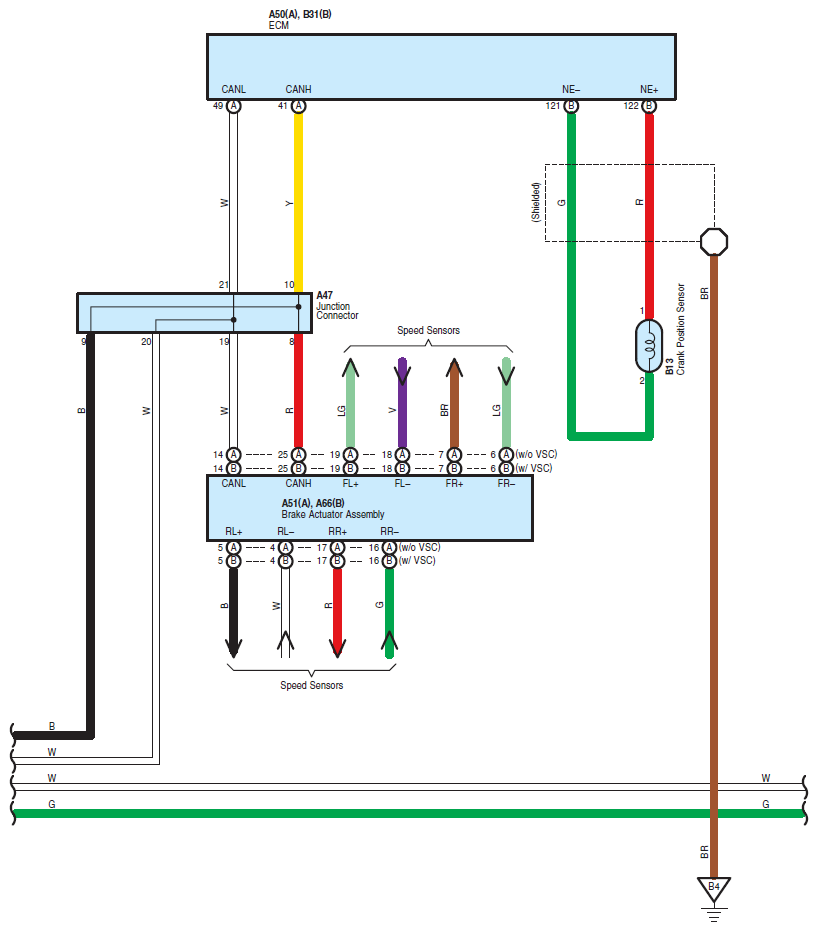

Fig 3: EPS (TMC Made) - Circuit Diagram (3 Of 4)
G07604848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

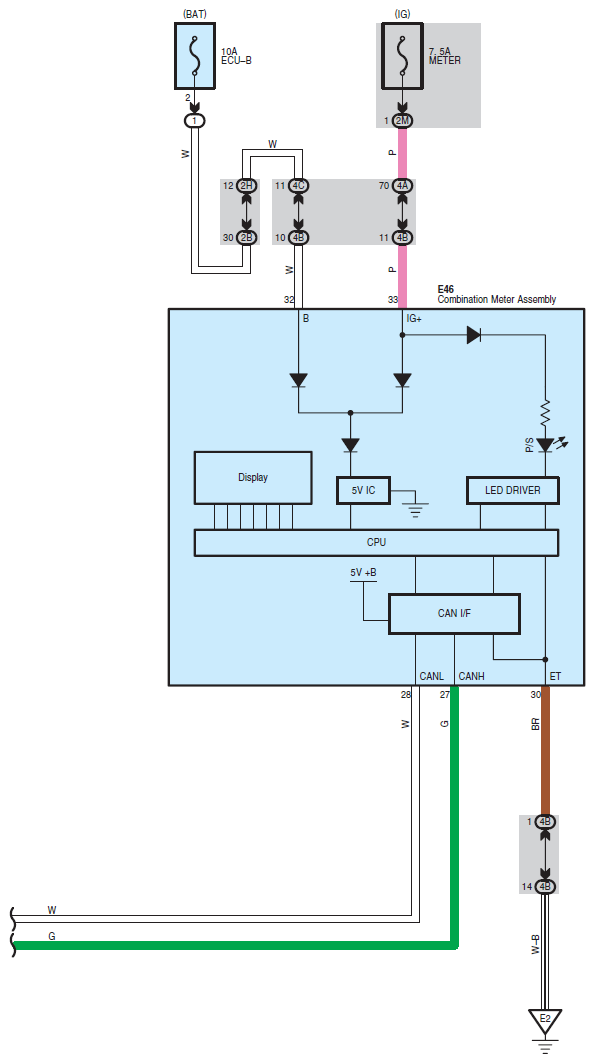

Fig 4: EPS (TMC Made) - Circuit Diagram (4 Of 4)
G07604849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
