Door Lock Control (TMC Made): Notes

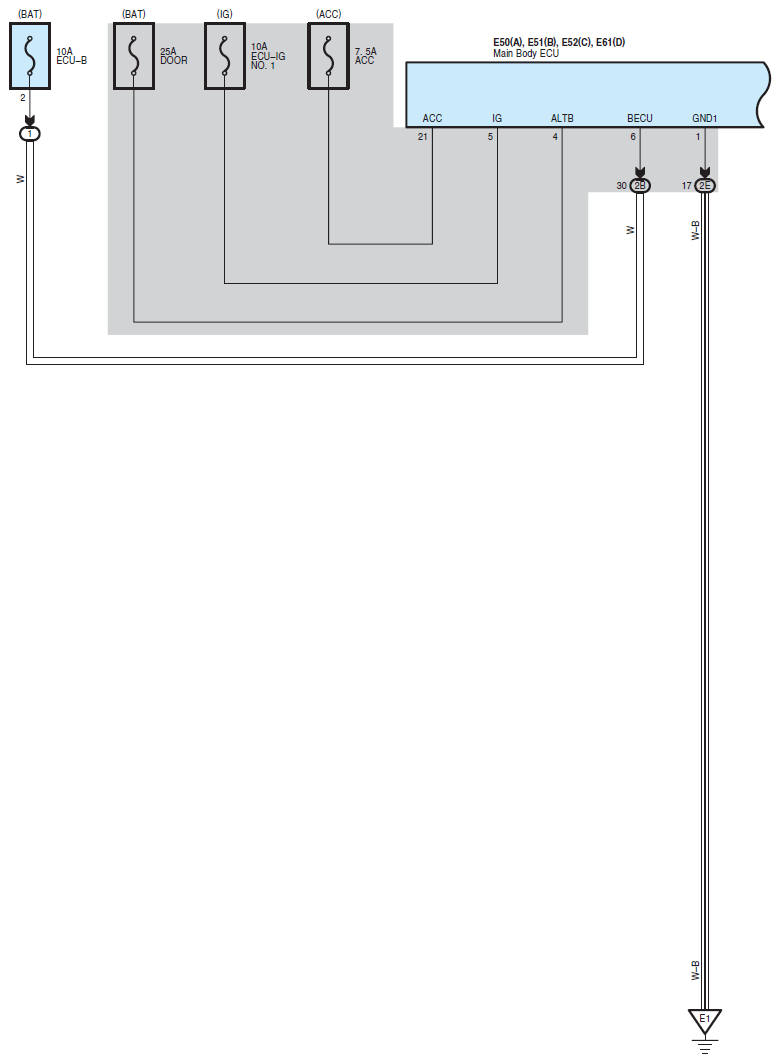

Fig 1: Door Lock Control (TMC Made) - Circuit Diagram (1 Of 5)
G07604833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

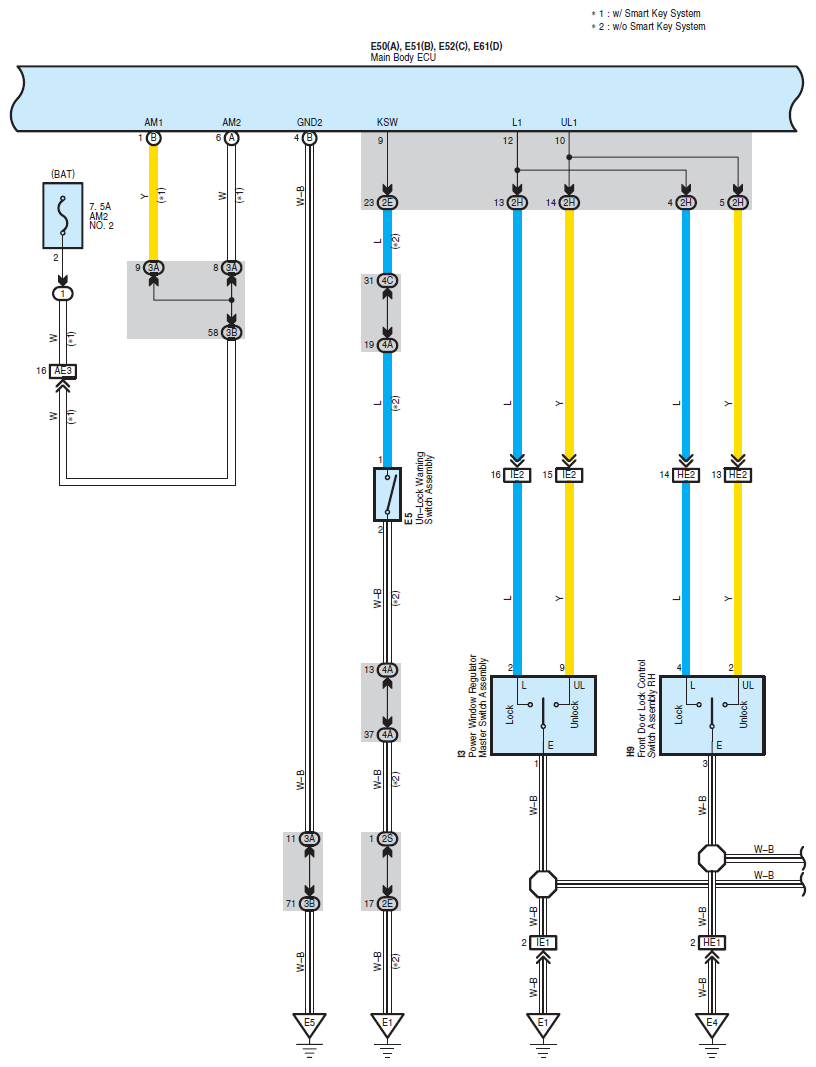

Fig 2: Door Lock Control (TMC Made) - Circuit Diagram (2 Of 5)
G07604834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

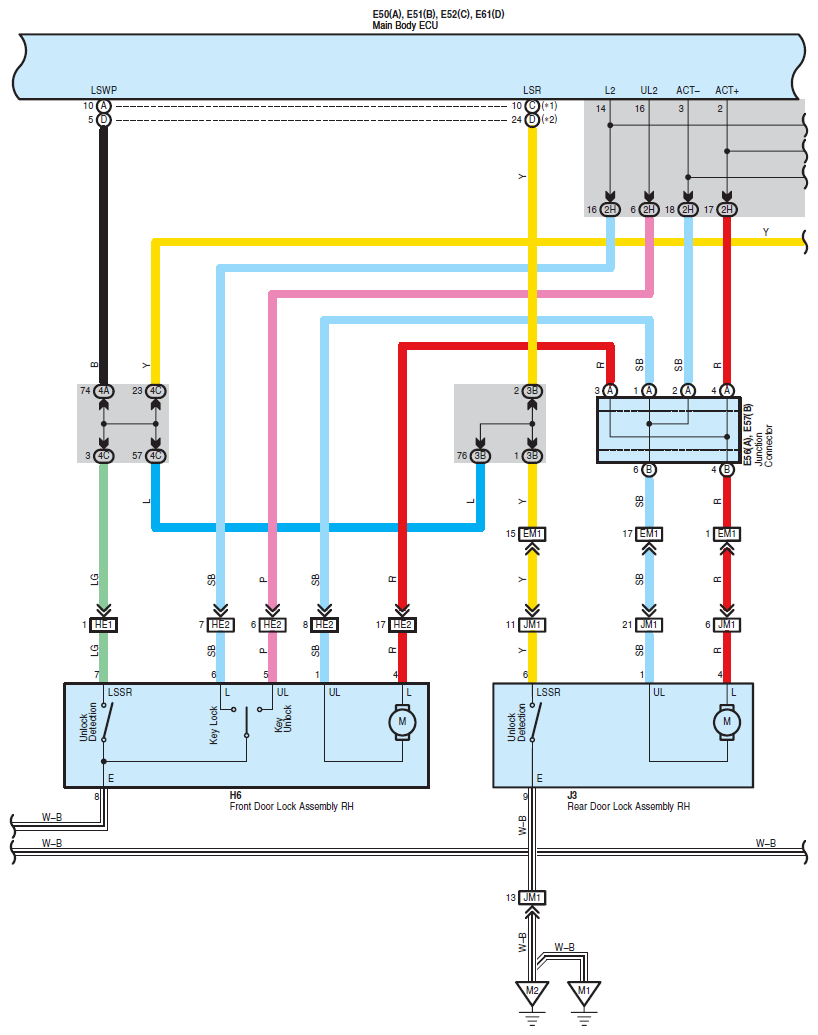

Fig 3: Door Lock Control (TMC Made) - Circuit Diagram (3 Of 5)
G07604835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

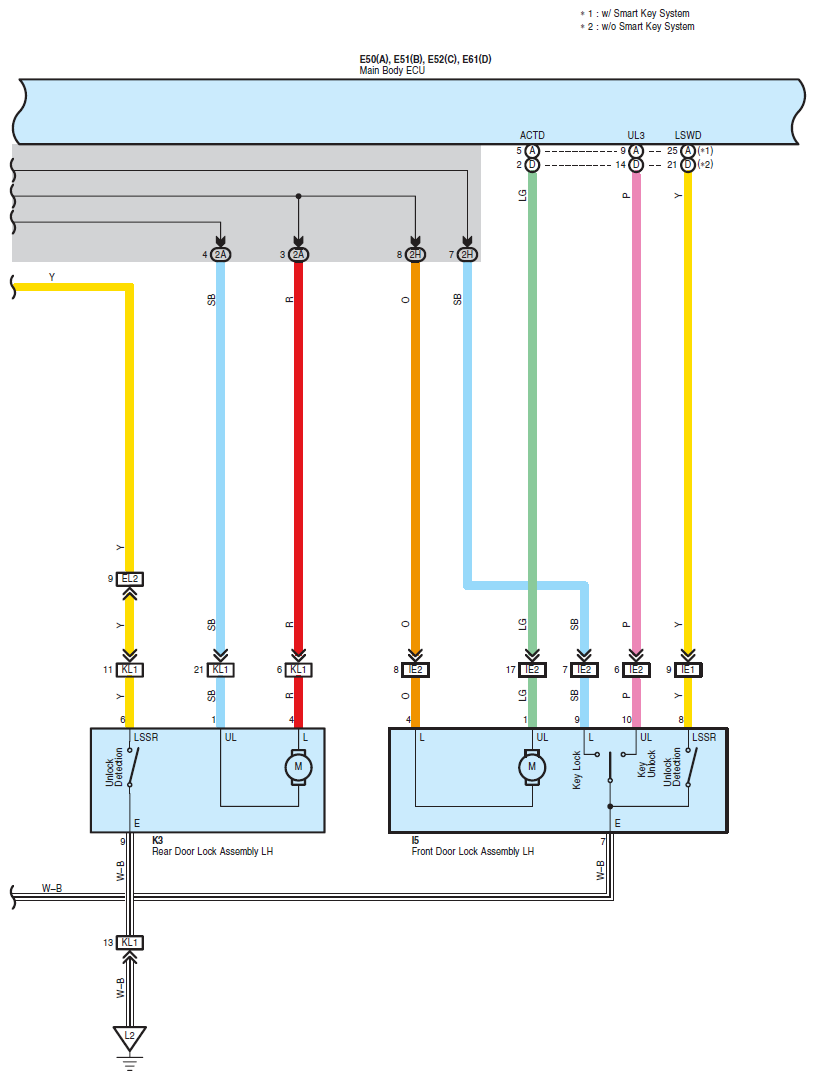

Fig 4: Door Lock Control (TMC Made) - Circuit Diagram (4 Of 5)
G07604836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

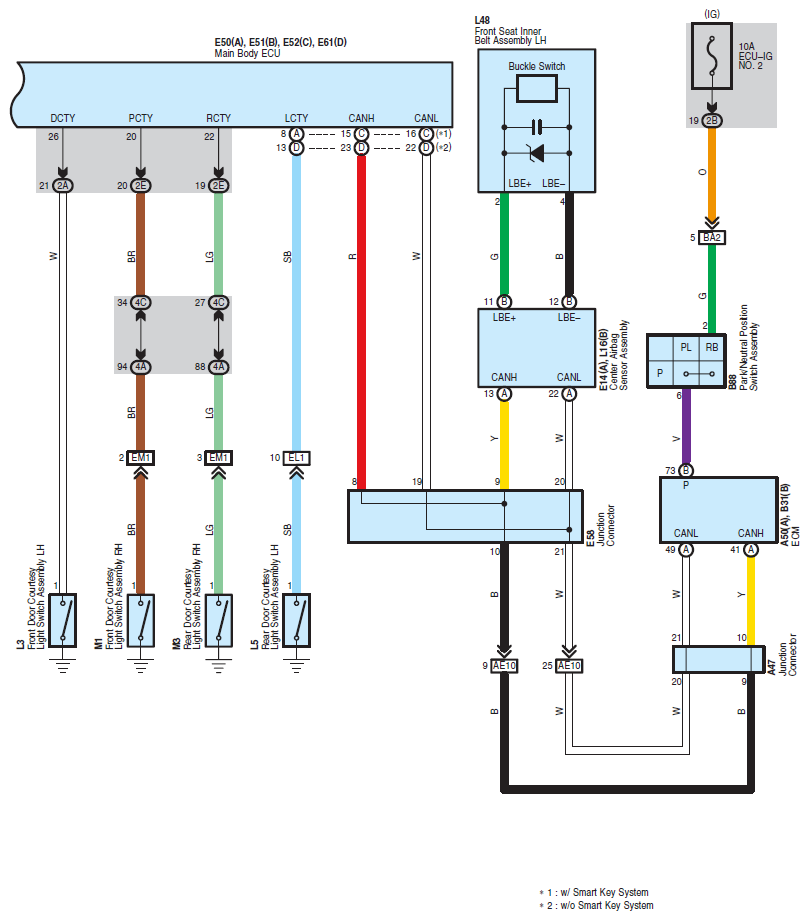

Fig 5: Door Lock Control (TMC Made) - Circuit Diagram (5 Of 5)
G07604837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
