Combination Meter (TMC Made): Notes

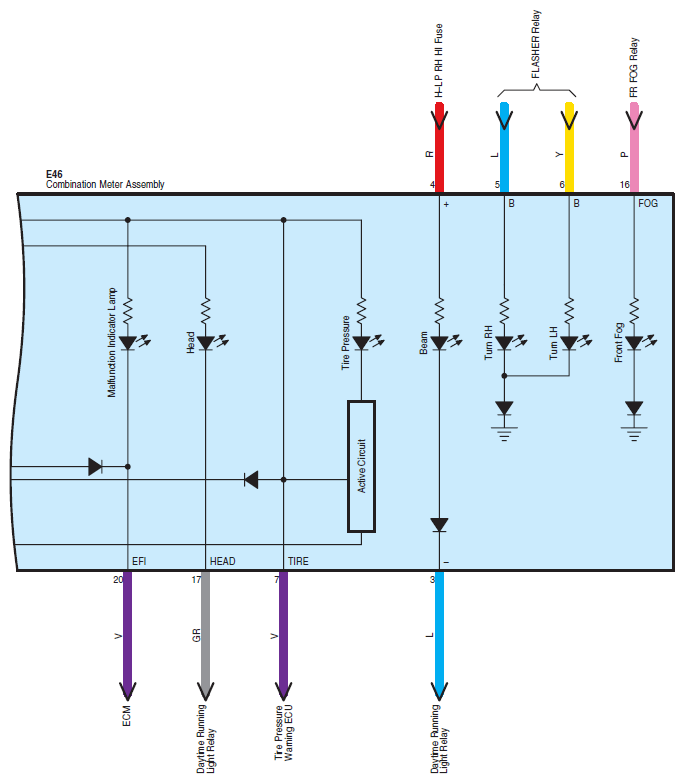

Fig 1: Combination Meter (TMC Made) - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

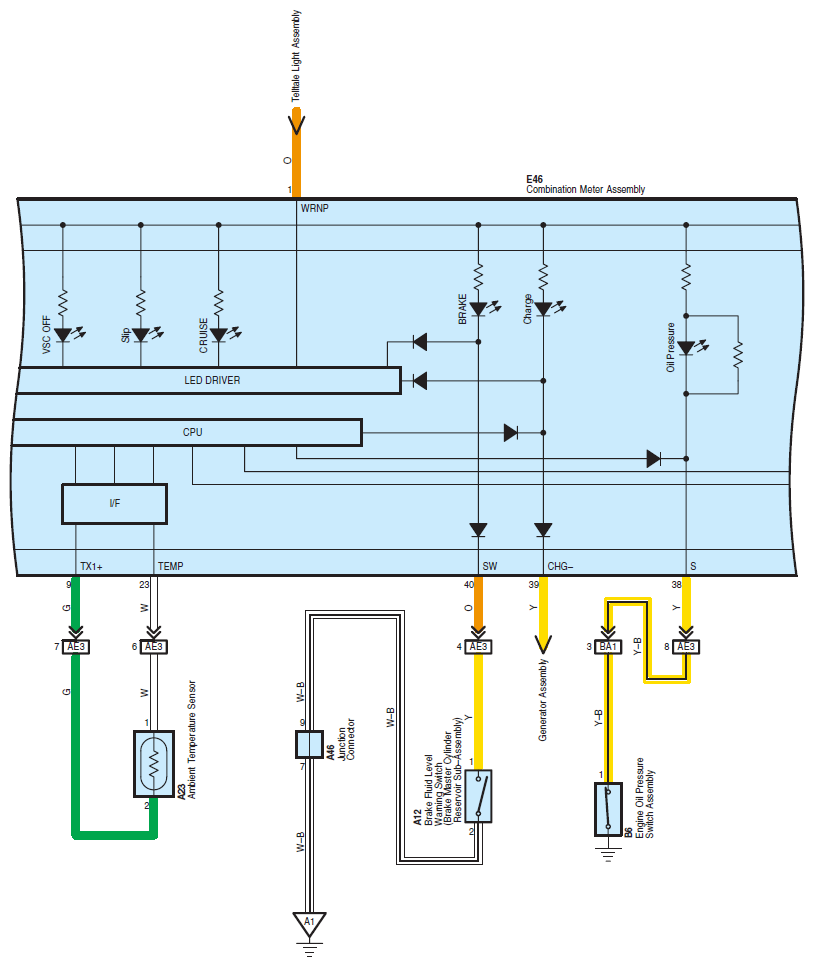

Fig 2: Combination Meter (TMC Made) - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

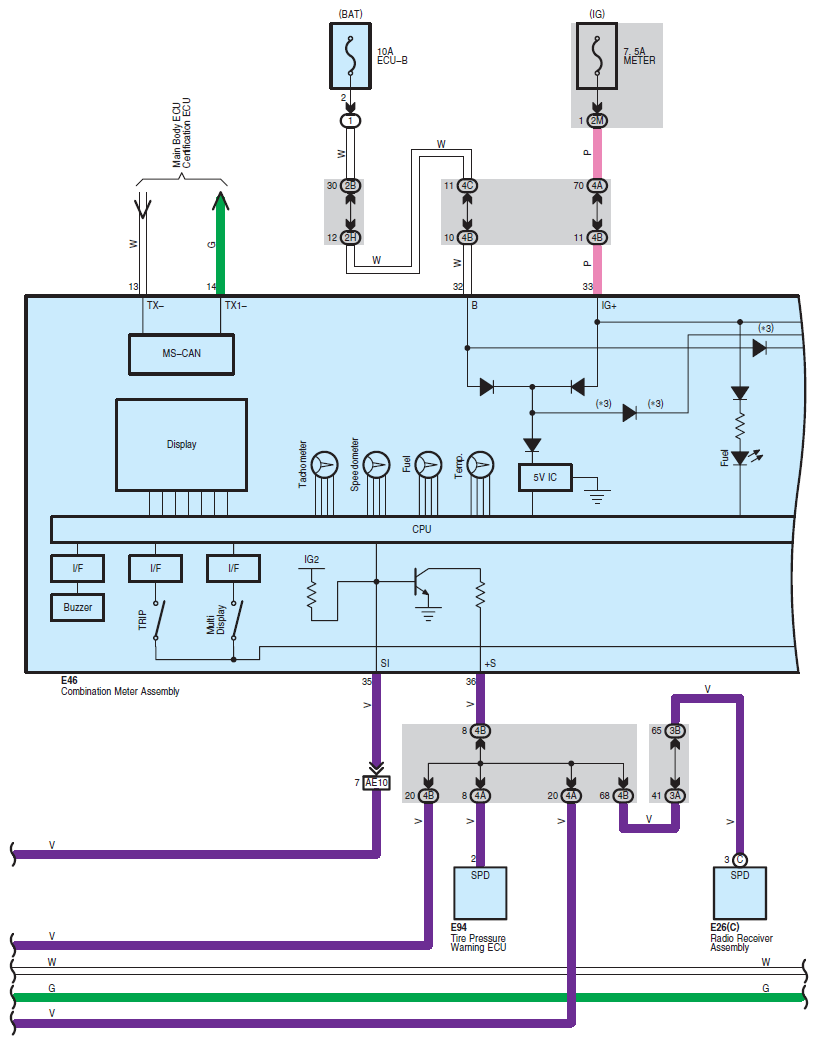

Fig 3: Combination Meter (TMC Made) - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

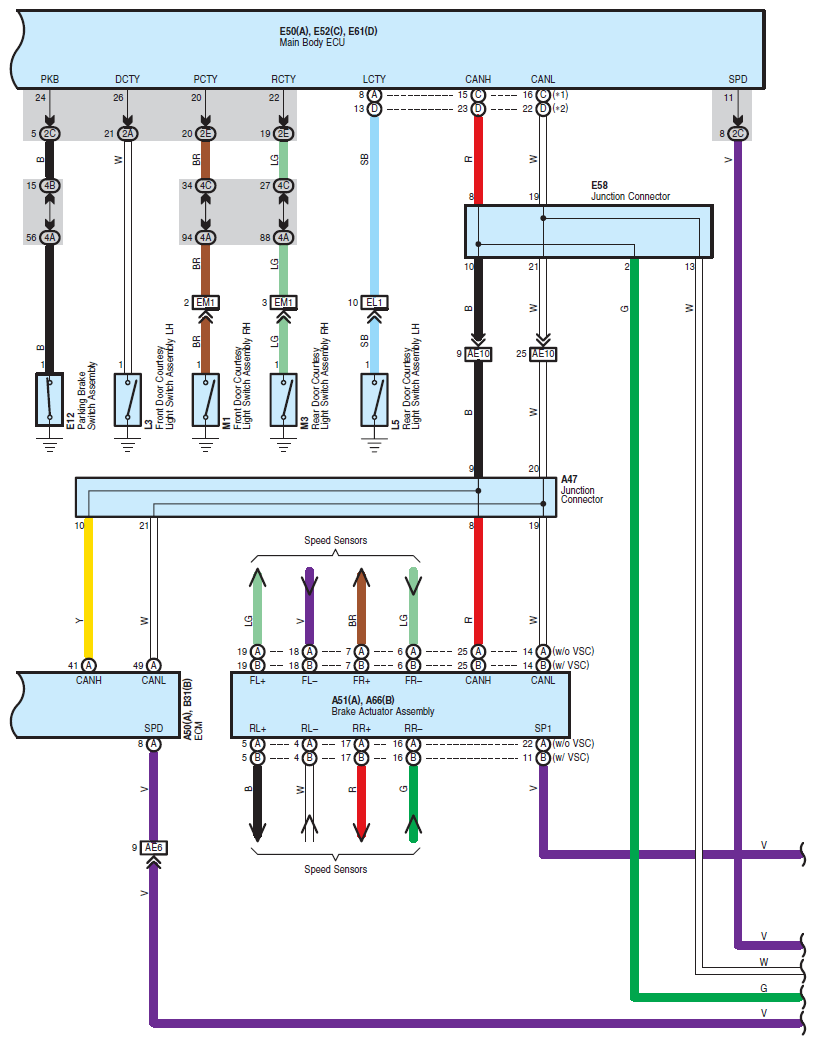

Fig 4: Combination Meter (TMC Made) - Circuit Diagram (4 Of 6)

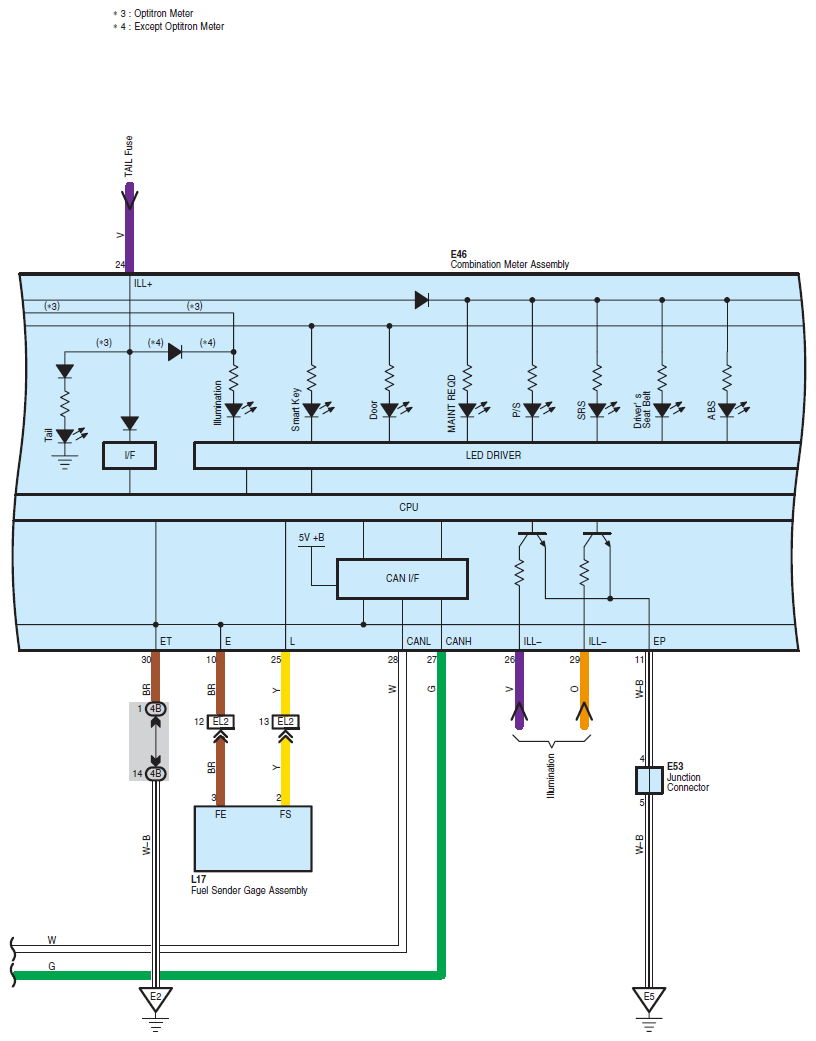

Fig 5: Combination Meter (TMC Made) - Circuit Diagram (5 Of 6)

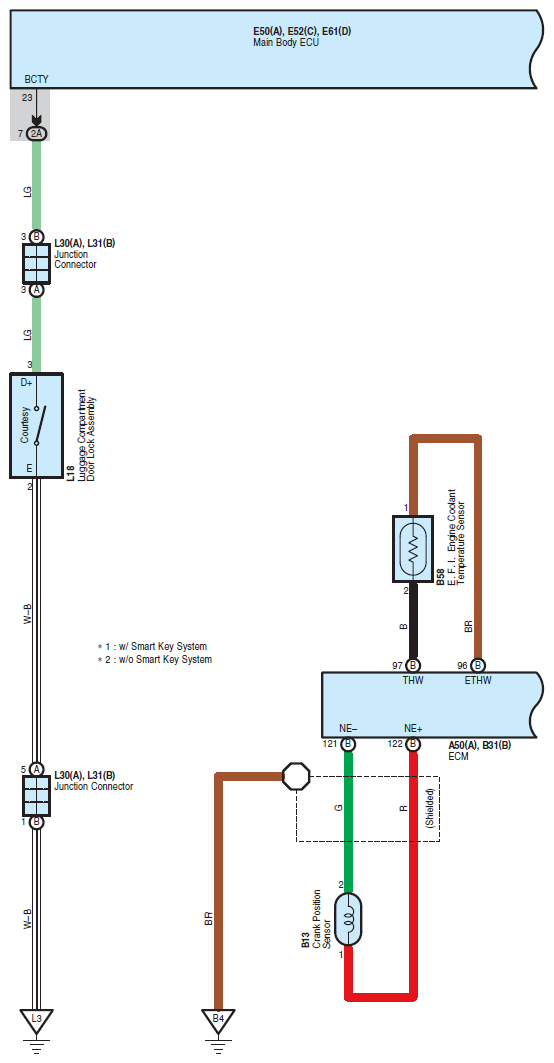

Fig 6: Combination Meter (TMC Made) - Circuit Diagram (6 Of 6)
