ABS Warning Light Remains ON: Wiring Diagram

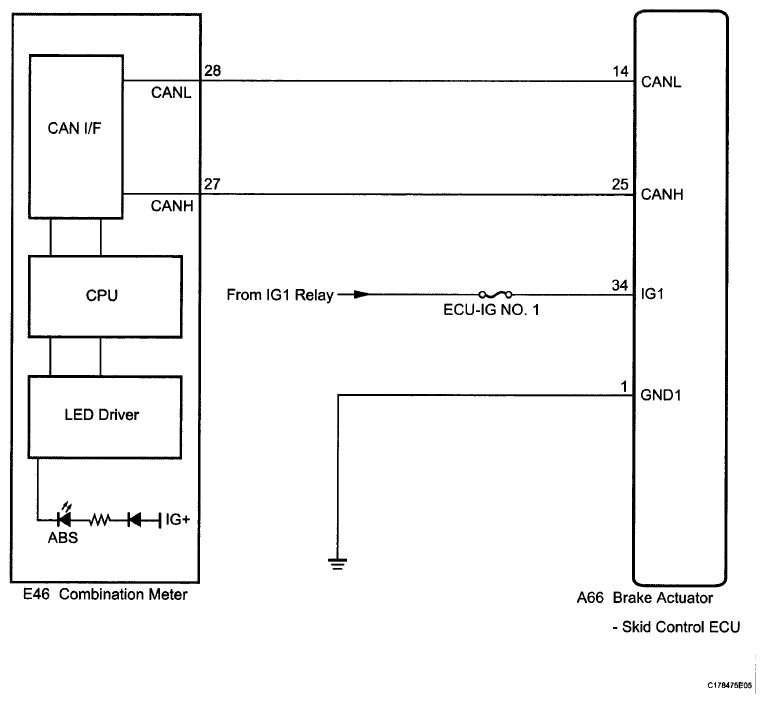

Fig 1: ABS Warning Light Remains On - Wiring Diagram

G06013975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
