Lumbar Switch: Components

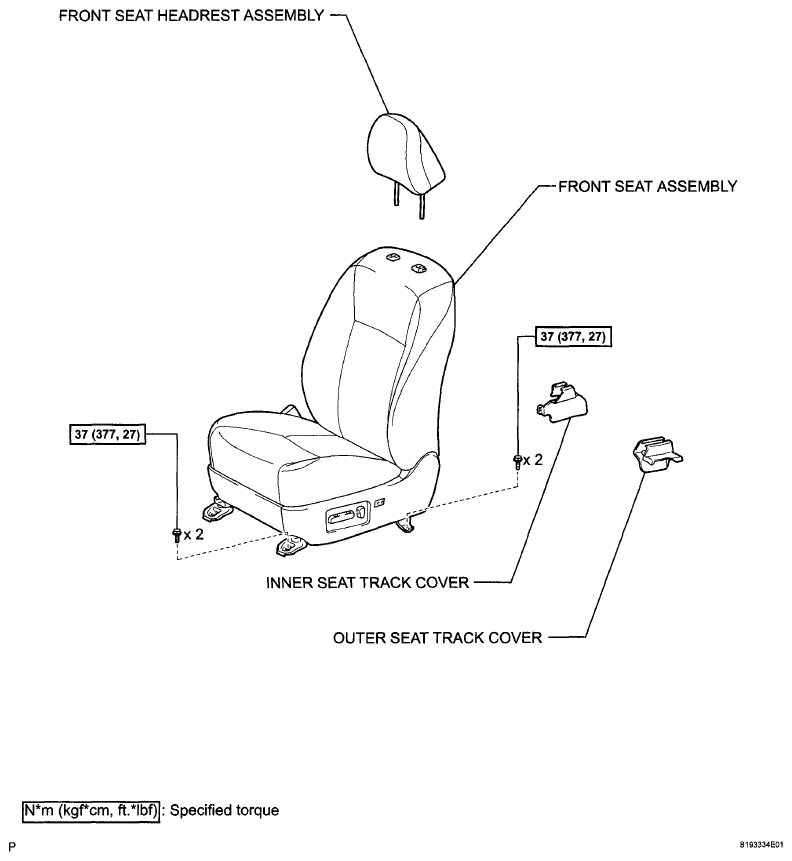

Fig 1: Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (1 Of 4)
G06015050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

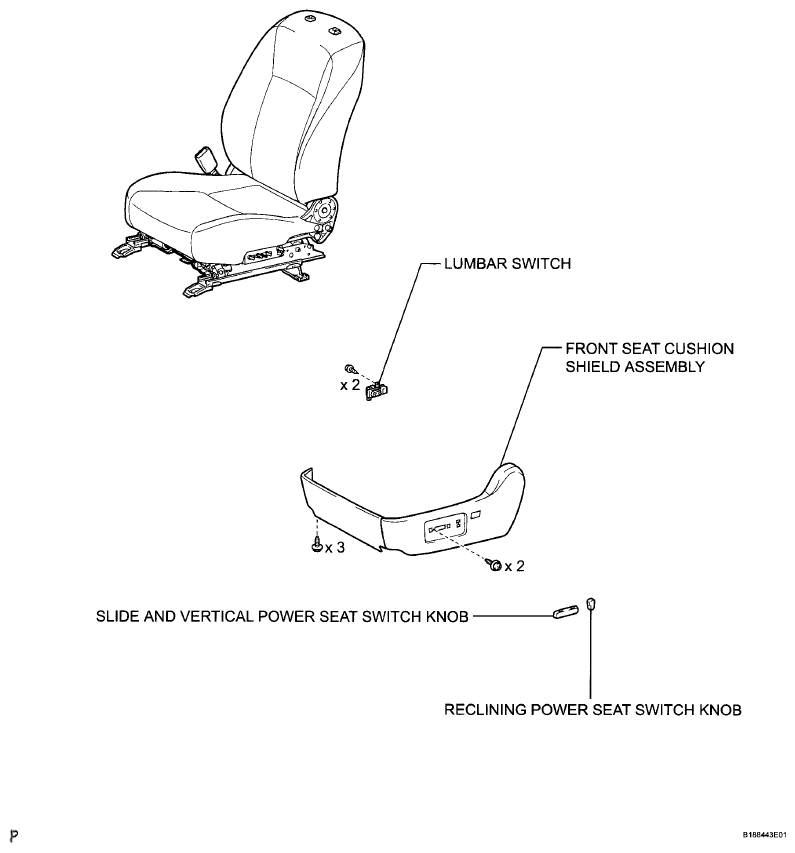

Fig 2: Lumbar Switch Replacement Components With Torque Specifications (2 Of 2)
G06015207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
