Lumbar Support Adjuster Assembly: Components

Fig 1: Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (1 Of 4)
G06015050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

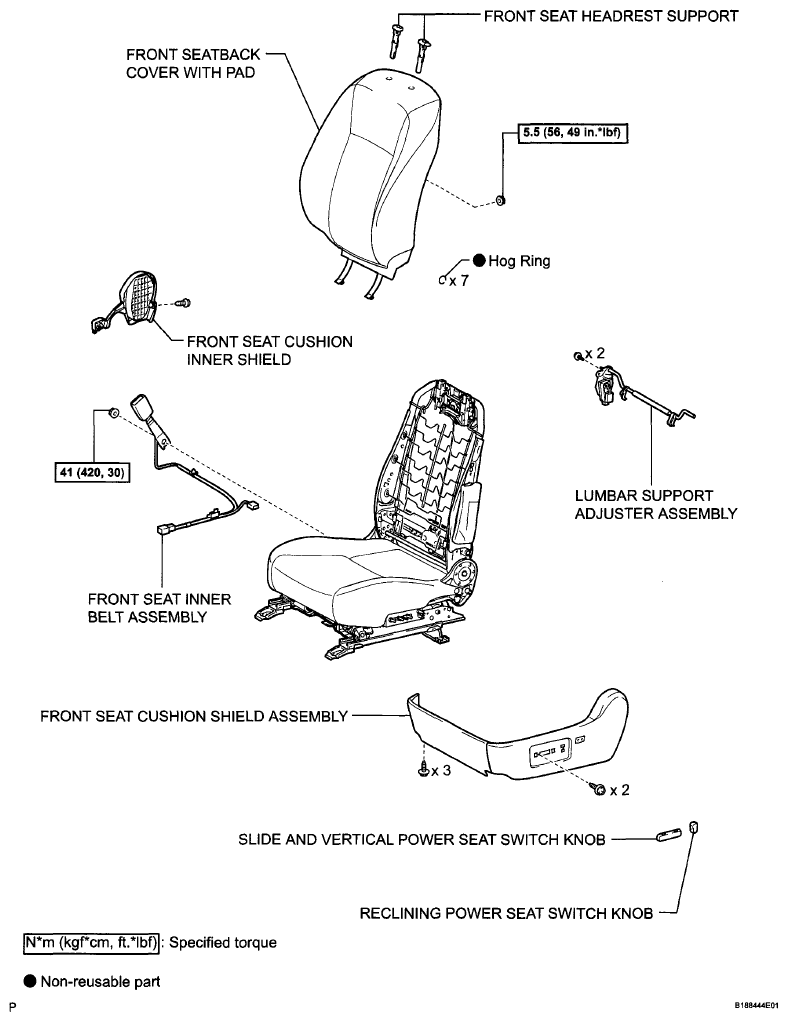

Fig 2: Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications (2 Of 2)
G06015212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
