Front Seatback Heater: Components

Fig 1: Front Seat Cushion Heater Replacement Components With Torque Specifications (1 Of 2)
G06014967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

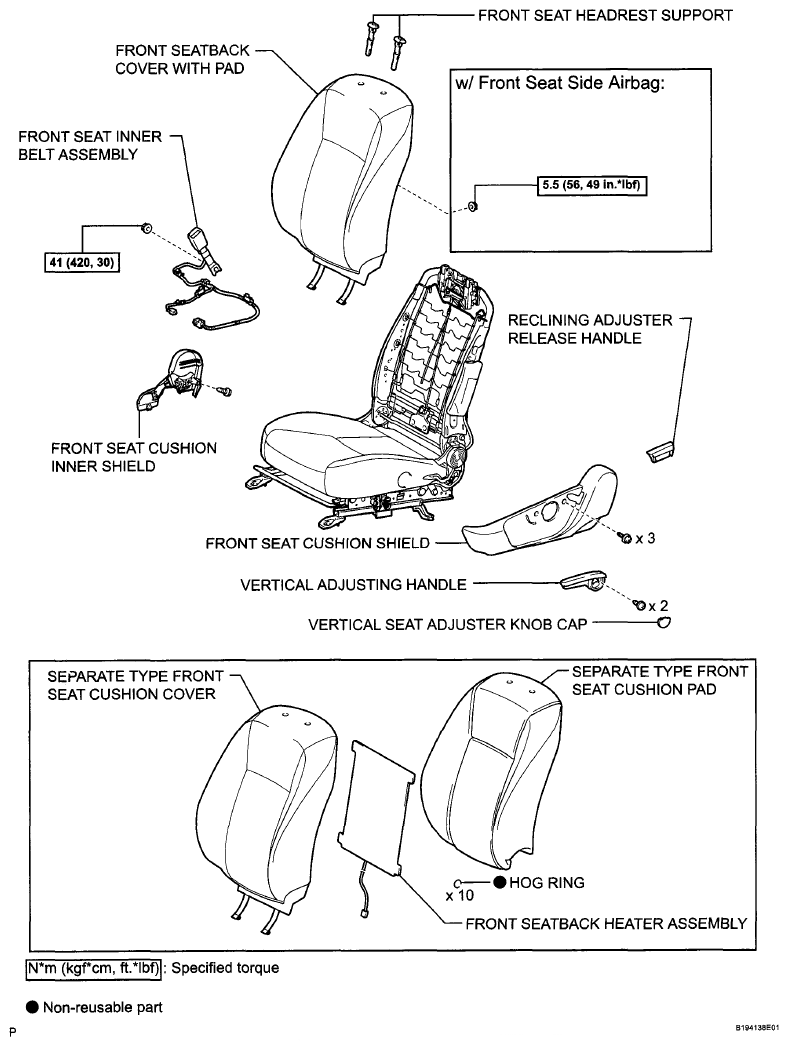

Fig 2: Front Seatback Heater Replacement Components With Torque Specifications (2 Of 2)
G06015221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
