Brake Control Power Supply: Components

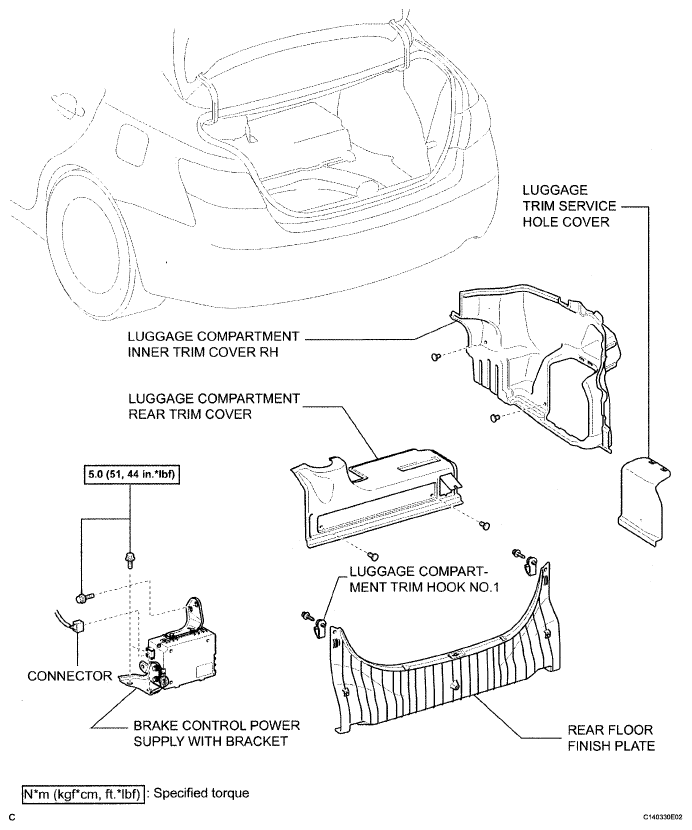

Fig 1: Brake Control Power Supply Replacement Components With Torque Specifications (1 Of 2)
G05011344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

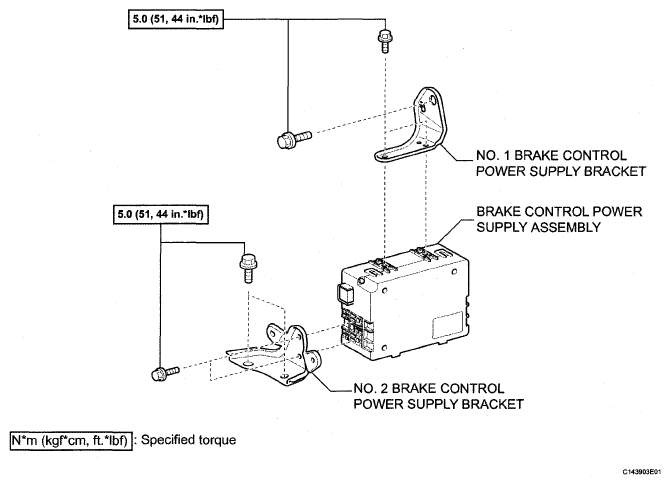

Fig 2: Brake Control Power Supply Replacement Components With Torque Specifications (2 Of 2)
G05011345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
