Home >> Toyota >> 2009 >> Camry Hybrid >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/Window Glass (Hybrid) >> Power Window Master Switch >> Components

Power Window Master Switch: Components

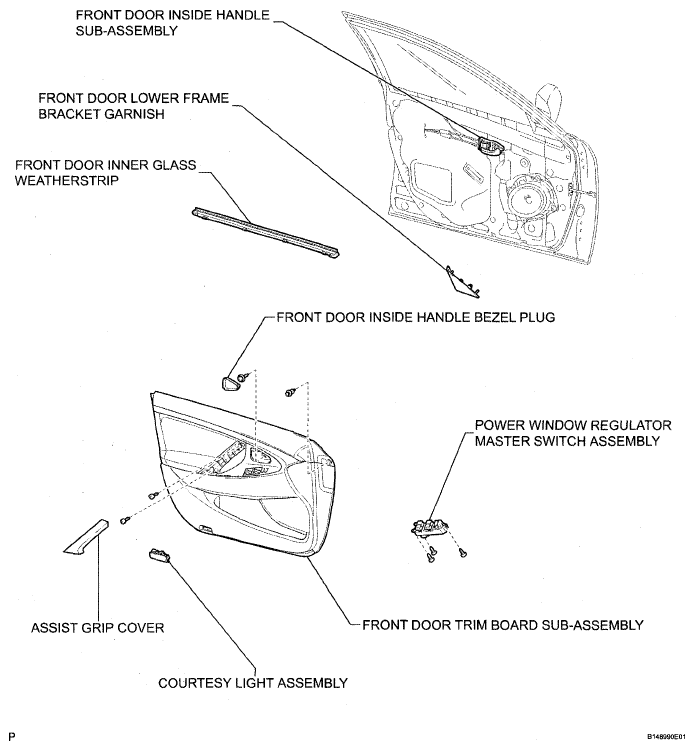

Fig 1: Identifying Power Window Master Switch Components

G05014907

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
