Driver Side Power Window Motor Circuit: Wiring Diagram

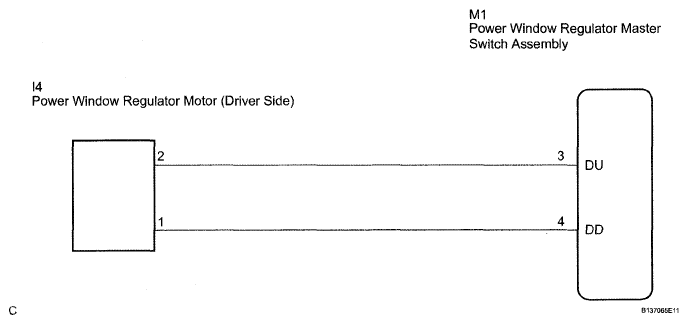

Fig 1: Driver Side Power Window Motor - Wiring Diagram

G05014895

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
