Inspection Procedure

  1. INSPECT POWER WINDOW REGULATOR MOTOR
    1. Remove the power window motor.
      1. Apply battery voltage to the motor connector according to the table below.
        NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
        Fig 1: View Of Power Window Regulator Motor
        G04967134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

    SPECIFIED CONDITION CHART

    Measurement Condition Specified Condition
    Battery positive (+) → Terminal 2
    Battery negative (-) → Terminal 1    		 Motor gear rotates clockwise
    Battery positive (+) → Terminal 1
    Battery negative (-) → Terminal 2    		 Motor gear rotates counterclockwise

    NG: REPLACE POWER WINDOW REGULATOR MOTOR

  2. CHECK WIRE HARNESS (WINDOW REGULATOR MOTOR - WINDOW REGULATOR MASTER SWITCH)
    1. Disconnect the M1 and 14 connectors.

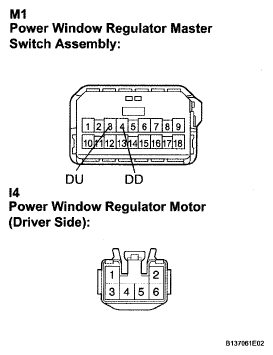

      2. Fig 2: Identifying M1 And 14 Connectors
      G05014897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

    RESISTANCE SPECIFICATION

    Tester Connection Condition Specified Condition
    M1-3 (DU) - l4-2 Always Below 1 Ω
    M1-4 (DD) - I4-1 Always Below 1 Ω
    M1-3 (DU) - Body ground Always 10 kΩ or higher
    M1-4 (DD) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
